Murata (DMS-20LCD-2-5-C) Voltmeter, DMS-20LCD Series, DC Voltage

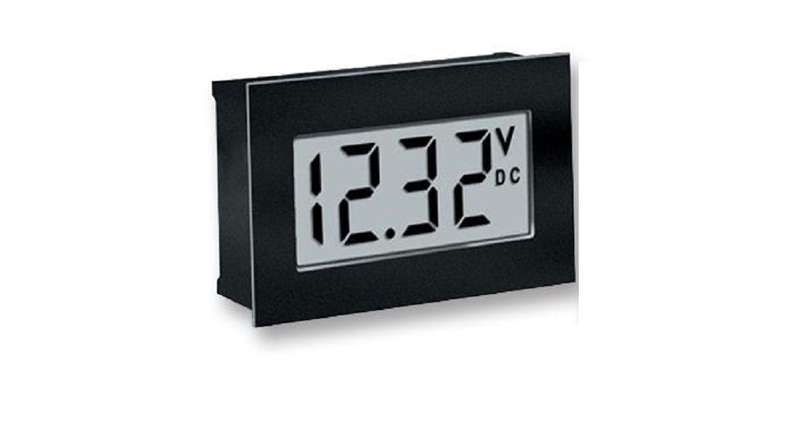

Voltmeter, DMS-20LCD Series, DC Voltage, -20V to +20V, 3.5 Digits, 4.75 V to5.25 VProduct InformationNo. of Digits / Alpha: 3-1/2Meter Function: DC VoltageMeter Range: -20V to +20VDigit Height: 9.4mmPanel Cutout Height: 21.34mmPanel Cutout Width: 34.04mmSupply Voltage Min: 4.75VSupply Voltage Max: 5.25VOperating Temperature Min: 0°COperating Temperature Max: 60°CProduct OverviewThe DMS-20LCD-2-5-C is a 3.5-digit LCD Display Digital Panel Voltmeter is epoxyencapsulated in a subminiature (1.38 x 0.88 x 0.43-inch), 12-pin DIP package.This completely self-contained, fully operational meter offers a combination ofruggedness, long-term reliability and component-like ease-of-use. It is anextremely accurate (±1 count) and are only slightly larger than their0.37-inch/9.4mm, enhanced-contrast, LCD displays. It incorporates a built-inbezel and are easily mounted in either panels or PC boards.Low-battery annunciator±20V Input voltage rangeAqua colour0 to 60°C Temperature rangeApplicationsAutomation & Process Control, Test & Measurement
