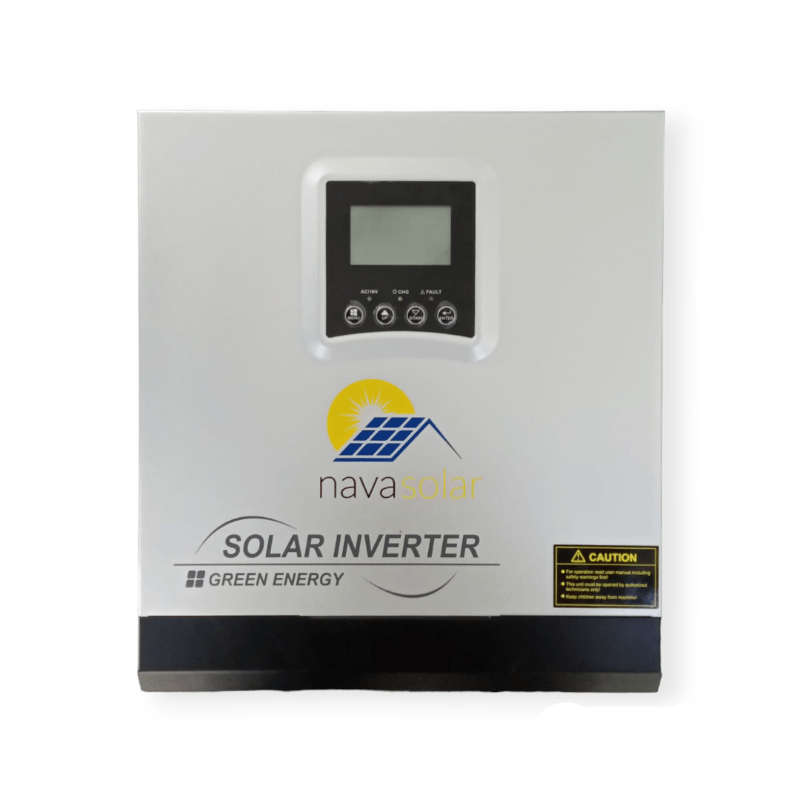

The Navasolar PV1800 is a high-quality solar inverter designed to efficiently convert direct current (DC) electricity generated by solar panels into alternating current (AC) electricity suitable for use in residential or commercial applications. With a power output of 3 kilowatts (kW), it is capable of handling moderate-sized solar systems.
The PV1800 utilizes advanced technology to maximize energy production and optimize system performance. It features a robust MPPT (Maximum Power Point Tracking) algorithm, which constantly monitors and adjusts the inverter's operating parameters to ensure that it extracts the maximum power from the solar panels under varying environmental conditions. This results in increased energy harvest and higher overall system efficiency.
Equipped with a compact and sleek design, the Navasolar PV1800 is easy to install and integrate into both new and existing solar installations. Its user-friendly interface provides intuitive controls and clear display of important system information, allowing users to monitor and manage their solar energy production effortlessly.
To ensure safety and reliability, the PV1800 incorporates comprehensive protection mechanisms. These include overvoltage protection, overcurrent protection, short-circuit protection, and temperature monitoring. These safeguards not only protect the inverter from potential electrical faults but also help safeguard the connected solar panels and the overall system.
The Navasolar PV1800 is engineered to be highly efficient, with a high conversion efficiency rating. This means that it can convert a large portion of the DC energy from the solar panels into usable AC electricity, minimizing energy losses and maximizing the return on investment for solar system owners.
Overall, the Navasolar PV1800 3kW solar inverter is a reliable, efficient, and user-friendly solution for harnessing solar energy. With its advanced features and robust construction, it offers an excellent option for residential and small commercial solar installations, enabling users to reduce their reliance on conventional energy sources and contribute to a greener and more sustainable future.
Pure sine wave output
Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
Built-in MPPT solar charge controller
MAX PV Array Open Circuit Voltage: 450V
Can provide the power to the load without battery
Combining solar system, AC utility, and battery power source to supply continuous power
Overload, short circuit and Deep discharge protection
Cold start function
Support USB, RS485 monitoring function
WIFI remote monitoring
Specifications:
Nominal Battery System Voltage: 24VDC
Parallel Capability: No
Operation Without Battery: No
Inverter Output ;
Rated Power: 3000W
Surge Power: 6000W
Wave Form: Pure Sine Wave
AC Voltage Regulation(Batt.Mode): (230VAC) 5%
lnverter Efficiency(Peak): 93%
Transfer Time: 10ms(typical)
AC Input:
Voltage 230VAC: 5%
Selectable Voltage Range
170~280VAC(for Personal Computer)
90~280VAC(for Home Appliance)
184~253VAC(VED4105)
Frequency Range: 50Hz/60Hz(Auto sensing)
Battery:
Normal Voltage: 24VDC
Floating Charge Voltage: 27.4VDC
Overcharge Protection: 30VDC
Solar Charger & AC Charger
Maximum PV Array Open Circuit Voltage: 145VDC
PV Array Voltage Range MPPT: 30~120VDC
Standby Power Consumption: 2W
Maximum PV lnput Power: 1500W
Maximum Solar Charge Current: 60A
Maximum Efficiency: 98%
Maximum AC Charge Current: 30A
Maximum Charge Current: 80A
Communication: USB/RS232/RS485(optional)
Mechanical Specifications
Machine Dimensions(HWD)(mm): 355272100
Package Dimensions(HWD)(mm): 390425215
Net Weight(kg): 7.4
Gross Weight(kg): 9.5
2 year warranty
