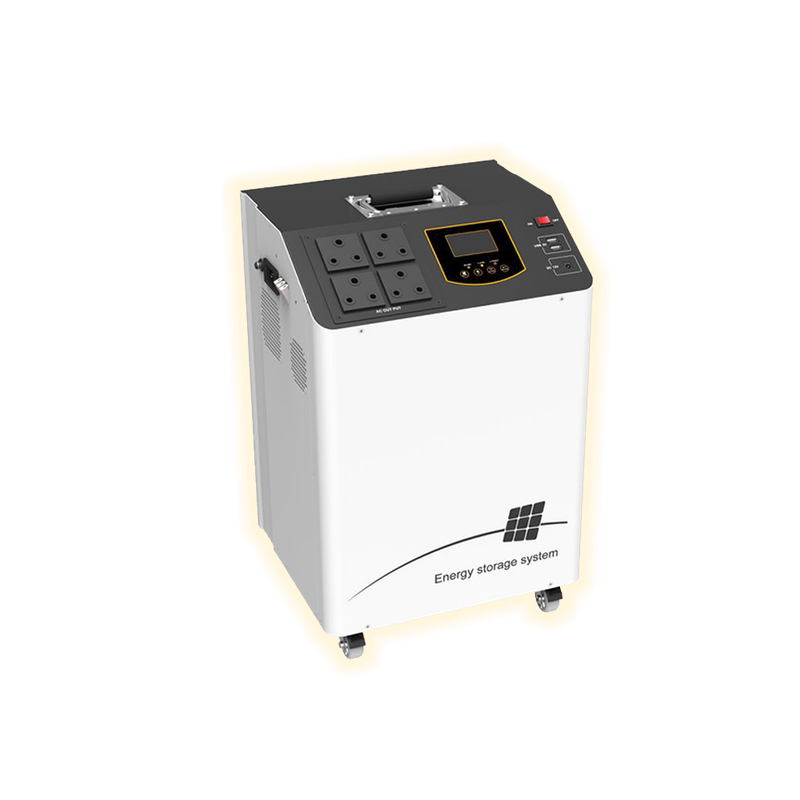

All-In-One Energy Storage Solar System
BP1800 Series
HBP 1800 series all-in-one energy storage solution, support 2KW output for different load appliances. It's based on the original cabinet design, stacked with solar energy storage lithium battery 2560wh, and built in battery protection system, fully retain the use of load power in applications of residentail, school, commercail and public utility area.
2000W - Pure Sine Wave Inverter
4000+ Charge Cycle
24/7 UPS Plug & Play Use
2 x USB ports for DC Load
Features higher capacities for greater compatibility with more power-hungry devices, and the latest in USB-C Power Delivery capable of charging larger USB devices like laptops.
Includes pre-installed solar charging optimization module that functions as a maximum power point tracker (MPPT), resulting in up to 40% faster charge times.
With LiFePO4 lithium cells, known for stability and safety, monitored by a state-of-the-art battery management system that prevents overcharge, over-current, and short circuiting.
Built in Multi safety protection that include short circuit, overload and over-temperature and error code reporting
Specifications
Model: NV-BP18-3024
Inverter:
Rated power: 2000W
Output voltage waveform: Pure sine wave
Output voltage regulation: 230Vac 5%
Output frequency: 50Hz / 60Hz ( 0.2Hz)
Peak efficiency: 90%
Nominal DC input voltage: 24Vdc ( 0.3)
Standby Consumption: < 25W
PV Input:
Max solar power input: 1800W
PV max charging current: 60A( 3A)
Combined charging current: 80A( 4A)
Max efficiency
PV array open circuit voltage: 145VDC
PV Array MPPT Voltage Range: 30~120V
AC Input:
AC input voltage: 230Vac 5%
Acceptable input voltage range: 90-280VAC
Nominal input frequency: 50Hz / 60Hz (Auto detection)
Transfer time: 10ms typical (UPS, VDE); 20ms typical (APL)
AC Charge
Charging current @ Nominal input voltage: 20A/30A ( 4A)
Charging Algorithm: 4-step (Li)
Output
AC output: 230Vac (Socket x 4pcs)
USB (5V 2.4A): DC output x 2pcs
USB (12V 1A): DC output x 1pcs
Lithium Battery:
Energy: 2560Wh
Nominal voltage: 25.6V
Battery capacity: 100Ah
Protection board:100A
Standard charging & discharge current: 50A
Operation temperature:
Charge 0~45
Discharge -10~60
Dimension:
Product Size (LxWxH) (mm) 351x300x539
Packing Size (LxWxH) (mm) 590x545x725
Net Weight (kg): 23
Gross Weight (kg): 32.8
What's in the box
1 x NV-BP18-2024 Inverter Trolley
