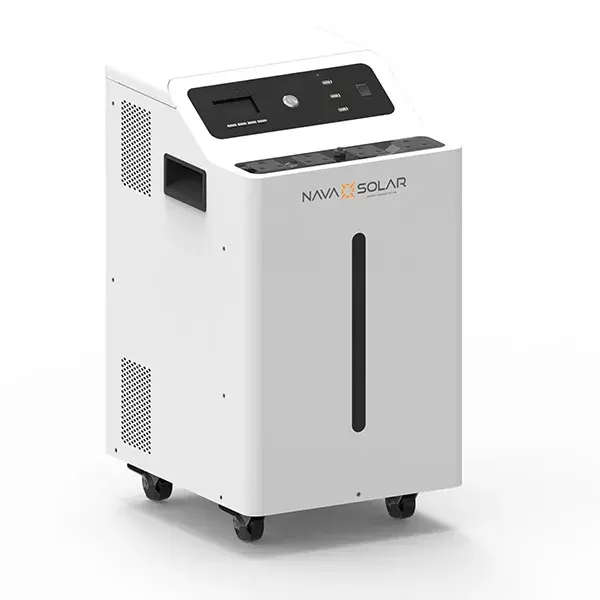

Navasolar TI-3052 Trolley Inverter 3KW/5.12KWH Lithium Battery

INFO

• Rated Inverter Power: 3000VA/3000W
  Voltage: 230Vac+/-5%
  Voltage Range: 154~264Vac
  Frequency Range: 40~70Hz
  Surge Power: 3000VA
  Output Type: 4* AC Outlets, 3* USB PD Ports
  Transfer Time: 20 ms (Typical)
  Maximum PV Array Power: 1500W
  Capacity: 5120Wh (25.6V 200Ah)

• Mobile All-In-One ESS
  Mobile and Convenient - Plug and Play

  Features:
  Built-in off grid solar inverter and lithium battery modules
  Pre-programmed system with plug and play
  Output power: 3kW
  5.12kWh
  Flexible enough to power most home or office appliances to cover load shedding
  Mobile on wheels for power on the go
  Enhanced surge/lighting protection
  AC Breakers and DC fuse protection
  Combined AC and solar chargers
  Max 1C charging current for quick recharge (1-2 Hours)
  Equipped with RS232 and USB communication ports for remote monitoring

  Mobile All-In-One Energy Storage System, Enjoy The Life Without Load Shedding

  Specifications:
  Model: NV-TI-3052
  Rated Inverter Power: 3000VA/3000W

  Input:
  Voltage: 230Vac+-5%
  Voltage Range: 154-264Vac
  Frequency Range: 40-70Hz
  AC Input Connection: IEC C20
  PV Input Connection: PP75

  Output:
  AC Voltage Regulation (Batt. Mode): 230VAC+-5%
  Surge Power: 3000VA
  Efficiency (Peak): 93.50%
  Transfer Time: 20 ms (Typical)
  Waveform: Pure Sine Wave
  Output Type: 4 x AC Outlets, 2 x USB PD Ports (QC3.0)

  Solar Charger and AC Charger:
  Solar Charger Type: MPPT
  Maximum PV Array Power: 1500W
  Maximum PV Array Open Circuit Voltage: 30-115Vdc
  Maximum Solar Charge Current:60A
  AC Charge Current: 40A
  Maximum Charge Current: 100A

  Battery:
  Capacity: 5120Wh (25.6V 200Ah)
  Nominal Voltage: 25.6Vdc
  Charging Voltage: 27.6V
  Max Continuous Discharging Current: 100A

  Communication:
  Communication Ports: USB/RS232 (Baud Rate2400)

  Protection:

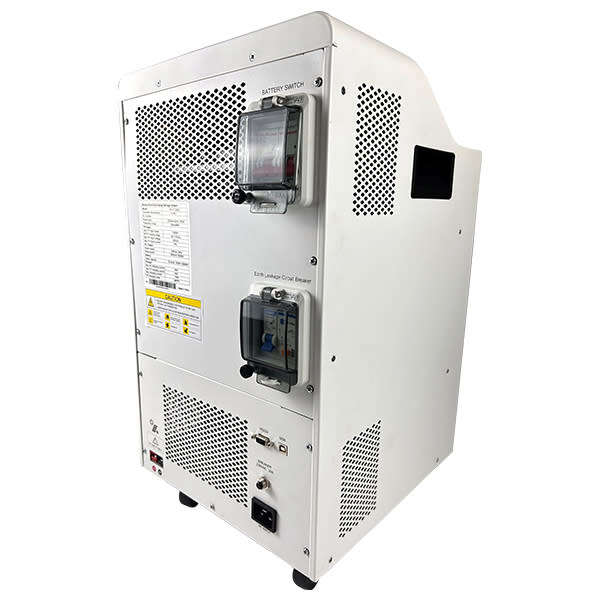

  Protection Type: AC Input/Output Breakers, Battery Switch, Earth Leakage Circuit Breaker

  Environment:
  Humidity: 20%-95% (No Condensing)
  Storage Temperature: -15 - 60
  Operation Temperature: 0 - 40

  Physical:
  Dimension (net), D x W x H (mm): 330x380x605
  Dimension (package), D x W x H (mm): 465x385x677
  Net Weight (kg): 56.94
  Gross Weight (kg): 58.85

  What's in the box
  1 X NV-TI-3052 Inverter Trolley
