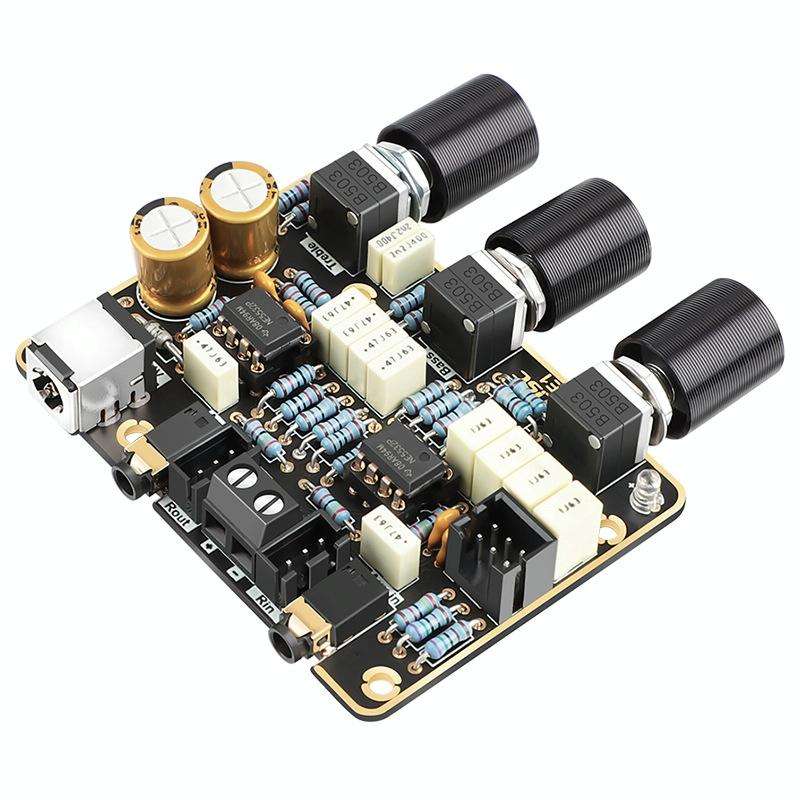

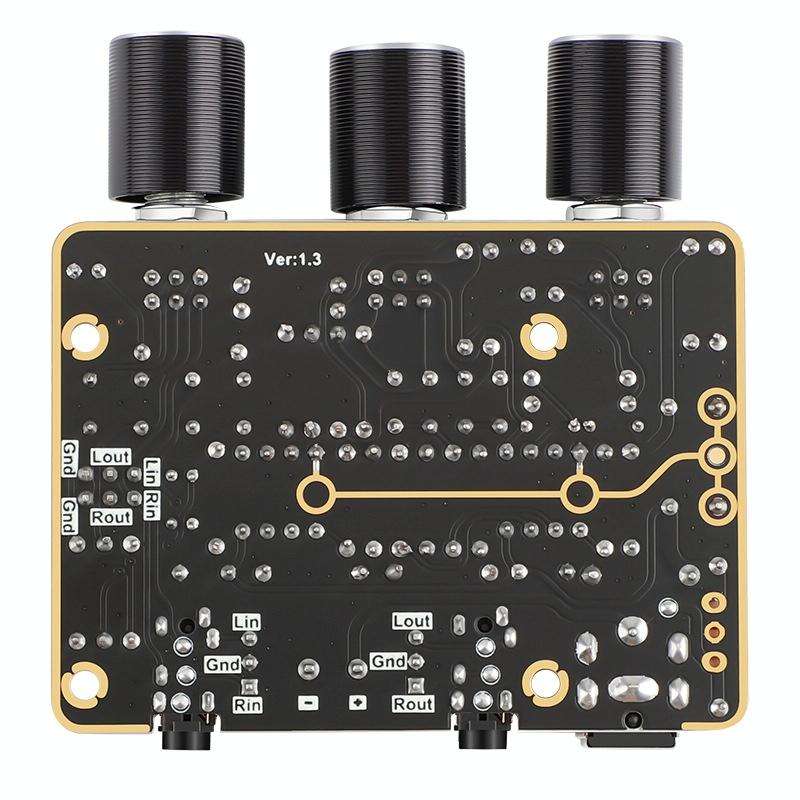

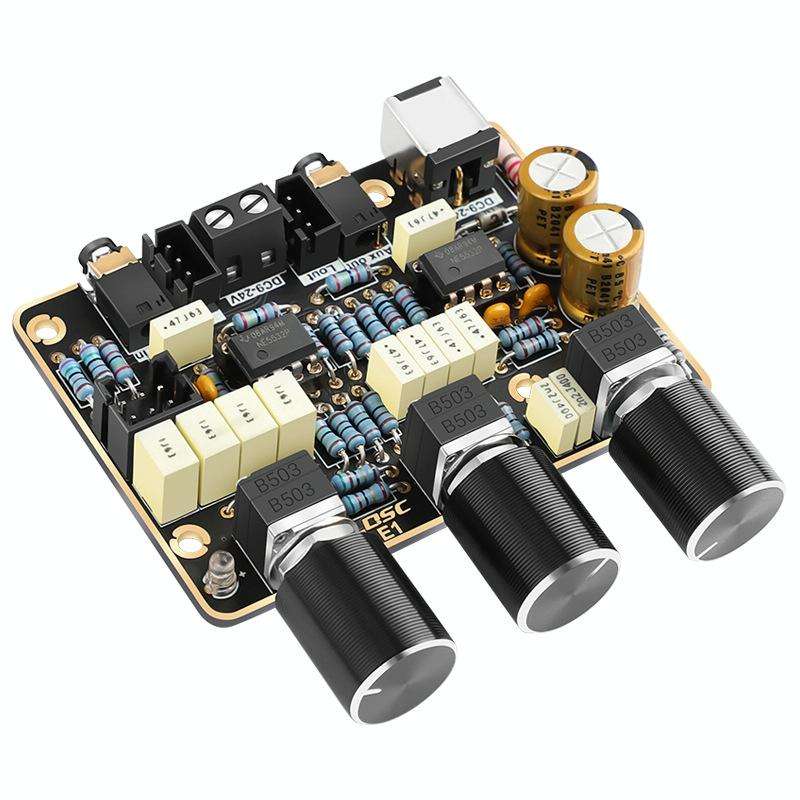

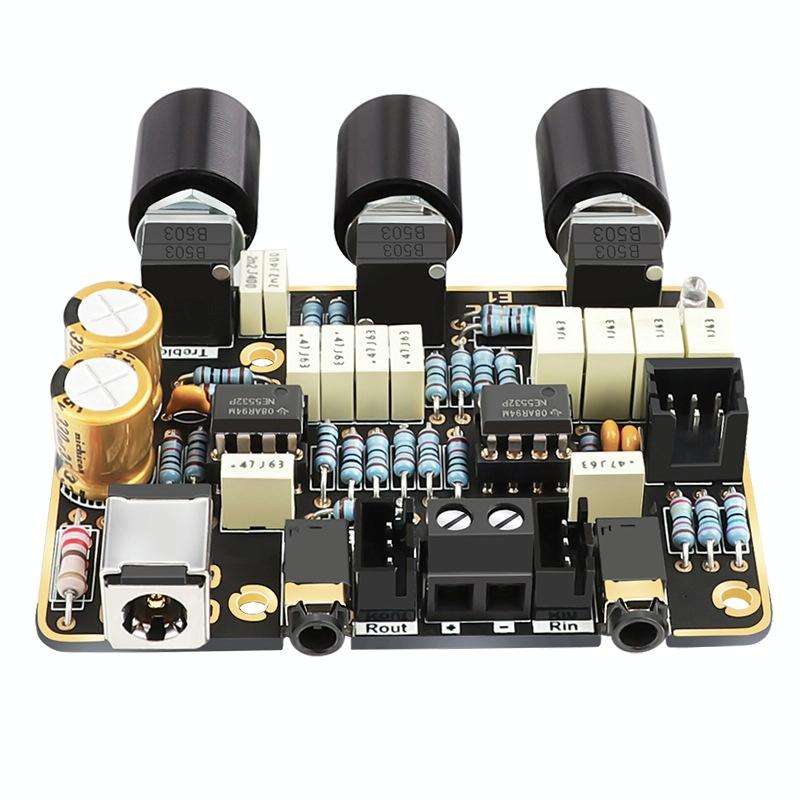

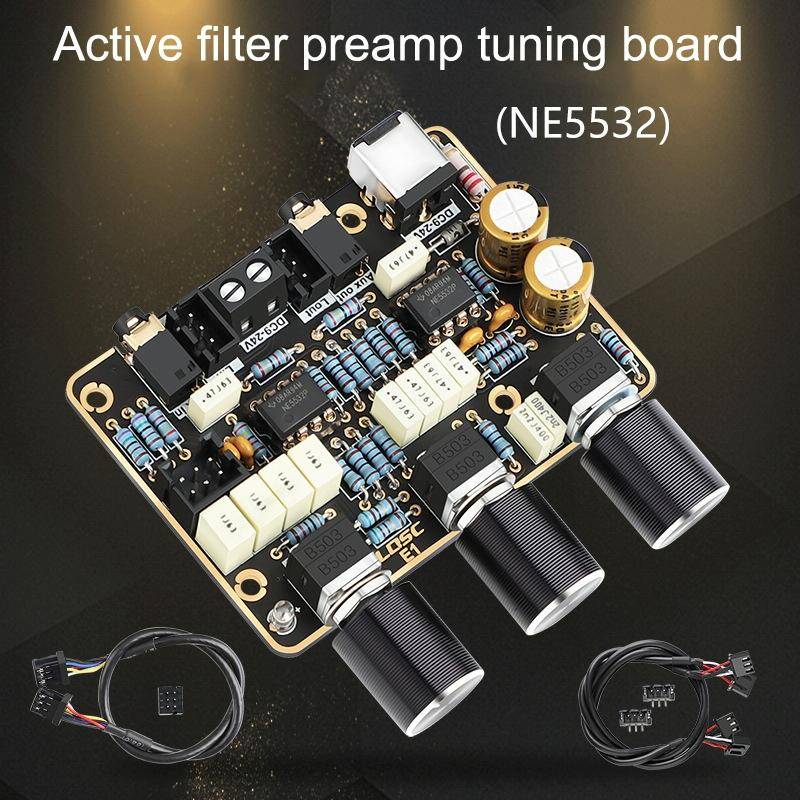

NE5532 Tuner Plate Active Filter Amplifier Board HIFI Front Module Universal Dual Operation Ampli...

New 100 available
R513.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
TBD06032704
Bob Shop ID
621633342

1. Use NE5532 chip, can replace OP275, AD828, NJM4558, TL072 and other general-purpose dual op-amps

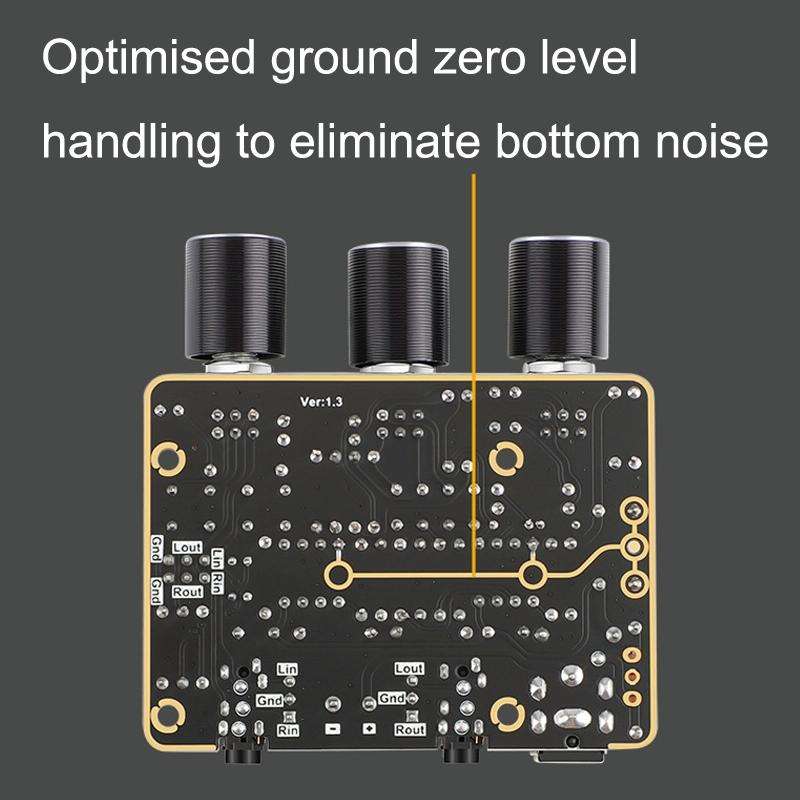

2. Low quiescent current and noise suppression
3. Bass: 100HZ/80DB gain adjustment
4. Tweeter: 10KHZ/80DB gain adjustment
5. Frequency response: 20-20000HZ
6. Signal to noise ratio: 98dB

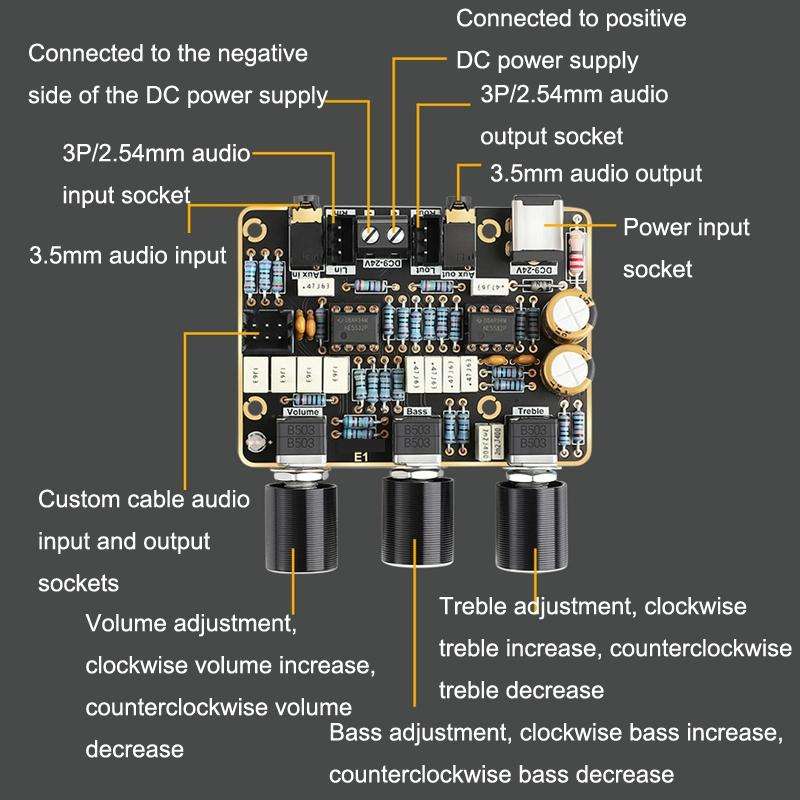

7. Supply voltage: DC9-24V (5 x 2.1mm core input, 2P chassis input)
8. Rated power 2x770mW stereo (24V/32 ohms) can be connected to loads above 32 ohms
9. Output method: 3.5mm audio jack
10. Input method: 3.5mm audio terminal, 3P 2.54mm terminal block, 6P 2.5mm chassis
11. PCB: 72x53mm
12. Overall: 72x53x15mm
13. Potentiometer knob opening: 7mm
14. Distance between mounting holes: 47.58x36mm
15. Net weight: 54g
