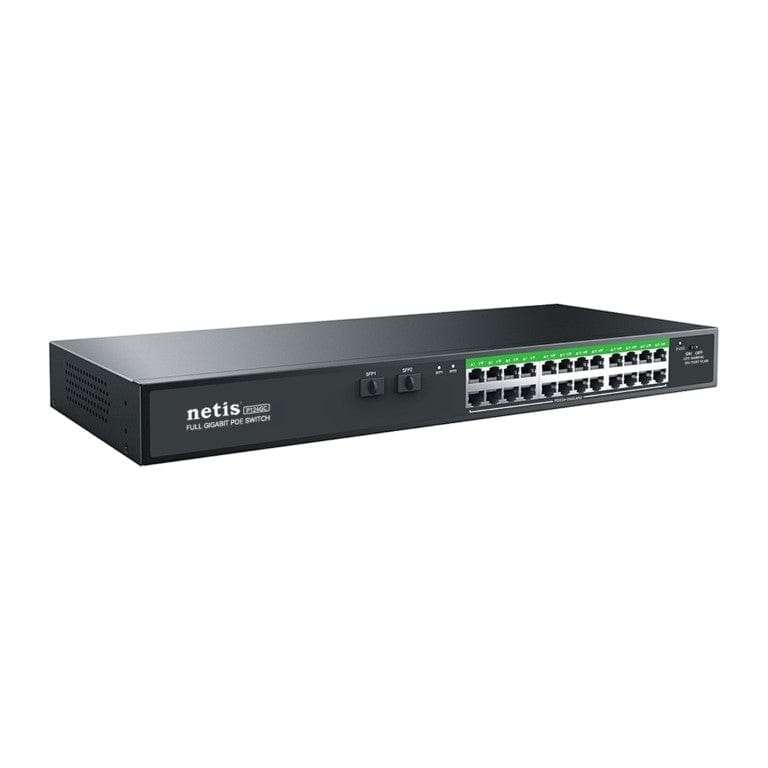

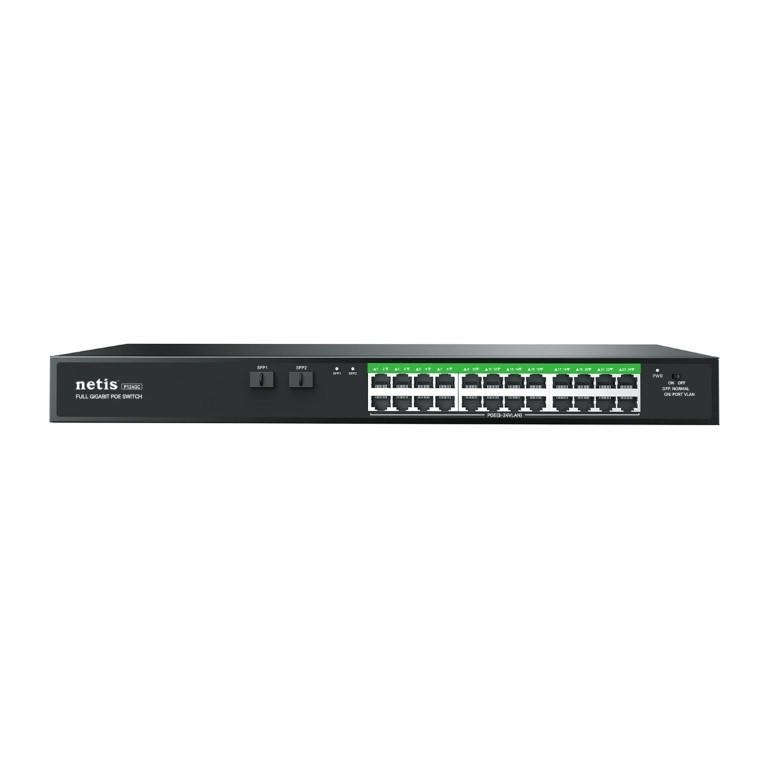

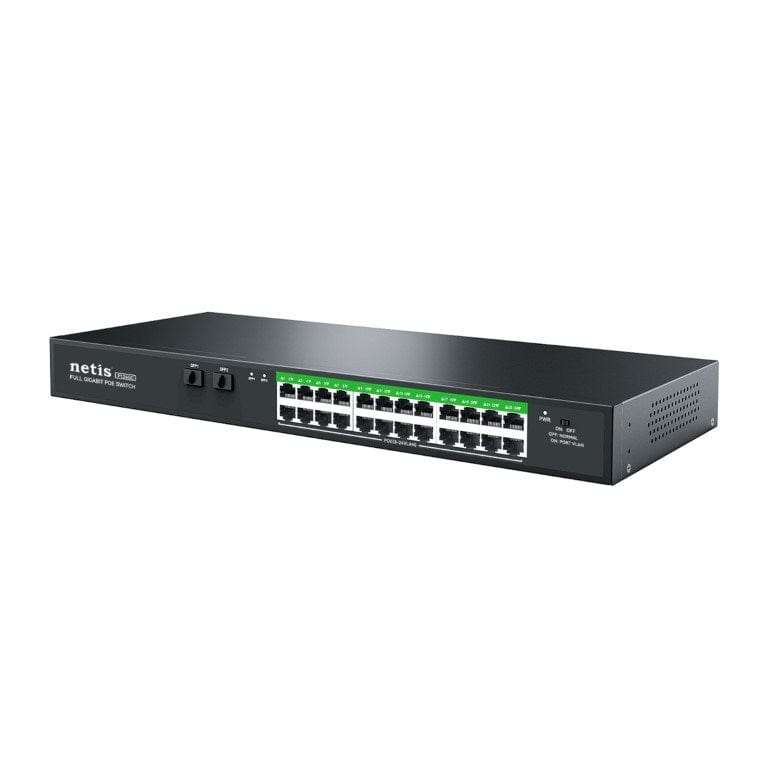

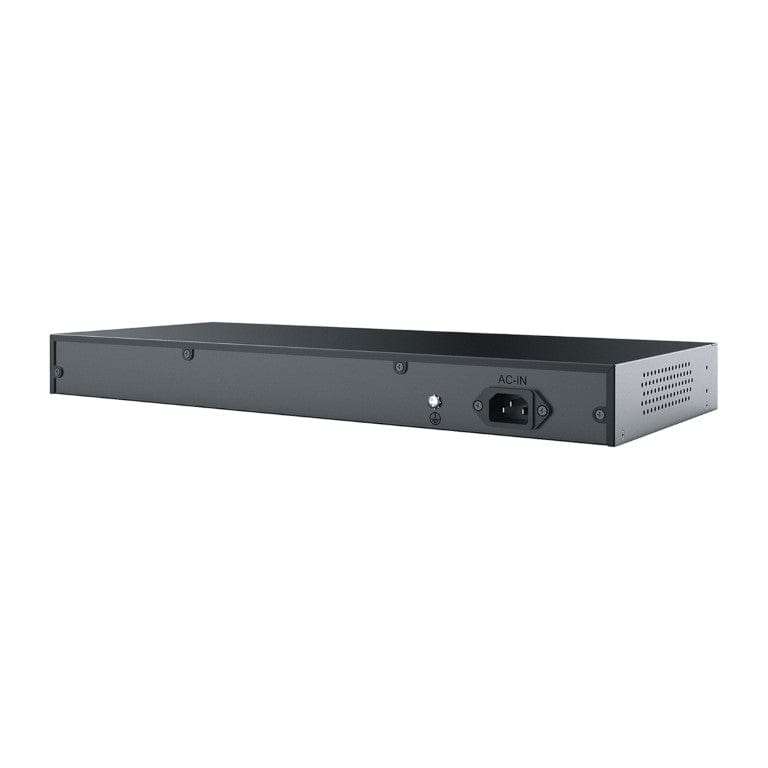

Netis P124GC 24-port GbE PoE Switch with 2x SFP ports

Netis P124GC is a 26 Ports standard POE switch that provides 24x GE POE ports , 2x SFP Up-link ports. Ports 1~24 features POE power supply capability and can be used as Power over Ethernet devices. The power supply port can automatically detect and recognize the powered device that complies with the IEEE 802.3af/at standard and supply power through the network cable. 2x SFP up-link ports are compatible with both optical fiber or network cables with different module, gigabit transmission rate ensure a smooth transmission for NVR or up-link routers. P124GC is a most powerful solution for HD security network and high speed wireless network systems.

Features

• Supporting 802.3, 802.u Faster Ethernet, IEEE 802.3ab 1000BASE-T
• Supports POE IEEE 802.3af/at compliant Powered Device (PD)
• Modes: Normal switch mode/Watch dog model(automatically manage CCTV cameras power supply)/VLAN model
• Ports 1~24 gigabit ports features POE power supply capability and can be used as Power over Ethernet devices; 2x 1000Base-X SFP.
• Support full duplex based on IEEE802.3x and half duplex based on Backpressure
• Auto MDI/MDIX crossover for all ports
• Support non-blocking wire speed forwarding
• MAC address auto-learning & auto-aging
• Steel case, the total POE power budget of 360W
• Just Plug and Play

Technical Specification

• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3i 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• IEEE 802.3af/at, Power over Ethernet
• IEEE 802.3x Flow Control

• Ethernet: 10Mbps(Half-duplex); 20Mbps(Full-duplex)
• Fast Ethernet: 100Mbps(Half-duplex); 200Mbps(Full-duplex)
• Gigabit Ethernet: 2000Mbps(Full-duplex)

• Single port maximum power 30W
• Whole switch maximum power 360W
• Supporting over-current, over-voltage and short-circuit protection
• Supporting Soft Start of High Power PD
• Support sequential boot-up
• Power Supply Pin:12+/36-
• 100-240V 4.5A Max(Input)
• 52V 7A Max(Output)

• 1000BASE-T : Cat5e or better UTP(100m)
• 100Base-TX: Cat 5e or better UTP/STP(100m)
• 10Base-TX: Cat 5e or better UTP/STP(250m)
