Cable Tester Material Length Tester Wire Locator Poe Tester Cable Material Tester With Lithium Battery
Network Cable Tester Cable Material Lan Cable Length Tester PoE Tester
The cable tester is an advanced device used for complex network cabling tests.
It is especially useful when powering network devices with existing infrastructure is needed.
The device is equipped with a clear, backlit LCD display.
The tester enables measuring the resistance of the connected wire and informs about the maximum length at which a device powered by PoE can be connected with a given cable.
Tested cabling RJ45,
RJ11,
BNC
Main Functions :
Measure the cable material & resistance (for CAT5E, CAT6E & Non-Standard land cable)
Trace and locate RJ45, and RJ11 Coaxial cables and electronics without AC current noise.
Measure the distance that a cable can provide PoE
Measure Lan cable length and physical status;
Wiremap for the RJ45 Coaxial cables (open, short, cross)
Measure cable length for Lan cable and coaxial cable, up to 2000M
PoE function: identify which pins are providing power.
Identify telephone cable condition (Tip / Ring ) and polarity test (Anode / Cathode);
Power system: 3.7V 1400mAH rechargeable lithium batteries?
Functionality
Location of the damage site,
Cable length measurement,
Detection of short circuits; interruptions; reverse connections,
Measurement of the distance to damage,
Temperature compensation,
Sound signalling
Wiring tests cable length,
Connection map,
digital pair finder with generator,
Cabling Resistance
Cable length measurement 10รท1000m
Measurement of the distance to damage yes
Ergonomics big and clear LCD display,
Automatic shutdown,
Long operating time
Power 1400mAh battery,
Rechargeable by micro USB
Dimensions 185x80x32 mm (main),
218x46x29 mm (receiver)

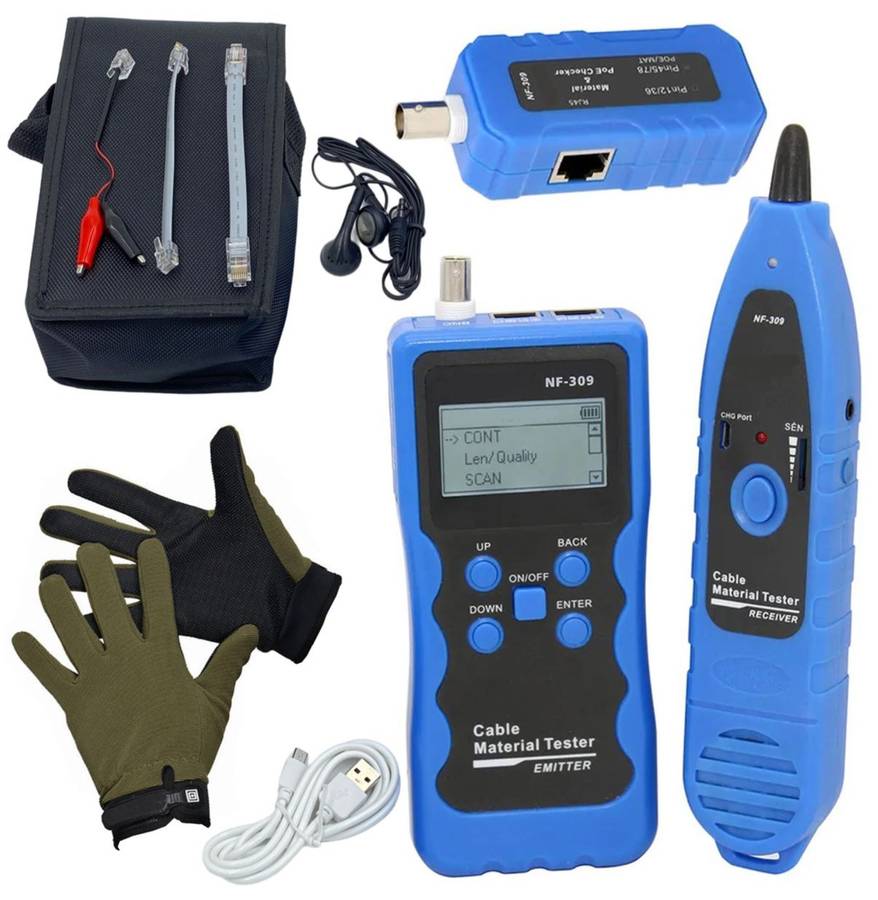

What's in the box
1 x Transmitter
1 x Receiver
1 x Remote
1 Set Telephone Cable Adapter
1 x USB Charging Cable
1 Set of crocodile clips
1 Set connectors
1 x Carry case
1 x Gloves
