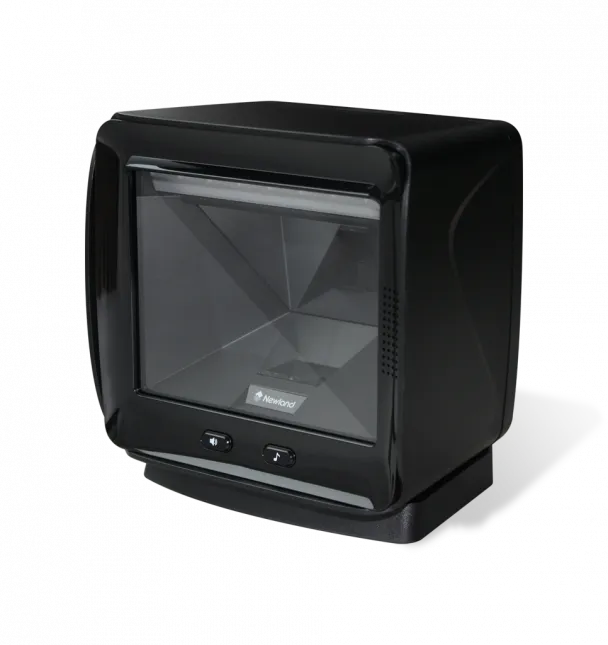

Newland FR80 Salmon 2D CMOS Mega Pixel Large window vertical desktop scanner with "L" mounting bracket ~ 3 mtr USB cable and mu
Newland FR80 Salmon 2D CMOS Mega Pixel Large window vertical
Description
The point of sale (POS) system is the heart of any retailer. It's the touch point with shoppers, who expect an increasingly fast and engaging experience. The FR80 Salmon drives transactions and loyalty by combining all the features you need for a plug-and-play manned or self-service counter.
Performance
Image Sensor 1280x1080 CMOS
Illumination Red LED (614nm-624nm)
Depth of Field EAN 13 (13mil) 0mm-180mm
Minimal Print Contrast >15%
Scan Angle Roll 360°
Scan Angle Pitch ±55°
Scan Angle Skew ±50°
Field of View Horizontal 42.4°
Field of View Vertical 36°
Scan Modes Advanced sense mode
Motion Tolerance 3.5m/s
Data Capture
1D All major 1D symbologies, including EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN 128, RSS, Interleaved 25, ITF 14, ITF 6, Standard 25, Matrix 25, COOP 25, Industrial 25, Plessey, MSI Plessey, Code 11, Code 93, Code 49, Code 16K.
2D All major 2D symbologies, including PDF417, QR Code, Data Matrix, Chinese Sensible Code, Micro PDF417, GM Code, Micro QR, Code One.
Physical
Dimensions (mm) Without base: 151 (W) x 141.5 (H) x 97.5 (D) mm; With base: 151 (W) x 156.5 (H) x 108.5 (D) mm
Weight 542g (without base), 678g (with base)
Interfaces RS-232, USB
Notifications Beep, LED indicator
Input Voltage 5 VDC±5%
Current @ 5VDC Operating 500mA (typical)
Current @ 5VDC Standby <100mA
Power Consumption 2W (typical), 2.5W (max.)
Environmental
Operating Temperature -20°C to 50°C (14°F to 122°F)
Storage Temperature -40 to 70 (-40°F to 158°F)
Humidity 5% to 95% (non-condensing)
Electro Static Discharge (ESD) ±15 kV (air discharge), ±8 kV (direct discharge)
IP Rating IP52
Accessories
Standard USB cable used to connect the FR80 to a host device; DC 5V power to power the FR80
Software
Configuration Tools EasySet
Certifications
Hardware FCC Part 15 Class B, CE EMC Class B
