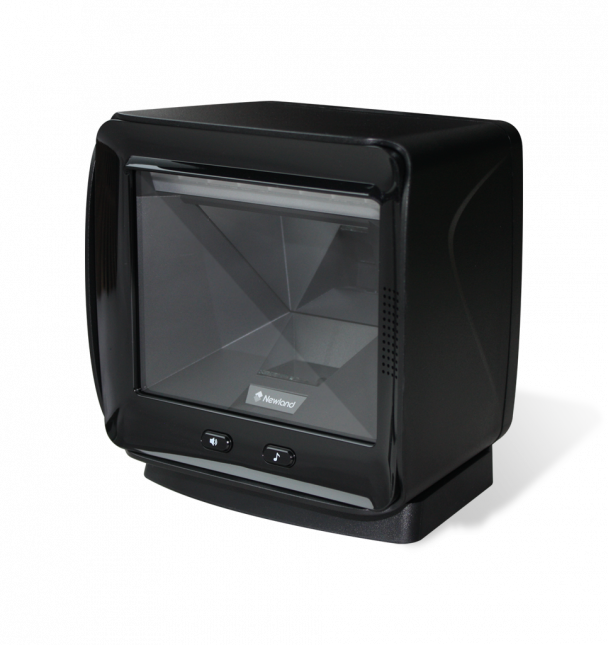

Newland FR80 Salmon 2D Vertical Desktop Scanner

The FR80 Salmon boosts transactions and customer loyalty by integrating all the essential features for a seamless plug-and-play experience, whether for a manned or self-service counter.

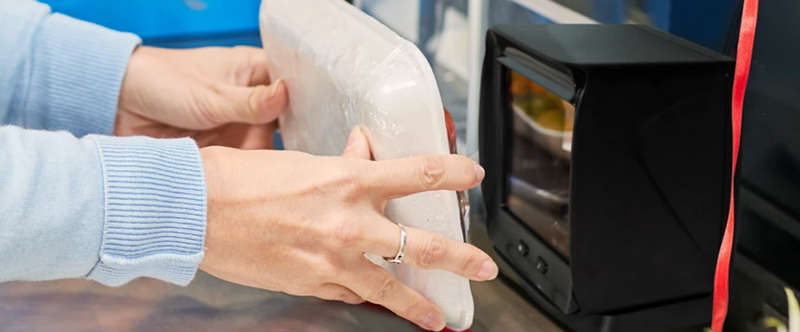

From Basket to Bags in Seconds

The FR80 Salmon is ideal for food and convenience retail, thanks to its large scan window and exceptional motion tolerance for retail codes, combined with our top megapixel scan engine.

Features

High Motion Tolerance

• The FR80 Salmon captures EAN codes moving at 3.5 meters per second, making it perfect for experienced users at static points of sale (POS) to quickly process baskets of goods and reduce checkout queues.

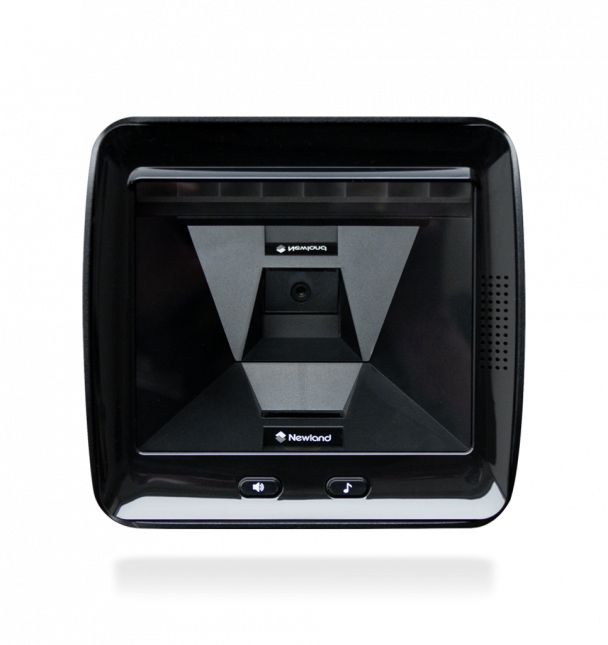

Large Scan Window

• Its large scan window and small depth of field (DOF) help capture barcodes even when goods are larger or presented very close to the scan window. This is beneficial for fast-paced checkouts, as less experienced users don't need to be precise when lining up codes for a successful read.

Comfortable Experience

• The FR80 Salmon's short and long-range illumination and anti-glare design are perfect for customer-facing applications, such as retail self-service and POS scanning. This prevents users from being dazzled by sharp illumination and reflections. Additionally, it performs well when scanning off phone screens.

Superior Scanning Performance

• Equipped with Newland's top megapixel technology, the FR80 Salmon excels at decoding poor-quality and damaged barcodes, as well as higher density 2D barcodes found on alcohol, tobacco, and pharmaceutical products.

Double Reading Prevention

• The FR80 Salmon uses active sensors to differentiate between a code being presented for reading and one that is not. It can distinguish between a deliberate swipe and a code being static for longer than the natural decode timeout session, preventing accidental misreads of the same barcode twice.

Adding More Scanners

• The FR80 Salmon has an RJ connection available for adding another scanner. This is particularly useful for capturing codes on bulkier items, especially those not practical for static/conveyor POS or some self-service applications. A customer-facing POS could benefit from a dedicated scanner for loyalty codes, e-vouchers, or scan-to-pay barcodes.

Setting the Tone

• The FR80 Salmon offers a choice of audible feedback tones and volumes with two user-accessible buttons. These buttons can be deactivated as part of a custom configuration via the user manual or EasySet configuration software.

EAS Deactivation

• The FR80 Salmon features an integrated single antenna system for deactivating EAS security tags. Compatible with major single loop EAS systems, including Checkpoint, the antenna is placed near the scan window for easy use.


Technical Specifications:

Data Capture

• 1D: Supports all major 1D symbologies, including EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN 128, RSS, Interleaved 25, ITF 14, ITF 6, Standard 25, Matrix 25, COOP 25, Industrial 25, Plessey, MSI Plessey, Code 11, Code 93, Code 49, Code 16K.
• 2D: Supports all major 2D symbologies, including PDF417, QR Code, Data Matrix, Micro PDF417, Micro QR.
• Image Sensor: 1280 * 1088 CMOS.
• Illumination: Red LED (614nm-624nm).
• Scan Modes: Advanced sense mode.
• Depth of Field EAN 13 (13mil): 0mm-140mm.
• Field of View Horizontal: 42.4°.
• Field of View Vertical: 36°.
• Scan Angle Roll: 360°.
• Scan Angle Pitch: ±55°.
• Scan Angle Skew: ±50°.
• Motion Tolerance: 3.5m/s.
• Minimal Print Contrast: >15%.

Physical

• Current @ 5VDC Operating: 400mA (typical).
• Current @ 5VDC Standby: <100mA.

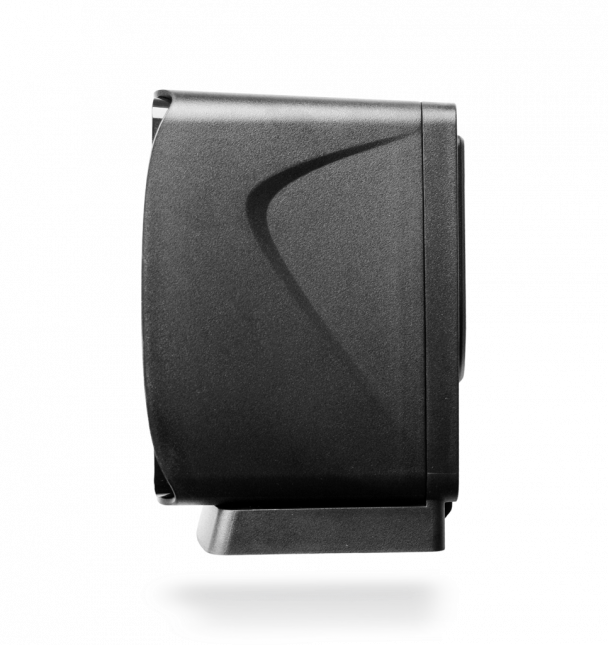

• Dimensions (mm): Without base: 151 (W) x 141.5 (H) x 97.5 (D) mm; With base: 151 (W) x 156.5 (H) x 108.5 (D) mm.
• Input Voltage: 5 VDC±5%.
• Interfaces: RS-232, USB.
• Notifications: Beep, LED indicator.
• Power Consumption: 2W (typical), 2.5W (max.).
• Weight: 542g (without base), 678g (with base).

Environmental

• Operating Temperature: -20°C to 50°C (14°F to 122°F).
• Storage Temperature: -40? to 70? (-40°F to 158°F).
• Humidity: 5% to 95% (non-condensing).
• Electro Static Discharge (ESD): ±15 kV (air discharge), ±8 kV (direct discharge).
• IP Rating: IP52.

Software

• Configuration Tools: EasySet.

Certifications

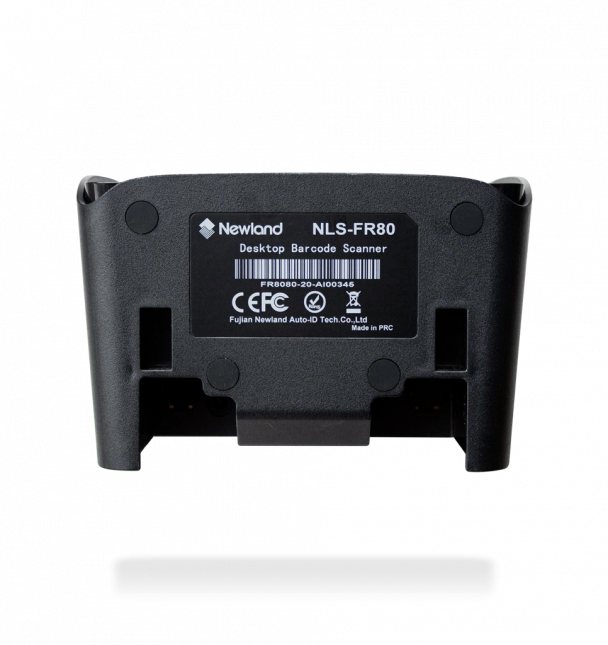

• Hardware: FCC Part 15 Class B, CE EMC Class B.

Warranty

• Standard: 5 years Manufacturers Carry-In Warranty
