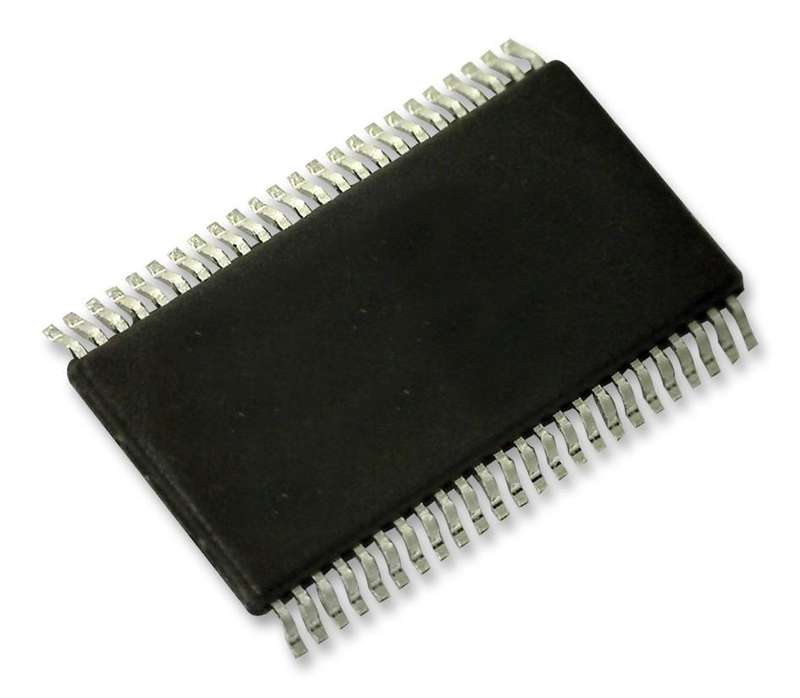

Nexperia (74LVC162245ADGG:11) Transceiver, 74LVC16245, 1.65 V to 3.6 V

Product OverviewThe 74LVC162245ADGG:11 is a 16-bit Transceiver with direction pin andnon-inverting 3-state bus compatible outputs in both send and receivedirections. Two send/receive (nDIR) inputs control direction and two outputenable (nOE) inputs make cascading easy. The nOE inputs control the outputs sothat the buses are effectively isolated. This device can be used as two 8-bittransceivers or one 16-bit transceiver. Inputs can be driven from either 3.3/5Vdevices and when disabled, up to 5.5V can be applied to the outputs. Thesefeatures allow the use of this device as translator in mixed 3.3 and 5Vapplications. The 74LVCH162245A bus hold on data inputs eliminates the need forexternal pull-up resistors to hold unused inputs. Both HIGH and LOW outputstages include 30W series termination resistors to reduce line noise.CMOS low power consumptionMultibyte flow-through standard pin-out architectureLow inductance multiple power and ground pins for minimum noise and groundbounceDirect interface with TTL levelsAll data inputs have bus holdComplies with JEDEC standard5V Tolerant inputs/outputs for interfacing with 5V logicApplicationsIndustrial, Automation & Process Control, Signal ProcessingProduct InformationLogic Family / Base Number: 74LVC16245Logic Device Type: Transceiver, Non InvertingLogic Case Style: TSSOPNo. of Pins: 48PinsSupply Voltage Min: 1.65VSupply Voltage Max: 3.6VLogic IC Family: 74LVCLogic IC Base Number: 7416245Operating Temperature Min: -40°COperating Temperature Max: 125°CProduct Range: -Automotive Qualification Standard: -MSL: MSL 1 - Unlimited
