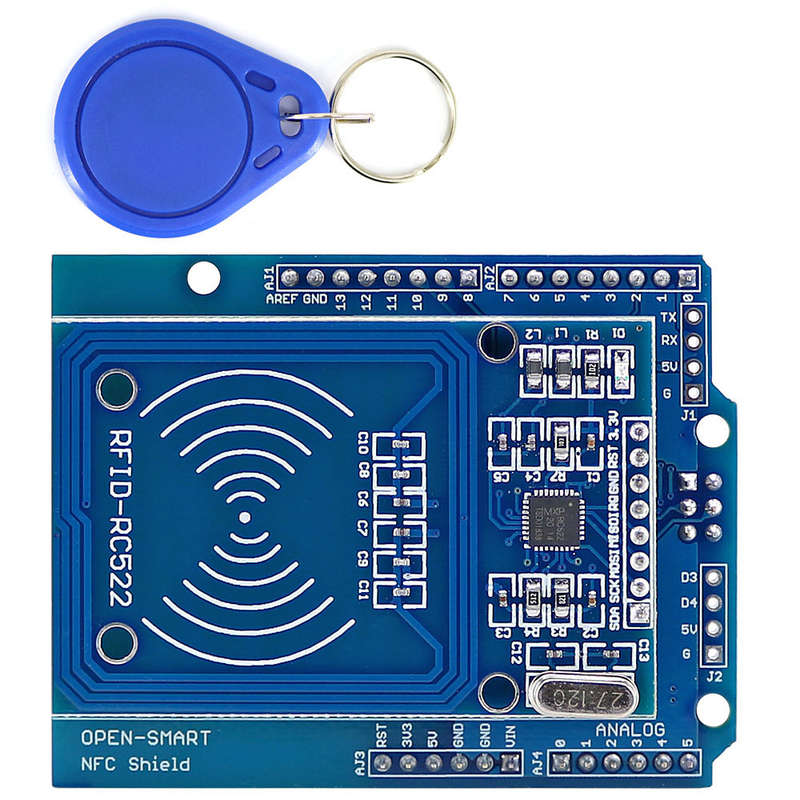

NFC Shield RFID RC522 Module RF IC Card Sensor + S50 RFID Smart Card for UNO/Mega2560

20 available / new

R437.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3463

93.50 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641130417

Description: The NFC Shield features a transceiver module, MFRC52, which handles wireless communication at 13.56MHz, this means that you can read and write a 13.56MHz tag with this shield. It also lead out the UART interface which can be connect with Serial Bluetooth module or Serial Wifi module, Serial MP3 Player module and D3 / D4 port that can connect to I2C OLED module. Features: - Standard shield interface, perfectly compatible with Arduino UNO / MEGA2560 . - Very easy to use with the libary for Arduino: RFIDMaster. - Operating voltage: 4.5~5.2V - Interface logic level: Onboard level converter chip, compatible with 3.3V / 5V. - Operating current : 13-26mA - Idle current : 10-13mA - Sleep current: <80uA - Peak current: <50mA - Operating Frequency: 13.56MHz - Supported card types: S50, S70, Pro, DESFire - Data transfer rate: maximum 10Mbit/s Package includes: 1 x NFC Shield
