The NK-M009 HDMI to Dual SDI Converter is a compact and high-performance solution for transmitting high-definition HDMI signals to two SDI outputs simultaneously. Ideal for professional broadcasting, video production, and surveillance applications, this device supports a wide range of input resolutions and long-distance SDI transmission.
With support for 1080p Full HD and compatibility with industry standards such as SMPTE 259M-C and SMPTE 292M, this converter ensures reliable and high-quality signal conversion. Its rugged design and plug-and-play setup make it an essential tool for any AV setup requiring HDMI to SDI conversion.
Key Features:

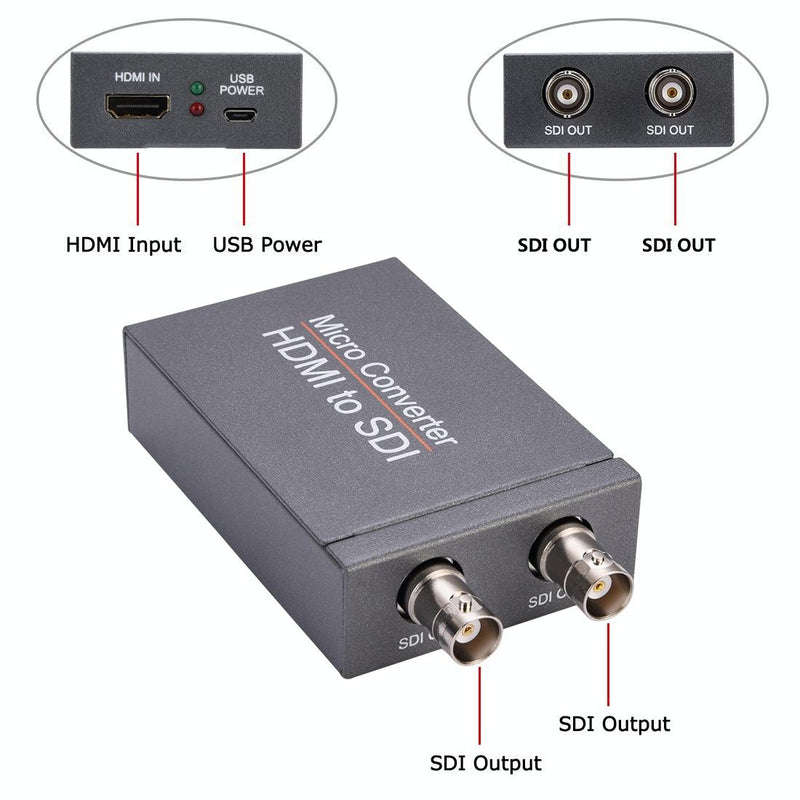

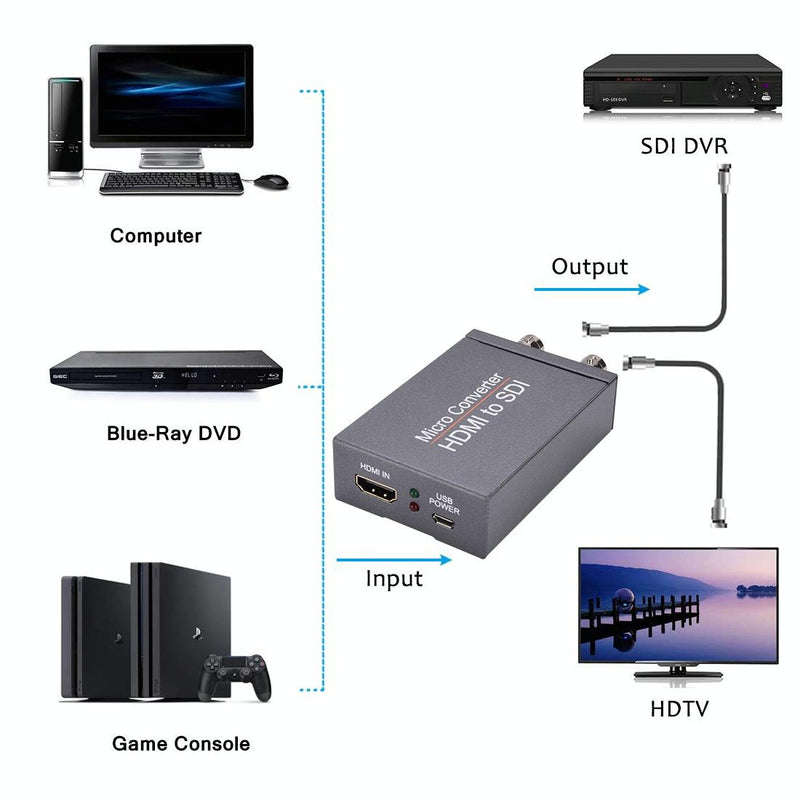

HDMI to Dual SDI Output: Simultaneously displays HDMI sources on two SDI monitors or recorders
Supported Input Resolutions: 720p @ 50/60Hz, 1080i @ 50/60Hz, 1080p @ 50/60Hz
SDI Output Standards:
480i/576i to SD-SDI (SMPTE 259M-C, 270Mbps)
720p/1080i to HD-SDI (SMPTE 292M, 1.485Gbps or 1.485/1.001Gbps)
Data Rate Support: 270Mbps / 1.485Gbps / 2.970Gbps
Extended SDI Output Range:
Up to 100m (3G-SDI)
Up to 200m (HD-SDI)
Up to 300m (SD-SDI)
Specifications:
Dimensions: 100 x 65 x 25 mm
Weight: 210g
Package Includes:
1 x HDMI to Dual SDI Converter
1 x 5V/1A DC Power Adapter
1 x User Manual
