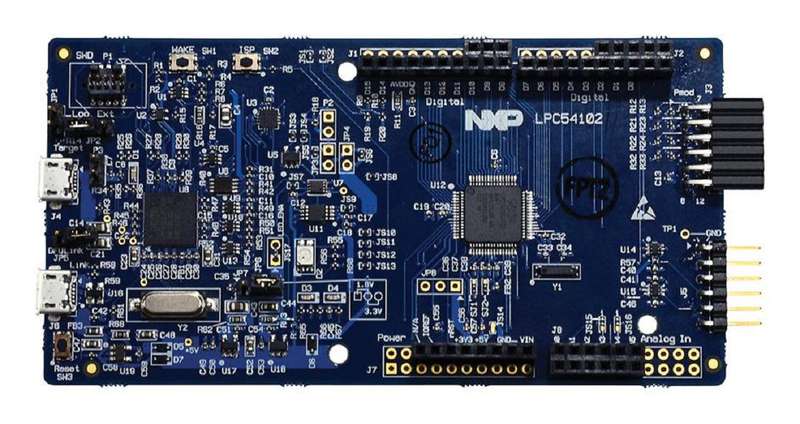

NXP (OM13077UL) Development Board, LPCXpresso™ for LPC54100 Family of MCU's

Product InformationSilicon Manufacturer: NXPNo. of Bits: 32bitSilicon Family Name: LPC54100Core Architecture: ARMCore Sub-Architecture: Cortex-M4FSilicon Core Number: LPC54102Kit Contents: Dev Board LPC54102Product Range:Product OverviewThe OM13077 is a LPCXpresso54102 board with onboard LPC54102 low powermicrocontroller, designed to make user to easily get started with their ownproject. The LPC54102 is an ARM Cortex-M4F based, low cost 32bit microcontrolleroperating at CPU frequencies of up to 100MHz. The LPCXpresso54102 is a low costdevelopment platform comprised of a simplified Eclipse based IDE and low costtarget boards which include an onboard debug probe. It is an end to end solutionenabling embedded engineers to develop their applications from initialevaluation to final production. The LPCXpresso54102 is fully supported by thefree LPCOpen Software Development Platform for NXP microcontrollers.Onboard high speed USB based debug probe with CMSIS-DAP & Redlink protocolsupportExternal debug probe optionTri colour LED, target reset, ISP and WAKE buttons for easy testing of softwarefunctionalityExpansion options based on Arduino UNO, Pmod and additional expansion port pinsOnboard 1.8V and 3.3V regulators plus external power supply optionBuilt in MCU power consumption and supply voltage measurementUART, I2C and SPI port bridging from LPC54102 target to USB via the onboarddebug probeFTDI UART connectorFully supported by LPCXpresso Eclipse based IDE and GNU C/C++ toolchainsApplicationsEmbedded Design & Development, Communications & Networking, Portable Devices,Medical, Sensing & Instrumentation, Building Automation, Robotics
