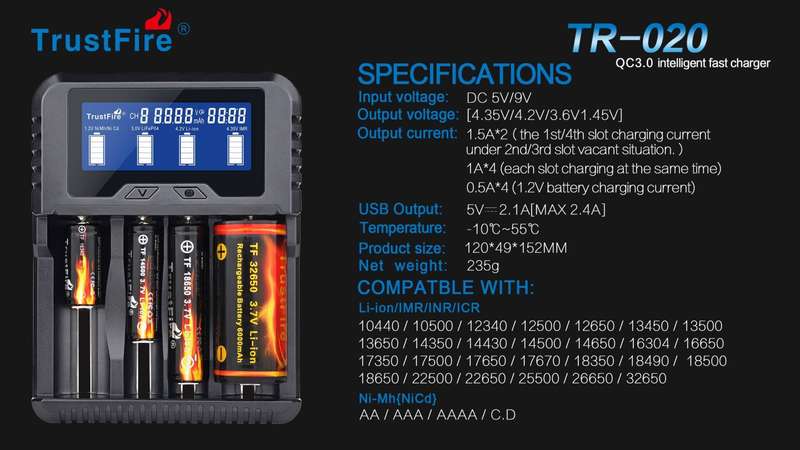

| Input voltage | Type-C 5V/9V |
| Output voltage | 4.35V/4.2V/3.6V/1.45V |
| Output current | 1.5A*2 (the 1st/4th slot charging current under 2nd/3rd slot vacant situation.) |
| 1A*4 (each slot charging at the same time) |
| 0.5A*4 (1.2V battery charging current) |
| USB output | 5V 2.1A (MAX 2.4A) |

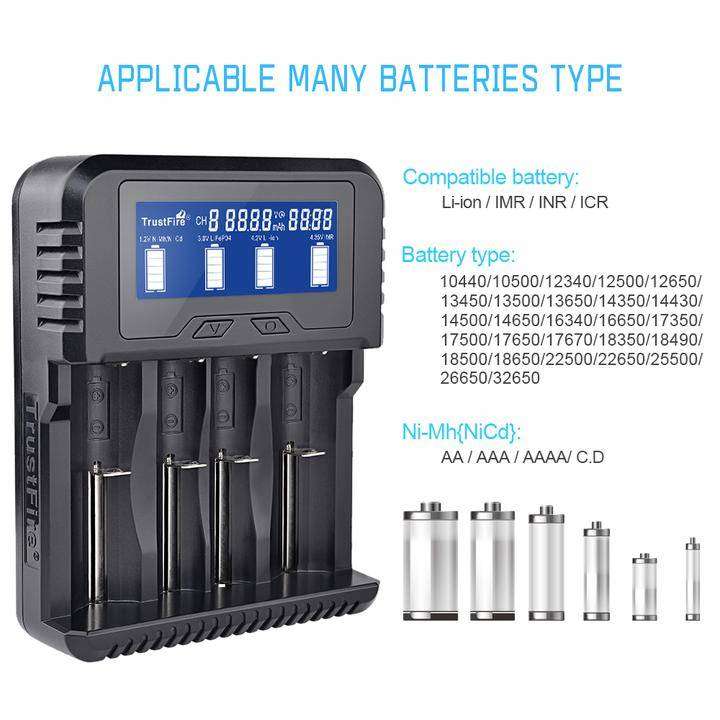

| Compatiable with | Li-ion/IMR/INR/ICR battery: 10440/10500/12340/12500/12650/13450/13500/13650/14350/
14430/14500/14650/16340/16650/17350/17500/17650/17670/
18350/18490/18500/18650/22500/22650/25500/26650/32650 |
| Ni-Mh(NiCd): AA/AAA/AAAA/C.D |
| Working temperature | -10C~-55C |

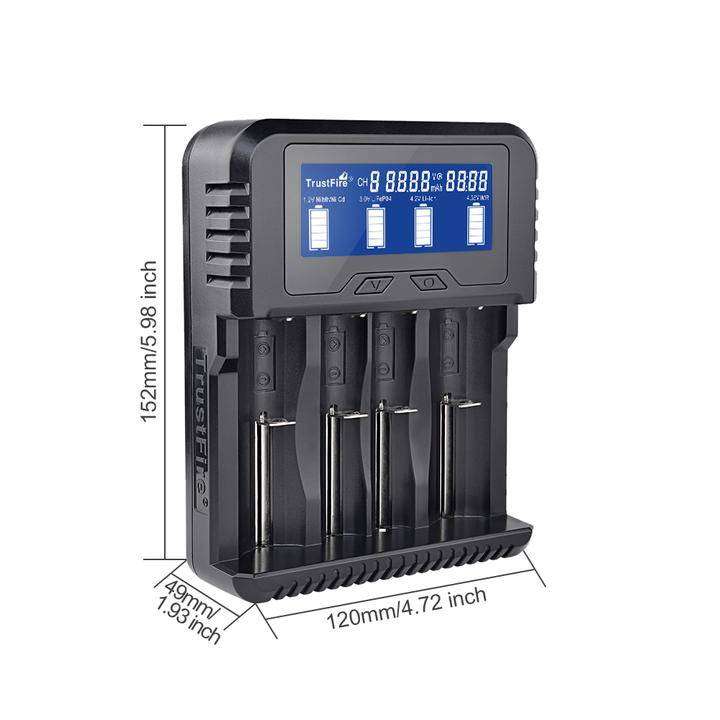

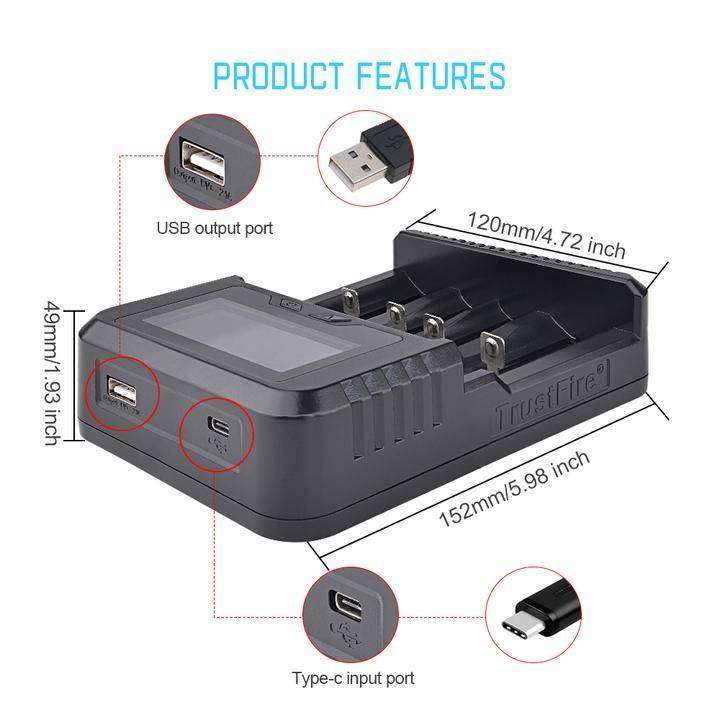

| Product Size | 120*49*152MM |
| Net weight | 235g |
FEATURE
- 4 Slots, can charge all 1.2V-4.35V cylindrical rechargeable batteries;
- Type-C input/output port supports QC3.0 fast charger, save more charge time;
- 5V 2.1A USB Output port can be mobile power bank for many digital devices;
- Intelligent recognition 1.2V battery and detect non rechargeable batteries;

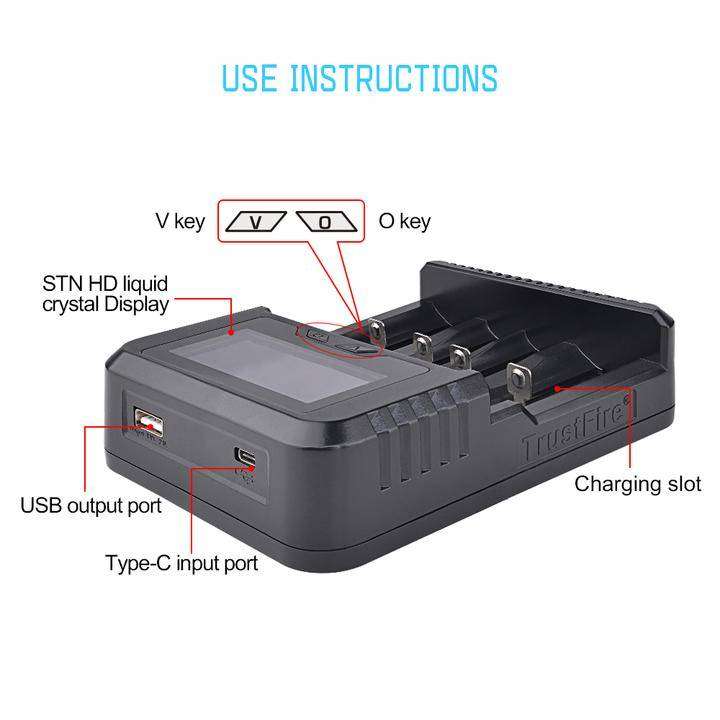

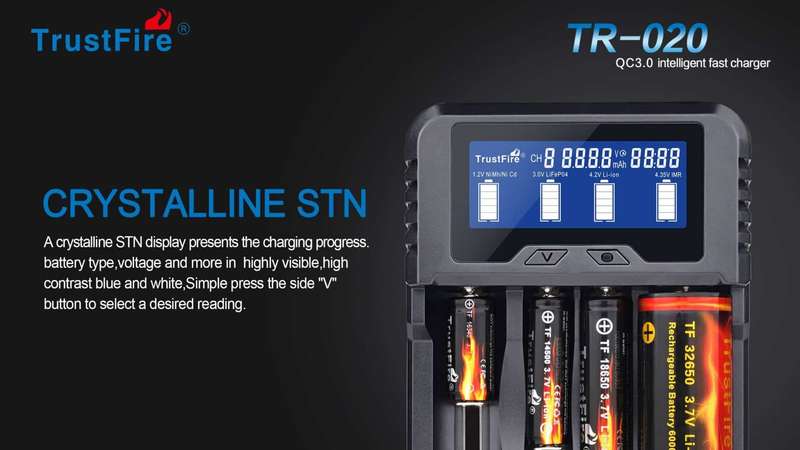

- STN HD crystalline display screen to show battery capacity, voltage, current, temperature and charging status of each slot;
- Package Included: 1* TR-020 Charger, 1* USB C Cable, 1* User Manual.

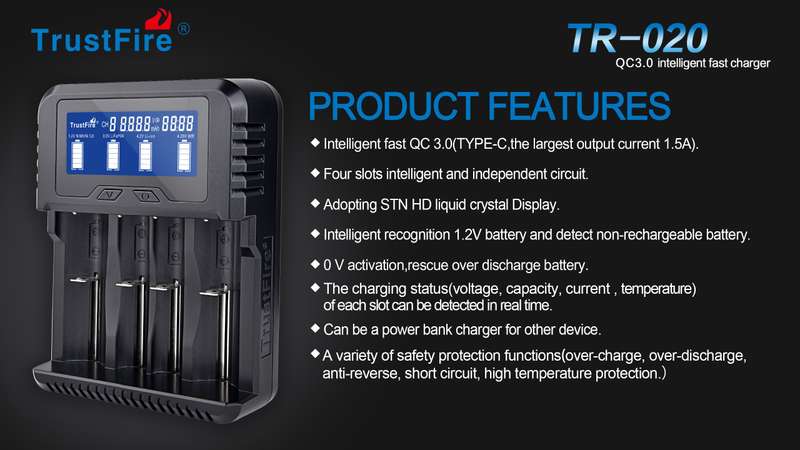

PRODUCT FEATURES
1. Fully compatible: with all 1.2V/3.7 V/4.2V/4.35V cylindrical rechargeable Li-ion / IMR / INR / ICR / Ni-Mh / NiCd batteries. It can charge 3pcs 26650 batteries at the time.
2. Type C Input support QC3.0 fast charge: support 18W quick charger (9V-QC2.0.QC3.0) with Type C port. Max output is 1500mA. Common Type C input makes it possible to be powered on by any 5V/9V output, like wall chargers, power banks, car chargers etc.;

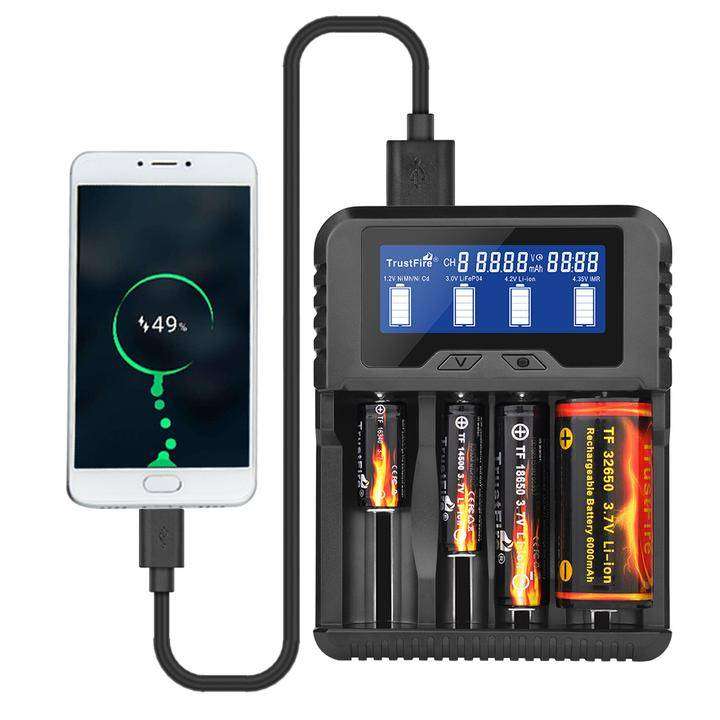

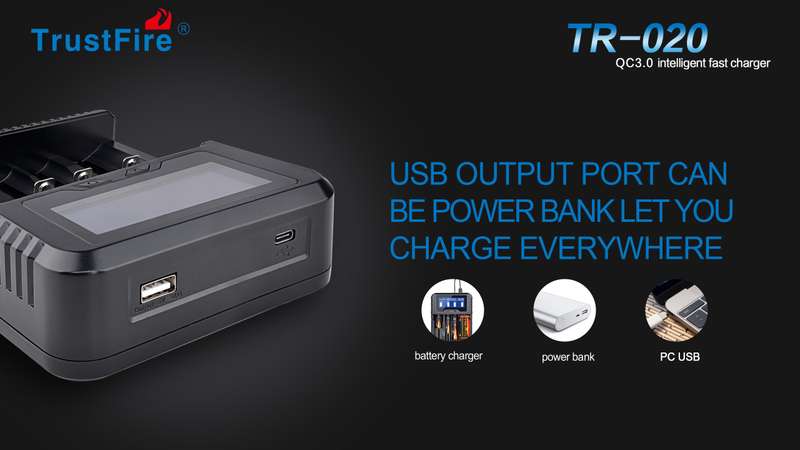

3. USB output port 5V--2.1A, MAX2.4A, can be used as a power bank. Convenient to charge small devices like mobile phones, flashlight. USB output function will be enabled only if you cut off the power and insert the battery; power bank does not apply to Ni-MH batteries. To protect battery, when working as power bank, once the voltage of any of the 4 slot is lower than 2.8V, the charger will stop output automatically.
4. Four slots intelligent and independent circuit, 3 charge curent (500mA,1000mA,1500mA), meet your different needs at the same time.

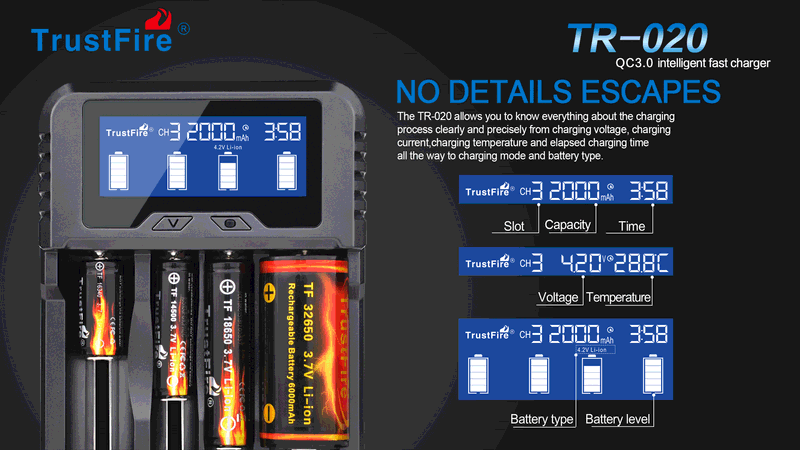

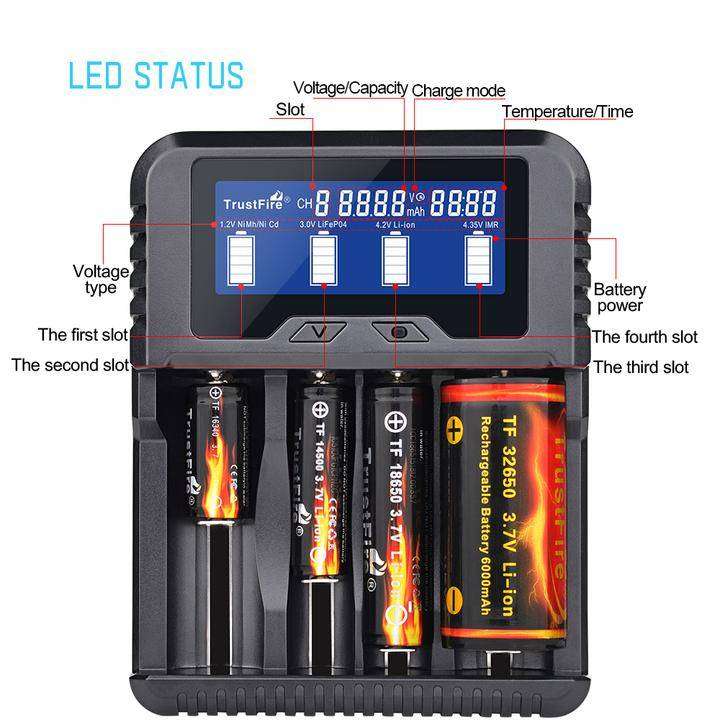

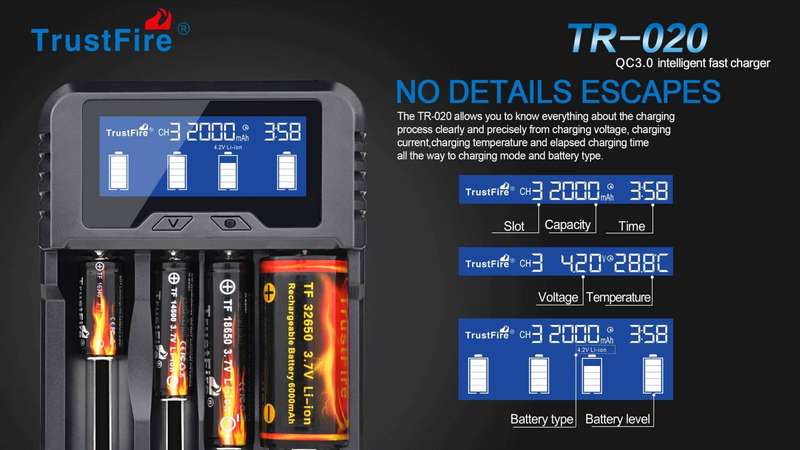

5. Digital LCD display: The charging status such as voltage/capacity/temperature/charged timeof each slot can be queried in real time by pressing the V button;

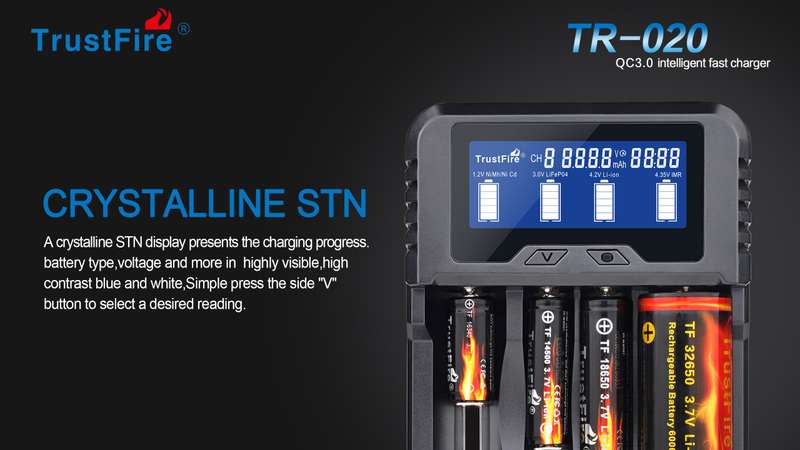

6. Adopting STN HD liquid crystal Display;
7. Intelligent recognition fast charging mode;
8. Intelligent recognition 1.2V battery and detection non rechargeable battery;

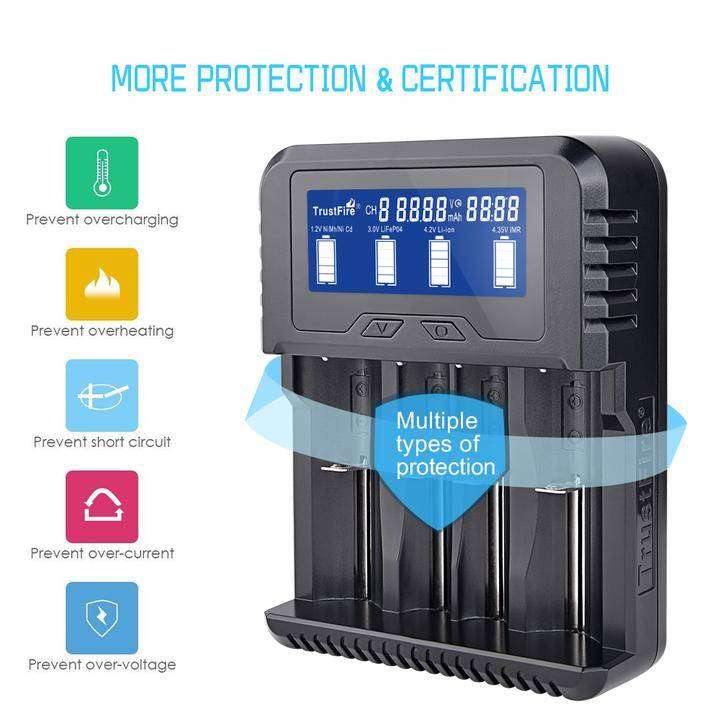

9. A variety of safety protection functions: overcharge, over discharge, anti reverse, short circuit, high temperature protection;
10. 0 V activation, rescue over discharge battery.

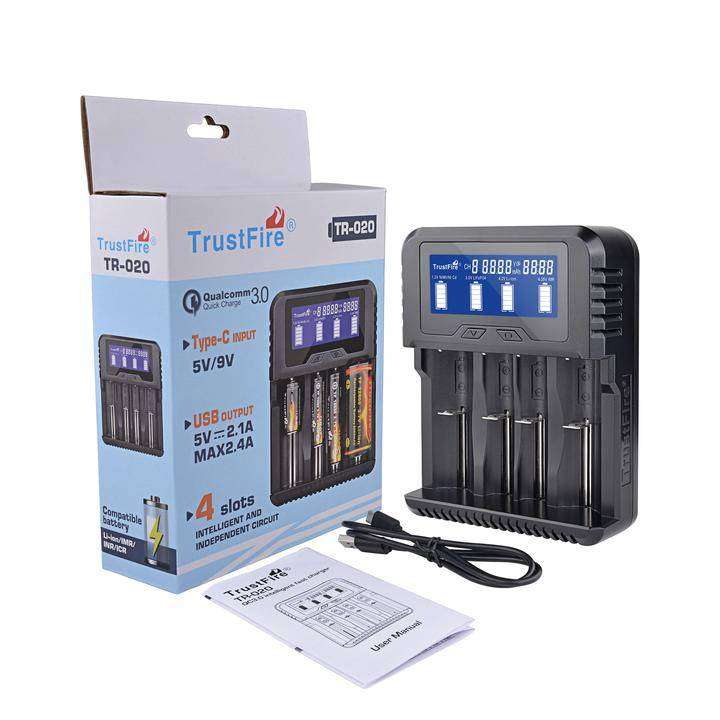

PACKAGE INCLUDED
1* TR-020 fast charger
1* USB Cable
1* User Manual
