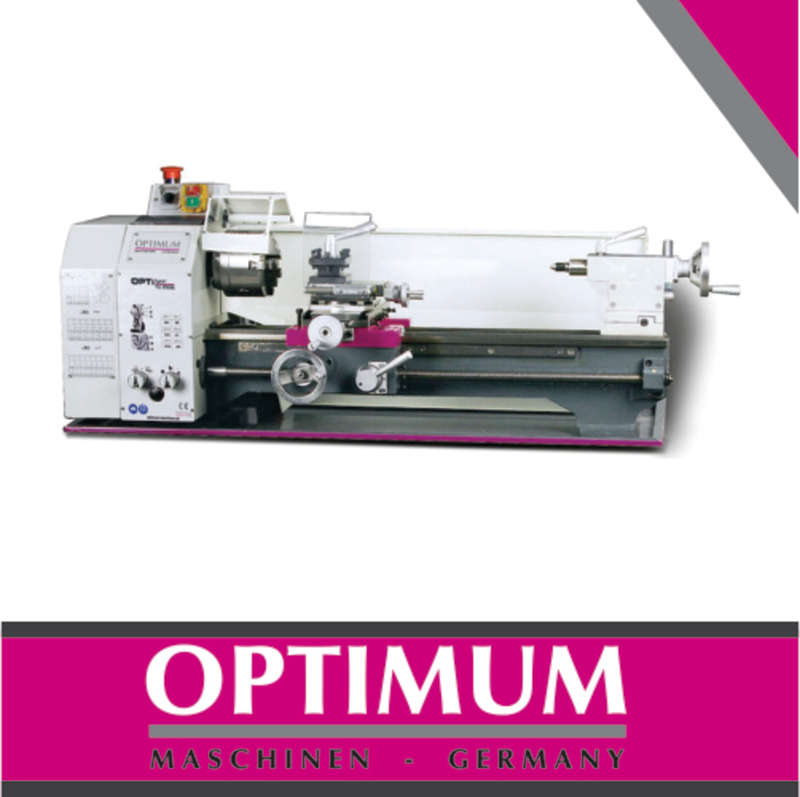

LATHE OPTI D240X500
Lead screw lathe with feed gear for demanding users
Lathes with Vario and conventional drive
Technical Specifications
Connection 230 V / 1 Ph ~50 Hz
Driving motor spindle 750 W
Spindle taper MT 4
Spindle hole
Spindle seat Short taper
Quadruple tool holder Height max. 13 mm
Centre height 125 mm
Centre width 550 mm
Turning Ø over lathe bed 250 mm
Bed width 135 mm
Spindle speed 125 2,000 min-1
Number of steps 6 steps
Travel top slide 70 mm
Travel cross slide 110 mm
Longitudinal feed in the range of 0.07 0.4 mm/U
Pitch Metric in the range of 0.2 4 mm mm/U
Pitch Inch in the range of 56 8 Gg/1
Tailstock seat MT 2
Tailstock sleeve travel 65 mm
Dimensions (L x W x H) 1,250 x 585 x 475 mm
Net weight 125 kg
Description
Lead screw lathes with feed gear for demanding users
Precise manufacturing
Powerful, maintenance free motor
Heavily ribbed prism bed made of grey cast iron, inductively hardened and precision ground
Hardened and ground bed guideways
Guaranteed true running accuracy of the spindle nose better than 0.009 mm
True running accuracy of the lathe chuck better than 0.04 mm
Automatic longitudinal/leading spindle drive
With leading spindle for threading or automatic longitudinal turning
Right-/left-handed rotation switchable on
Leading spindle run on two porous bearings
Handwheels on the slide with adjustable precision scaling of 0.04/0.01 mm
Change gear kit for thread cutting
Thrust bearing
Emergency-stop push button
Fully equipped machine, the user can immediately start to work productively
TU 2506 V
Infinitely variable speed control for brushless motor
Smooth and high performance DC drive with
excellent control characteristics
High-precision tool chuck for higher speeds
Speed change easily adjustable via potentiometer
Digital speed display
Features:
Slide
Quadruplicate tool holder
All guideways adjustable via V-ledges free of play
Rolled trapezoid spindles
Chip protection at the top slide
Milling machine BF20V mountable
Top slide adjustable on cross slide
Tailstock
Adjustable by ± 5 mm for taper turning
Tailstock spindle sleeve and handwheel with adjustable precision scaling
of 0.02 mm
Rapid and easy adjustment of the tailstock by means of a clamping lever
Main spindle
Hardened and with readjustable precision tapper roller bearings
Two taper roller bearing of P5 quality
Short taper
Hardened spindle nose with a spindle hole of Ø 26 mm
Feed gear
Smooth running
Rounded toothed wheels
Running in the oil bath
TU 2506V
Powerful Brushless drive
Particularly smooth running
Nearly constant torque over the entire speed range
High power output
Delivery Information
3-jaw lathe chuck Ø 125 mm
Fixed center MT 2 / MT 4
HSS lathe chisel
Quadruple tool holder
Change gear kit
Operating tool
**PLEASE NOTE**
lathe stand as show in photos SOLD SEPARATELY.
