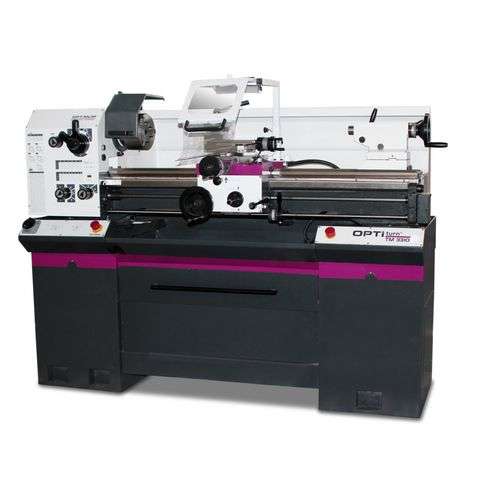

OPTIMUM - OPTIturn TM 3310D Lathe 330x1000mm - BL3403025

Hardened and ground Z-axis guideway
Precisely machined carriage
DC 24 volt electrics
Motor protection switch
Main motor electrically braked
Guaranteed concentricity of the spindle nose better than 0.015 mm
Smooth-running feed gear with rounded gears running in an oil bath
Hardened main spindle mounted in adjustable, precise tapered roller bearings
Right/left rotation switchable on the bed slide
Two-channel safety electronics
Handwheels with adjustable fine scaling 0.04 / 0.02 mm
Safety handwheels with disengagement function according to EN23125 in the X and Z axis
Switch rod on the bed slide for selecting longitudinal or face feed
Switch with life cycle calculation tested in accordance with EN ISO 13849
Machine base in sturdy steel construction
Quadruple steel holder

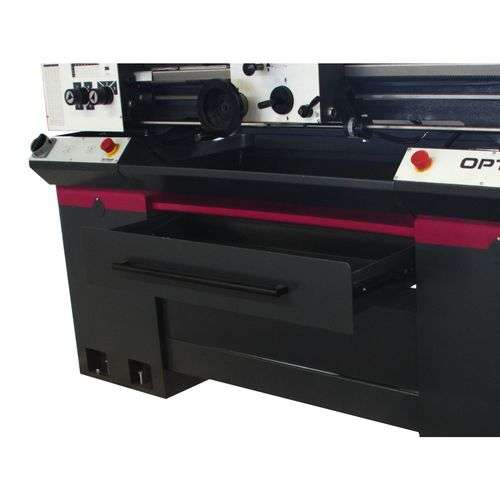

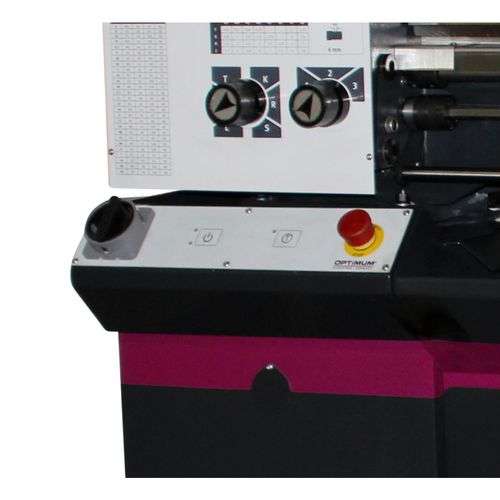

Emergency stop switch right and left
Dimensions and weights

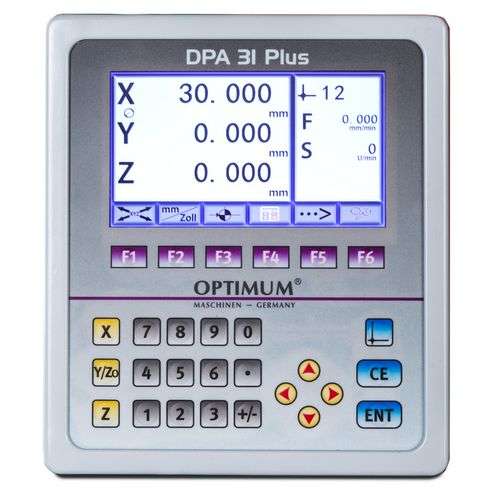

Max. height 1590 (DPA) mm
Length approx. 1760 mm
Width/depth approx. 745 mm
Height approx. 1320 mm
Weight approx. 471 kg
Electrical Data
Drive motor output 1,5 kW
Supply voltage 400 V
Mains frequency 50 Hz
Feed
Longitudinal feed range 0,02 0,4 mm/rev
Number of longitudinal feeds 24
Flat feed range 0,01 0,2 mm/rev
Number of flat feeds 32
Pitches
Metric pitch 0,4 10 mm/rev
Number of metric pitches 29
Imperial pitch 56 4 Gg/1
Speed range
Number of gears 9 Steps
Speed range 65 2000 min¯¹
Spindle
Spindle chuck Camlock DIN ISO 702-2 No. 4
Spindle bore/rod passage diameter 38 mm
Tool holder max. chuck height 16 mm
Spindle cone MK 5
Tailstock
Chuck MK 3
Quill stroke 100 mm
Quill diameter 38 mm
Travel
Travel upper slide 90 mm
Travel cross slide 168 mm
Travel carriage saddle 850 mm
Work areas
Max. height 165 mm
Max. width 1000 mm
Swing diameter above machine bed 330 mm
Swing diameter above planing slide 216 mm
Bed width 190 mm
VPE 1

Scope of delivery:
Unit: pc(s).
Packaging unit: 1

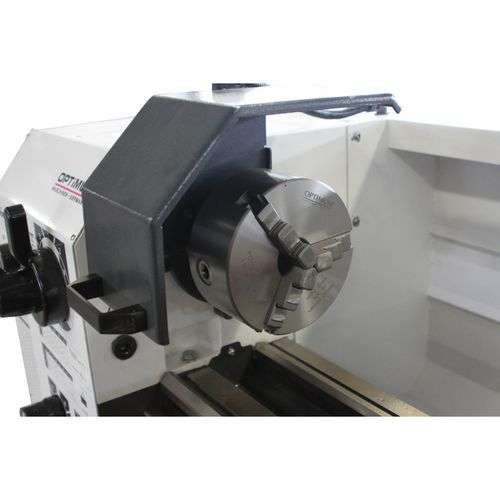

three-jaw lathe chuck Ø 160 mm, No. 4

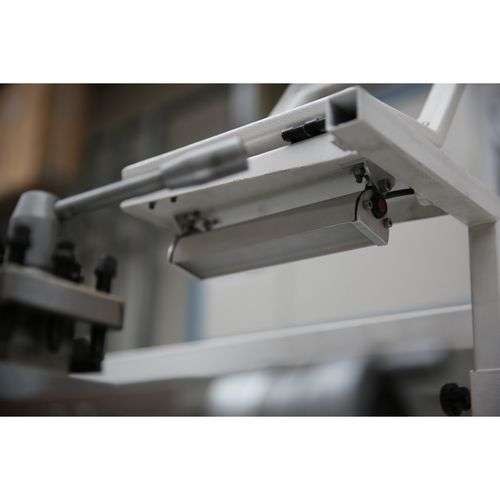

LED machine light
Reducing sleeve MK 5 / MK 3
Non-rotating centring tip MK 3
Quadruple steel holder 16 mm
Change gear set
Machine base
Machine first filling with quality oil
Operating tool

330x1000mm
