Original Airbot Omnibus AIO F4 V6 Flight Controller OSD STM32 F405 5x UARTs 30.5x30.5mm for RC Drone

New 12 were available
R1,082.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
620114895

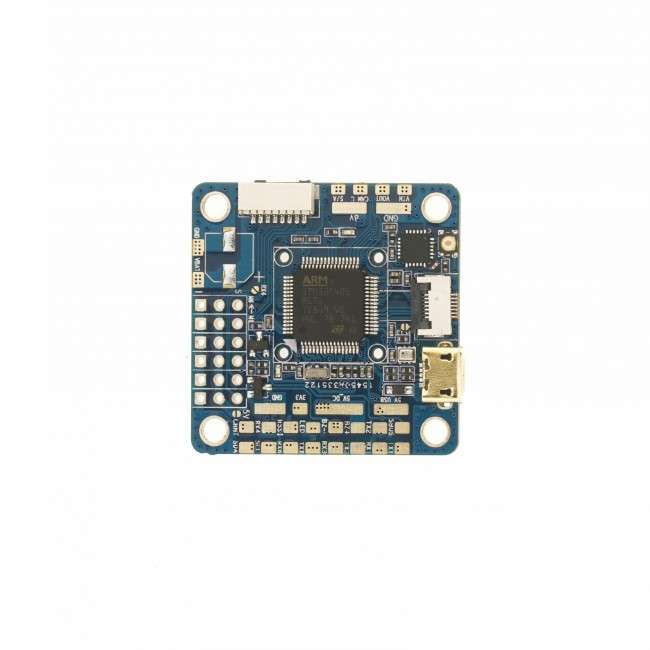

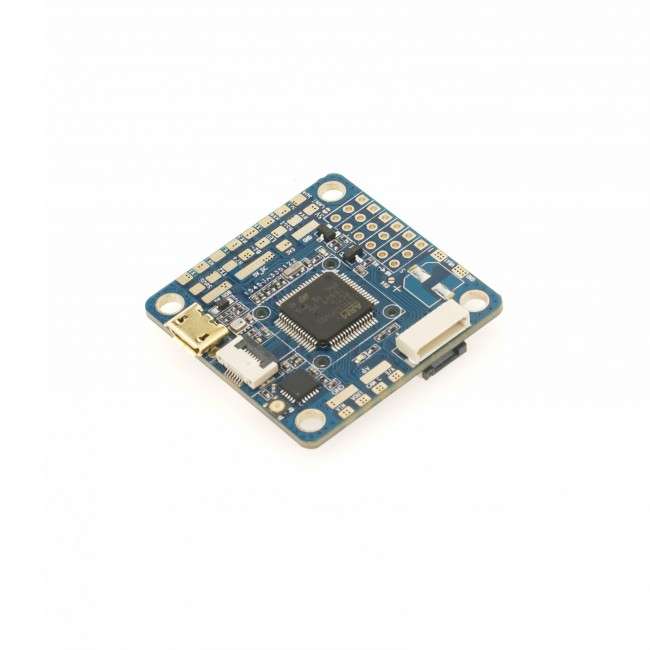

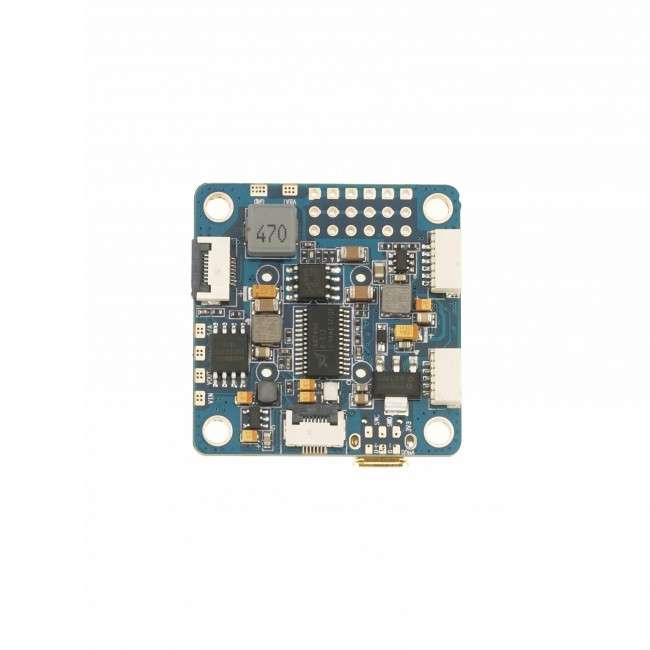

Original Airbot Omnibus AIO F4 V6 Flight Controller STM32 F405 5x UARTs 30.5x30.5mm for RC Drone


OMNIBUS F4's upgrade version, using F405 and new target, with?5x UARTs?now.

classic OMNIBUS design, using F4 MCU controls OSD over SPI bus, compare the first version, we added BMP280 as barometer and SD Card supports.

OSD Configuration has been incl. in Betaflight GUI.

FC?incl. 5V1A BEC on board(3-6s) and 1x 8V BEC for Camera

MPU6000 at SPI bus, Ext, SPI for damped gyro

? Use fireworks v2 firmware, in?CLI,?set?gyro_to_use?=?SECOND

?New version with 8PIN Sh1.0 Socket, could be much easier connect to our 4in1 ESC by one cable.

On v5, we added jumpers for Current source select, please?read the manual and set the jumper?before using the FC.

Specificaiton:
STM32 F405 MCU, Runs Betaflight 3.0 firmware
SBUS/PPM input (Pinheaders)
6PWM output (1-4Pinheaders and Sh1.0 Plug, 5-6 as Pinheaders)
Only 36x36mm, mount holes 30.5x30.5mm
INCL. BARO BMP280
SPI Sensor MPU6000
Flash

Note:?This does not include any cables or connectors. Please order separately.
?

Package Included:
1 x Flight Controller
