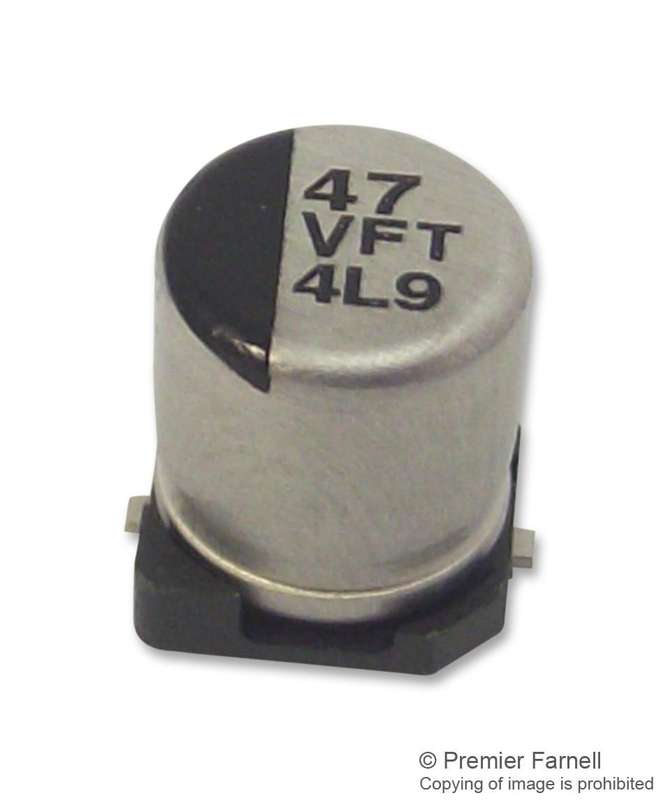

Panasonic (EEEFT1V470AR) SMD Aluminium Electrolytic Capacitor, 47 µF, 35 V

SMD Aluminium Electrolytic Capacitor, Radial Can - SMD, 47 µF, 35 V, 0.36 ohm,2000 hours @ 105°CProduct InformationAE Capacitor Case: Radial Can - SMDCapacitor Case / Package: Radial Can - SMDCapacitance: 47µFVoltage Rating: 35VVoltage(DC): 35VESR: 0.36ohmLifetime @ Temperature: 2000 hours @ 105°CPolarity: PolarSeries Name: FTOperating Temperature Min: -55°COperating Temperature Max: 105°CRipple Current AC: 240mADiameter: 5mmProduct Diameter: 5mmHeight: 5.8mmProduct Height: 5.8mmCapacitance Tolerance: ± 20%Ripple Current: 240mASupplier Package: -Qualification: AEC-Q200Product Range: FTAutomotive Qualification Standard: AEC-Q200MSL: -Product OverviewThe Panasonic FT series capacitors are automotive grade type V, surface mountpolarized aluminium electrolytic capacitors suitable for high temperature leadfree reflow. The capacitance value ranges from 10µF to 2200µF. These capacitorsare perfect solution for applications, which require ultra low ESR, very highripple current and very long life in small mounting form. FT series capacitorsare very useful in a wide variety of applications where space is limited andhigh performance is crucial.High reliabilityAutomotive grade AEC-Q200 compliantRated voltage range of 6.3VDC to 50VDCTolerance of ±20%Endurance of 2000h at 105°COperating temperature range -55°C to 105°C
