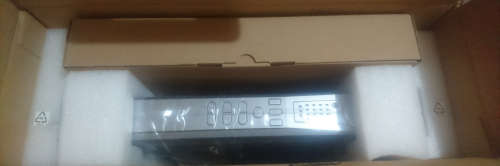

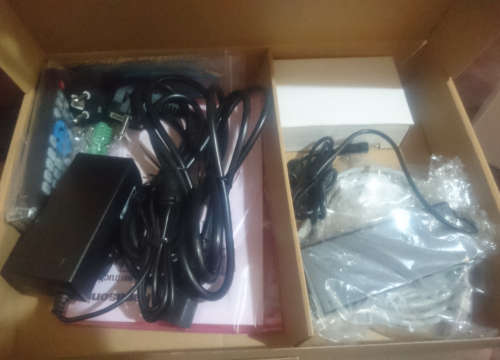

As New - Sealed Package - All Accessories including 2 x Power Supplies, 1 x Optical Mouse, 1 x Network Cable, Remote Control, HDD Cable intact

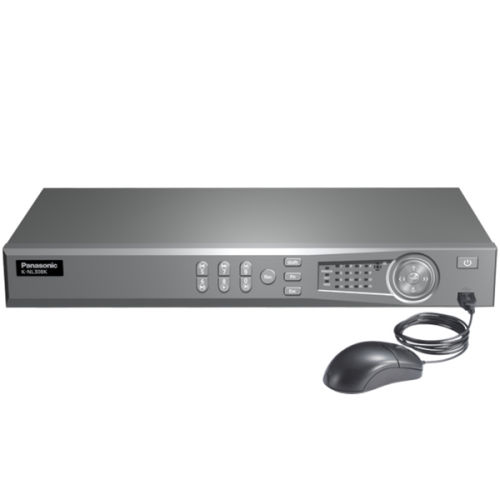

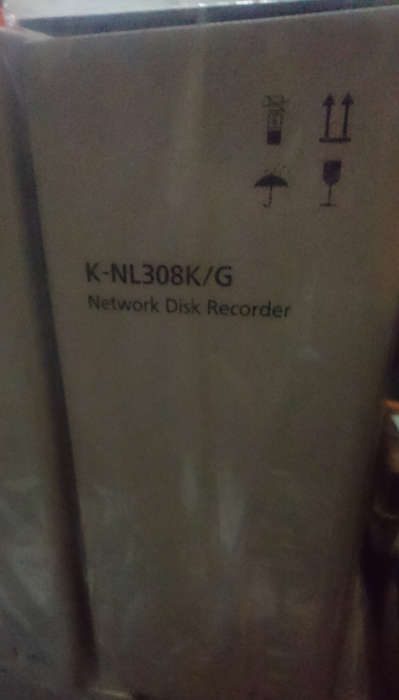

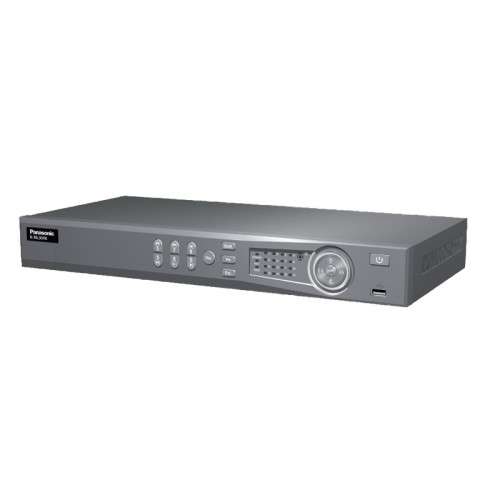

Panasonic E-Series 8ch PoE Network Disk Recorder
Features/Functions
Main Processor Dual-core embedded processor
Operating System Embedded Linux®
Language English / Thai / Vietnamese
Video / Audio
IP Camera Input 8 channel (Only E-Series camera)
Audio 1channel Input (RCA), 1channel Output (RCA)
Display
Interface 1 HDMI,1 VGA
Resolution 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768
Display Split 1 / 4 / 8 / 9
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression H.264 / MJPEG
Resolution 3 Mp (2048 × 1536) / 1080p (1920 × 1080) / 720p (1280 × 720) / D1 (704 × 480) / VGA (640 × 480) / CIF (352 × 240) & etc.
Maximum Bandwidth Total 200 Mbps or less
Bit Rate 48 – 8192 kbps * Suggested to set bit rate for E-Series camera to 4 Mbps or less
Record Mode Manual, Schedule {Regular (Continuous), VMD, Alarm}, Stop
Record Interval Recording duration : 1 – 120 min (default : 60 min), Pre-record : 1 – 30 sec, Post-record : 10 – 300 sec
Video Detection & Alarm
Alarm Action Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Alarm pop-up
Video Detection Video Motion Detection, Camera Blank
Alarm Input 4 channel
Relay Output 2 channel
Playback & Backup
Sync Playback 1 / 4 / 8
Search Mode Time/Date, Alarm, VMD & Exact search (accurate to second), Smart search
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow play, Next le, Previous le, Next camera, Previous camera, Full screen, Repeat, Backup selection, Digital zoom
Backup Mode USB Device / Network
Network
Ethernet 1 RJ45 port (10 / 100 / 1000 Mbps)
PoE 8 ports (IEEE802.3at)
Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP*, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search * Suggested to synchronize to external NTP server
Max. User Access 128 users
Smart Phone iPhone, iPad, Android™
Storage
Internal HDD 2 SATA ports, up to 8 TB
External Interface
USB 2 ports (1 Rear USB3.0,1 Front USB2.0)
General
Safty / EMS Standard <Safety> : CE, IEC60950-1 <EMC> : EN55022 Class B, EN55024
Power Supply AC 100 to 240 V, 50/60 Hz (For main unit)
Power Consumption NVR : 30 W (without HDD) PoE : Max 25.5 W for single port
Ambient Operating Temperature/Humidity -10°C to +55°C / 10% to 90%RH / 86~106 kpa

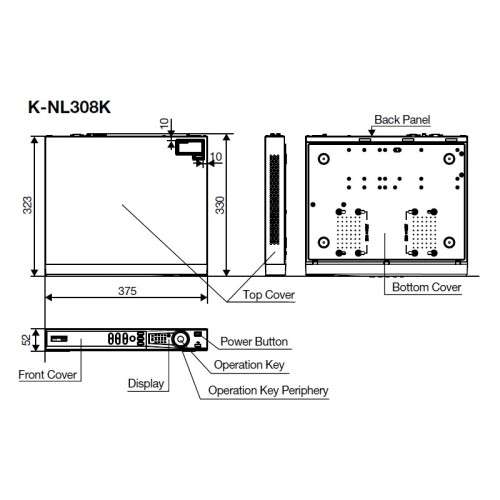

Dimension (W × D × H) 375 mm (W) × 323 mm (D) × 52 mm (H)
Weight 2.5 kg (without HDD)
Packaging Dimension 420 x 170 x 450mm
Please view shipping tab before placing your bid
