PH Value Data Detection and Acquisition Sensor Module Acidity and Alkalinity Sens... (TYPE: NOPROBE)

SELECTED OPTION:
TYPE: NOPROBE

If you canat open it, please check if your browser has disabled popup
Featue:

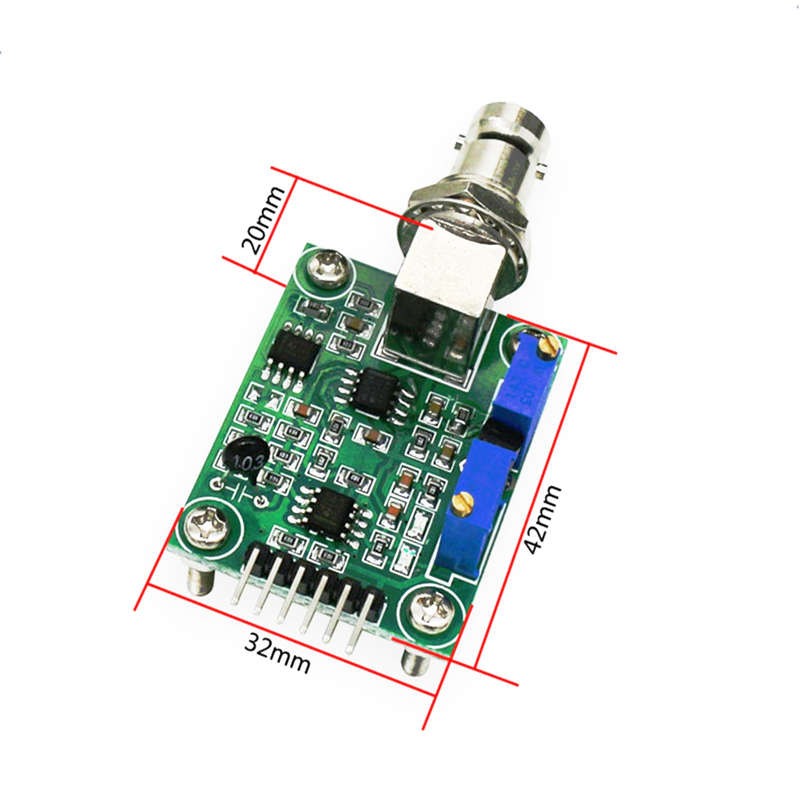

Product Name: PH value acquisition sensor module (with temperature compensation) 1. Heating voltage: 5±0.2V (ACDC) 2. Working current: 5-10mA 3. Detection concentration range: PH0-14 4. Detection temperature range: 0-80 ﾣC 5. Response time: a 5S 6. Stabilization time: a60S 7. Component power consumption: a0.5W 8. Working temperature: -10~50ﾣC (nominal temperature 20ﾣC) 9. Working humidity: 95% RH (nominal humidity 65% RH) 10. Service life: 3 years 11. Size: 42mm 32mm 20mm 12. Weight: 25g 13. Output mode: analog voltage signal output Note:

Buffer solvent needs to be purchased separately (note that we have no sales and need to be purchased locally, thank you) Such as: PH buffer PH value standard solution preparation 4/7/9 PH buffer reagent 3*1/set PH buffer 4/7/9 1. PH 4.003, 25 degrees, potassium hydrogen phthalate--- can prepare 250ML solution 2. PH 6.864, 25 degrees, mixed phosphate - can prepare 250ML solution 3. PH 9.182, 25 degrees, boric acid --- can prepare 250ML solution

Package includes:
(optional)
No probe:

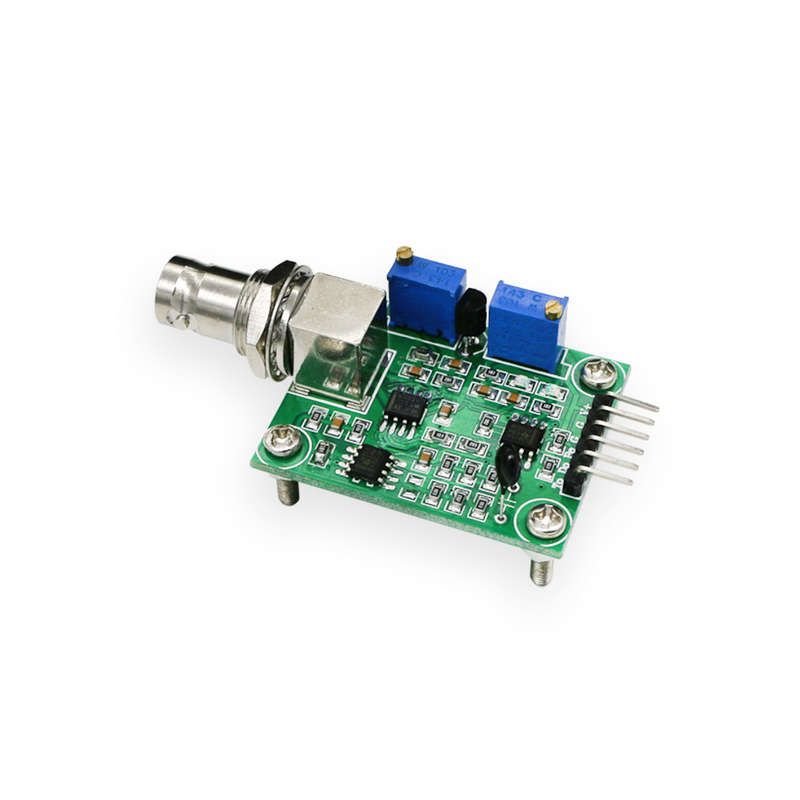

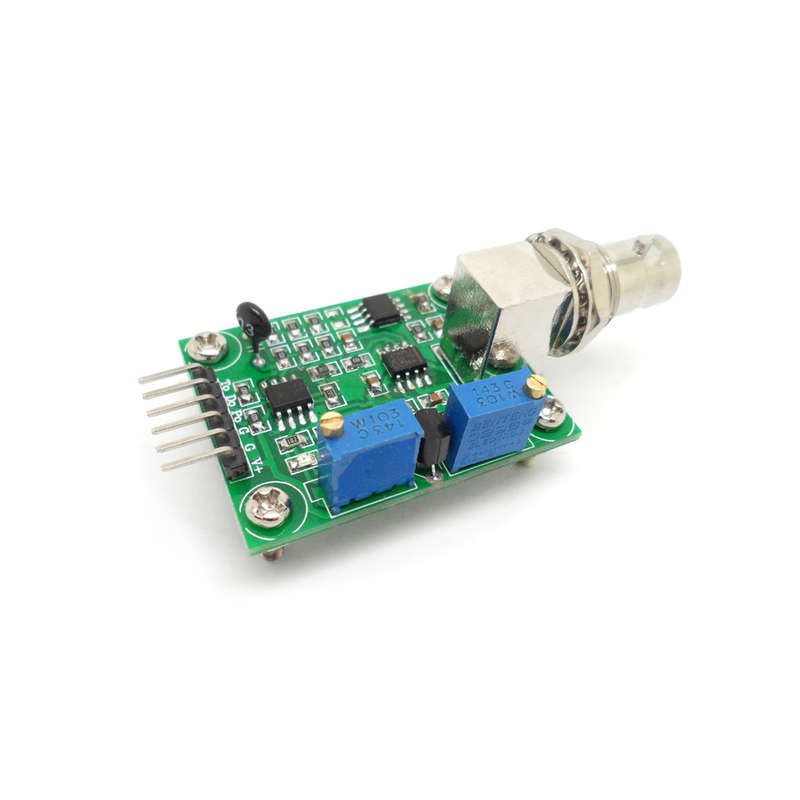

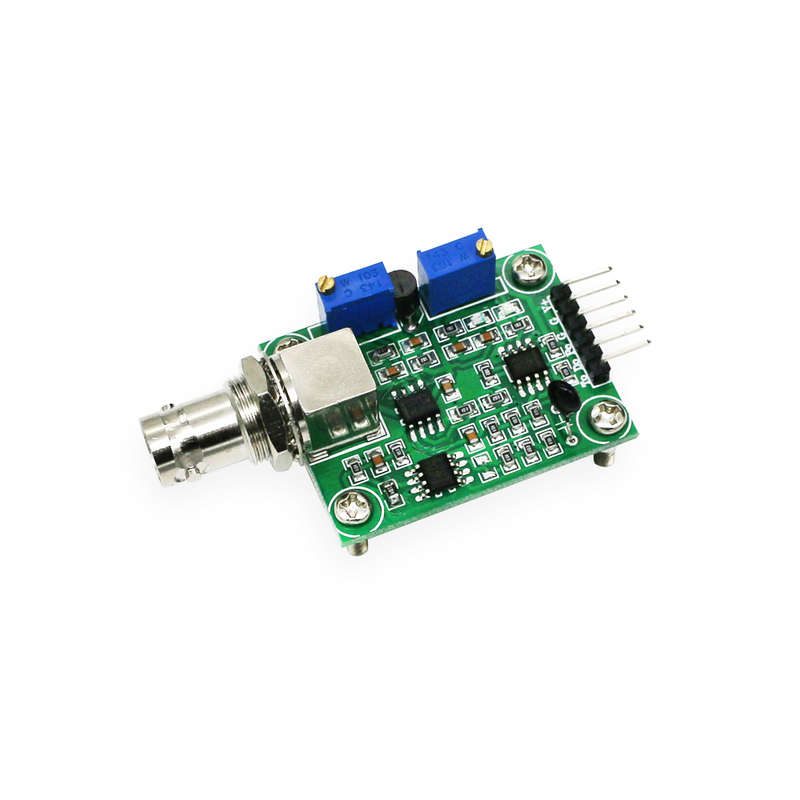

1 xPH value acquisition sensor module

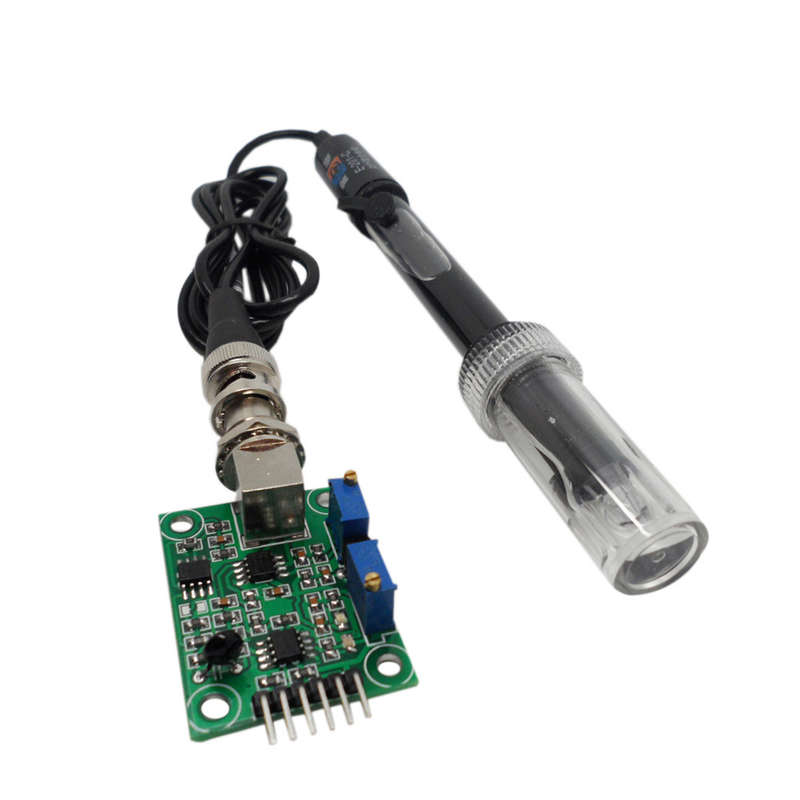

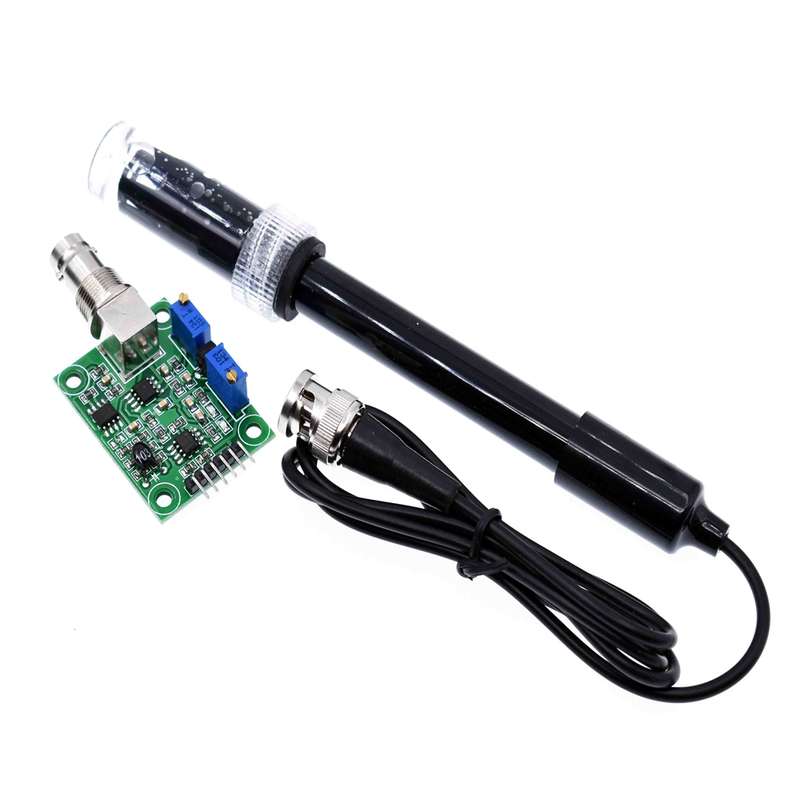

With probe:

1 xPH value acquisition sensor module

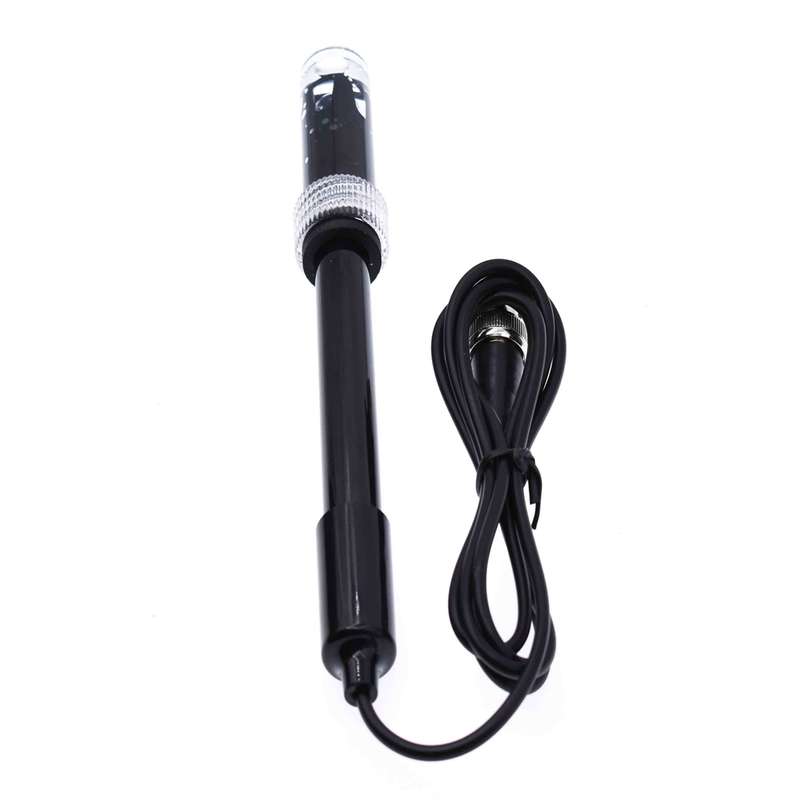

1 x PH probe
