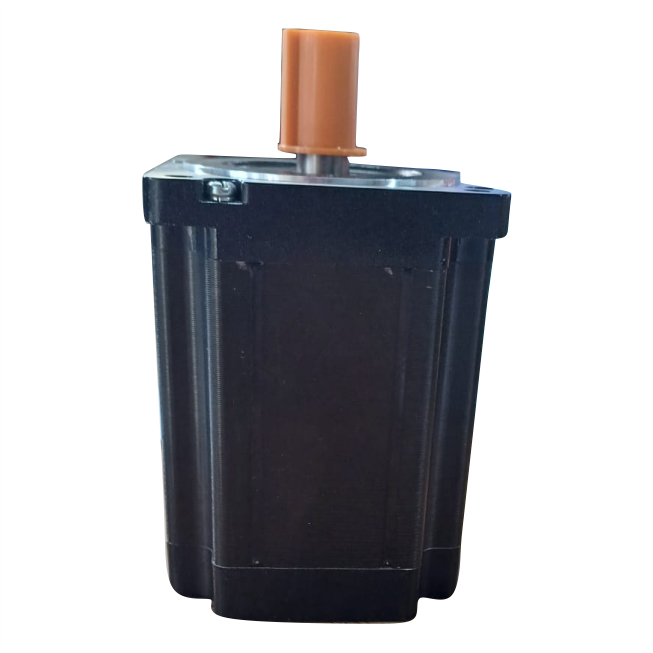

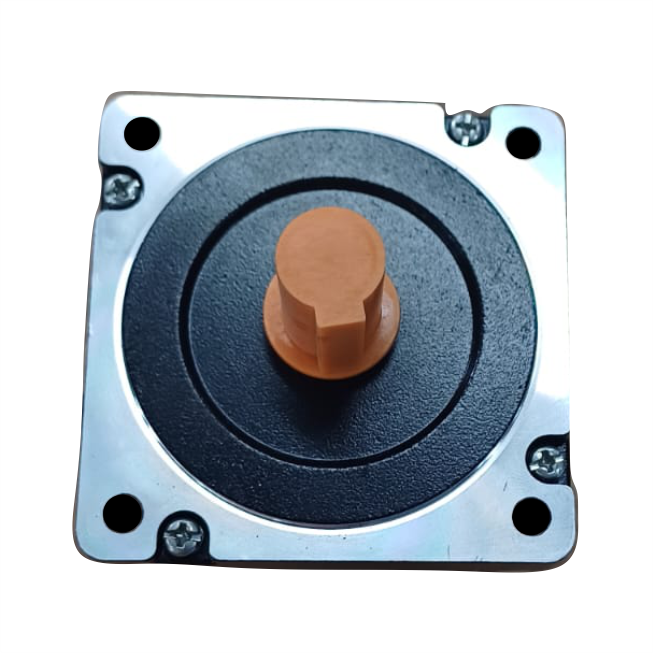

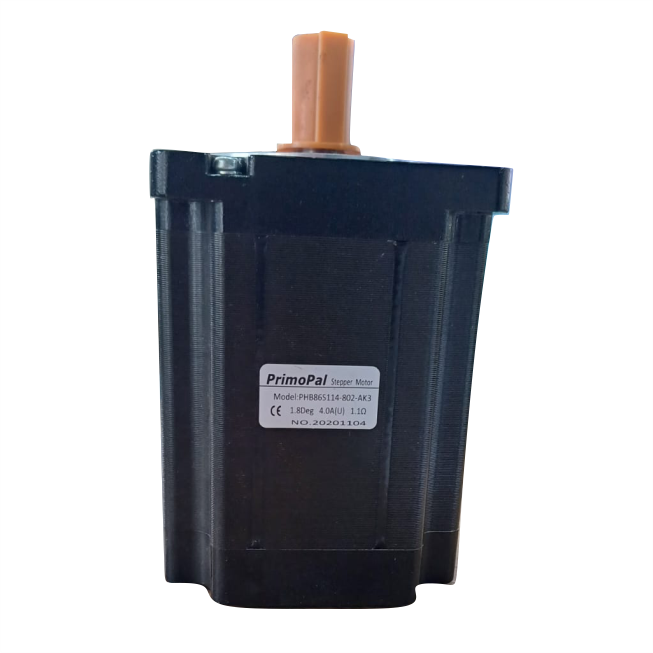

PHB86S114-802-AK3 Nema 34 1.8` Stepper Motor 114mm

2 available / new
Only 2 left – grab it before it’s gone!
R1,799.35
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
MOT-0021
Bob Shop ID
643722577
Key Features:
  • High Torque
  • Smooth Movement
  • High Accuracy


Features:
  • Step Angle: 1.8 Degrees
  • Step Angle Accuracy: +-5% (full step, no load)
  • Resistance Accuracy: +-10%
  • Inductance Accuracy: +-20%
  • Temperature Rise: 80 Degree C Max.(rated current)
  • Ambient Temperature: -20 Degree Celsius ~ +50 Degree Celsius
  • Insulation Resistance: 100 MOHM Min., 500VDC
  • Dielectric Strength: 500 VAC for one minute
  • Shaft Radial Play: 0.02 Max. (450 g-load)
  • Shaft Axial Play: 0.08 Max. (450 g-load)


Specifications:
  • 8 Wires
  • Holding Torque: 820 N.cm 1148 oz-in
  • Detent Torque: 12.5 N.cm 17.5 oz-in
  • Rotor Inertia: 1800 g.cm² 9.900 oz-in²

Mechanical dimensions:
  • L mm (in.): 114 (4.49)
  • Mass kg (lb.): 4.0 (8.80)
