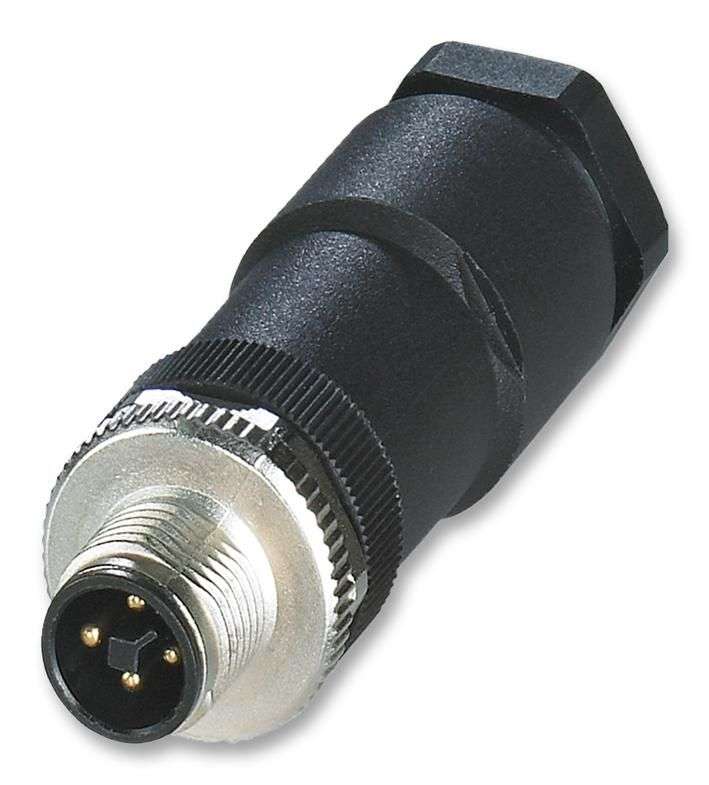

Phoenix Contact (SACC-M12MST-3PECON-PG11-M) Sensor Connector, M12, Male

Sensor Connector, M12, Male, 4 Positions, Screw Pin, Straight Cable MountProduct OverviewThe SACC-M12MST-3PECON-PG11-M is a 4-position M12 T-coded Straight Plug withscrew connection. It has gold-plated CuZn contacts, PA (polyamide) contactcarrier and a grip body.Nickel-plated zinc die-cast knurlsPG11 Cable glandFlexible connector for on-site assemblyProven connection technology for a large selection of different conductorsProtection against incorrect connection using special T-coding12A Rated current at 40°C63VDC Rated voltage10GR Insulation resistance0.75 to 1.5mm² Conductor cross sectionIP67 ProtectionApplicationsSensing & InstrumentationProduct InformationSensor Connector Gender: MaleNo. of Positions: 4 PositionsNo. of Contacts: 4ContactsSensor Contact Type: Screw PinSensor Connector Mounting: Straight Cable MountConnector Coding: T CodedConnector Body Material: Nylon (Polyamide) BodyContact Material: BrassContact Plating: GoldCurrent Rating: 12AVoltage Rating: 63VDC
