PoE Detector Passive and 802.3af/at

PoE Detector - Passive and 802.3af/at

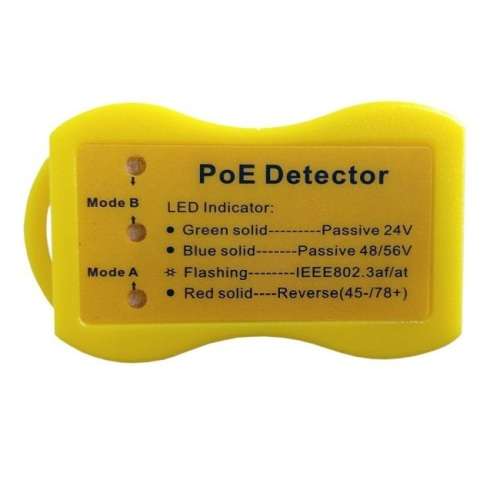

Designed for testing PoE on an ethernet cable. This pocket-sized, ergonomic PoE Detector indicates with clear LED's what type of PoE is present on a cable. Can be used with Passive Injectors, 802.3af, 802.3at, 802.3bt, 568A, 568B or reverse polarity PoE. Mode A and B are also both supported. It is a very handy tool for installers when needing to confirm whether a cable is carrying POE or not. Ergonomically designed to fit in your fingers and allow for rapid insertion and removal of the RJ45 jack, this cost effective tool is the perfect companion for any IT professional. Small enough to fit on a keyring

Specifications:

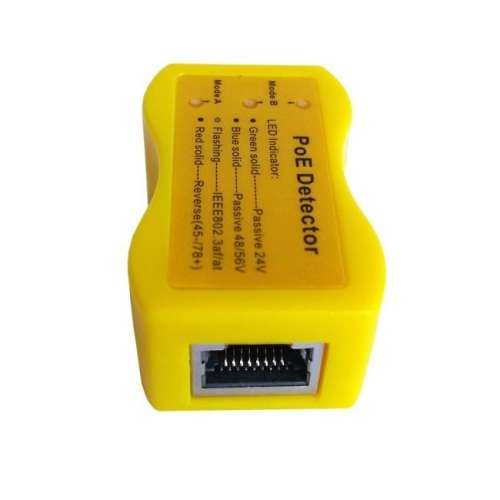

• Ethernet connector: RJ 45 Female
• Data speed: the device uses no data - power only
• Input Voltage Max: Up to 57 volts
• Internal power use: 50 mw
• Operating Temperature: 0°C - 50°C
• PoE Standard: IEEE 802.3af, 802.3at, 24 Volt Passive, 48/56 Volt Passive, Reverse Mode
• Power Input: not required
• Weight: 17 g
