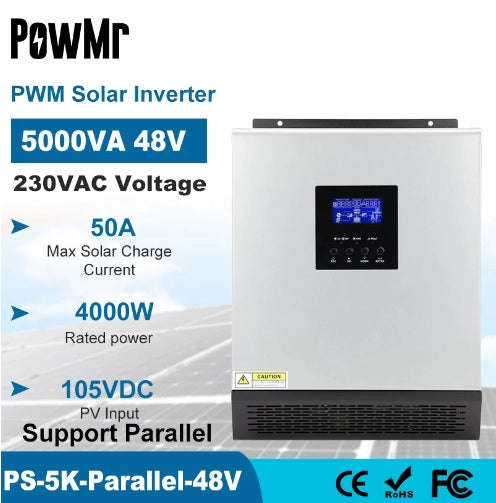

PowMr 5KVA Pure Sine Wave Inverter 4000W Hybrid Solar Inverter 48V 220V with 50A PWM Charge Controller and AC Charger, Support Parallel Connection (10005971)
The PowMr "Premium Quality" 5KVA 48v Parallel Pure Sine Wave Hybrid Solar Inverter is a high-quality and efficient solution for harnessing solar power. This inverter uses advanced technology to convert solar energy into usable electricity for your home or business. With a maximum capacity of 5KVA and a voltage of 48v, it provides a reliable and stable power supply. The pure sine wave output ensures compatibility with a wide range of electronic devices, offering clean and reliable power. This hybrid solar inverter also supports parallel operation, allowing you to scale up your system as needed. With its premium build quality and advanced features, the PowMr "Premium Quality" 5KVA 48v Parallel Pure Sine Wave Hybrid Solar Inverter is the perfect choice for maximizing the efficiency of your solar power system.
Features:
1）Pure sine wave inverter
2）Built-in PWM solar charge controller
3）Configurable input voltage range for home appliances and personal computers via LCD setting
4）Configurable AC/Solar Charger priority via LCD setting
5）Configurable AC/Solar input priority via LCD setting
6）Compatible to mains voltage or generator power
7）Auto restart while AC is recovering
8）Overload/over temperature/ short circuit protection
9）Smart charging system optimizes battery performance
10）Cold start function
| MODEL | PS-5K |
| Rated Power | 5000VA/4000W |
| INPUT |
| Voltage | 230VAC |
| Selectable Voltage Range | 170-280 VAC(For Personal Computers) ; 90-280 VAC(For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| OUTPUT |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 10000VA |
| Efficiency(Peak) | 93% |
| Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For home Appliances) |
| Waveform | Pure sine wave |
| BATTERY & AC CHARGER |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 60 VDC |
| Maximum Charge Current | 60A |
| SOLAR CHARGER |
| Charging Current | 50A |
| Maximum PV Array Power | 2400W |
| Maximum PV Array Open Voltage | 105 VDC |
| Standby Power Consumption | 2 W |
| PHYSICAL |
| Dimension, D×W×H (mm) | 128×272×355 |
| Net Weight (kgs) | 11.5 |
Package Contents:
The unit x 1 User Manual(English) x 1
Communication cable x 1
