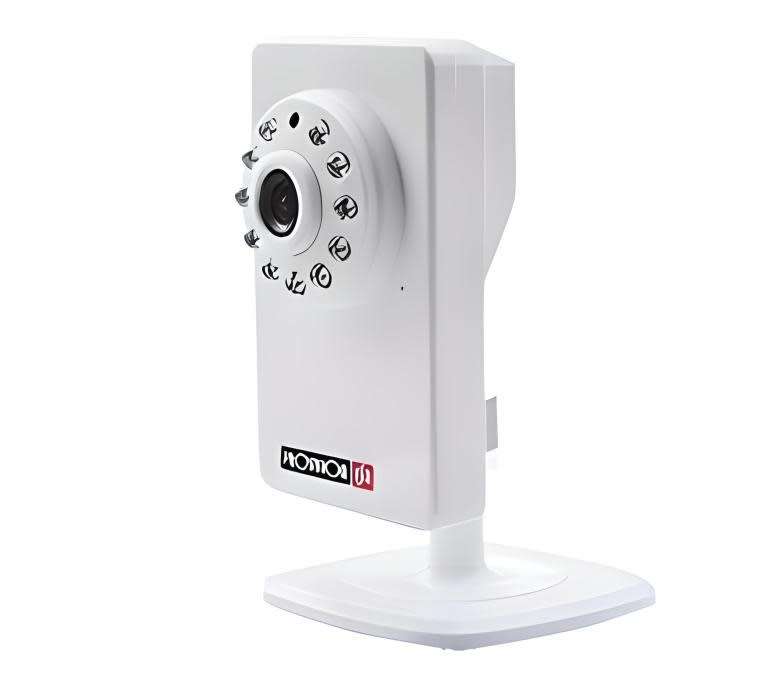

Provision ISR IP Camera | Easy Setup | View From Android & Iphone | F-717

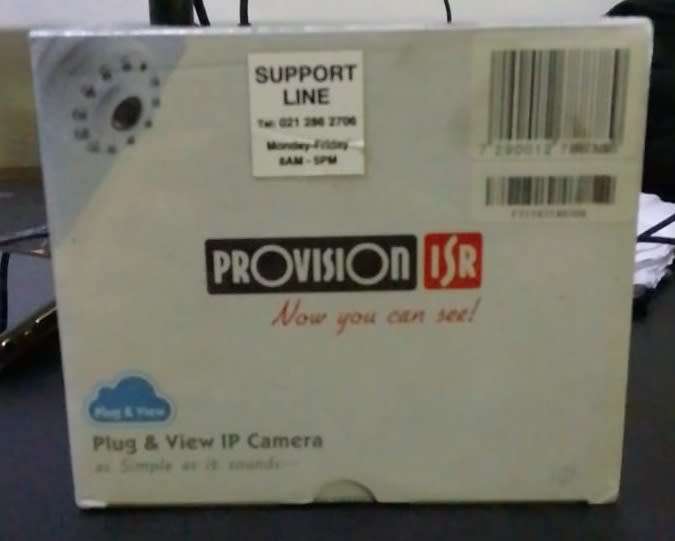

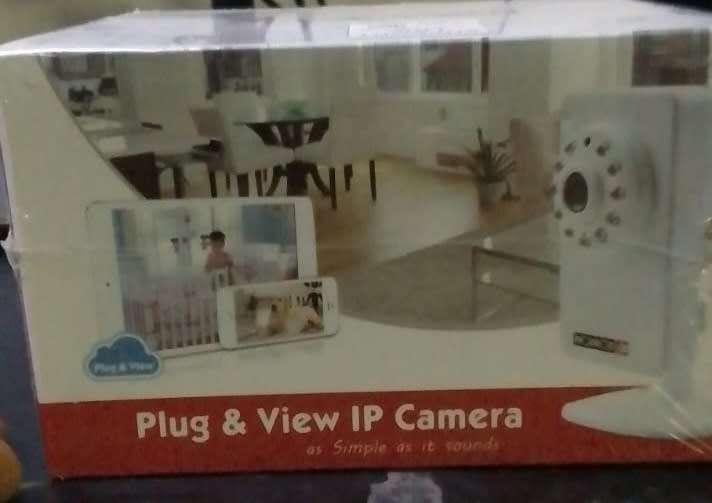

BRAND NEW BOXED AND SEALED IN PLASTIC

Features:

1 Mega-Pixel camera

Day & night vision

Wide angle- 3.6mm lens

Advanced H.264 Compression

2 Way Audio with Built-in Speaker/Microphone

Local recording on Micro SD

Wireless support (802.11b/g/n)

Motion detection

iPhone/iPad/Android viewer app

iOS/Android Mobile App:

Live view

Remote playback

Local SnapShot/video recording

Specificationsspacer

Product Code F-717spacer

Video

Image Sensor 1/4" CMOS Sensor

Effective Pixels 1280x720

Electronic Shutter 1/50s ~ 1/100000s

Day & Night ICR

Min. Illumination 0 Lux (IR ON)

Audio

Audio compression ADPCM

Communication Two Way Audio

Image Enhancement

Image Settings AWB

Auto Exposure

Automatic Gain

Saturation & Contrast Adjustable

WDR Range No

Noise Reduction 2D-DNR

Image Orientation Mirror/Flip

Privacy Zone No

Motion Detection Yes

Compression

Video Compression H.264

Resolution 720P (1280×720), VGA (640×480), QVGA (320×240)

Multi-stream 1280x720 (25/30fps) / 640×480 (25/30fps) / 320x240 (25/30fps)

Bit rate 32Kbps ~ 4Mbps

Encode Mode VBR

Image Quality Five levels under VBR

Housing

IR Distance 10m (12pcs)

Lens 3.6mm

Iris Fixed Iris

Lens Mount ?14 mount

Water-proof No

Bracket Desk/Wall mount

Dimensions 144L×119W×84H mm

Weight(gross) 55g

Connectivity

Network RJ45 + WiFi (802.11 b/g/n)

Power DC Socket

Analog Video Output No

AudioConnectivity 1Ch Input

SD Card Support TF (32GB Max)

RS485 No

Alarm No

Network

Remote Monitoring Provision PnV Mobile App

User Access Supports simultaneous monitoring for up to 4 users with

multi-stream real time transmission

Network Protocol TCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP

ONVIF Yes

Ethernet 100Mbps

PoE No

Others

Power Supply DC5V

Work Environment -10°C~50°C, 10%~90% Humidity
