Specification:
Brand: RadioMaster

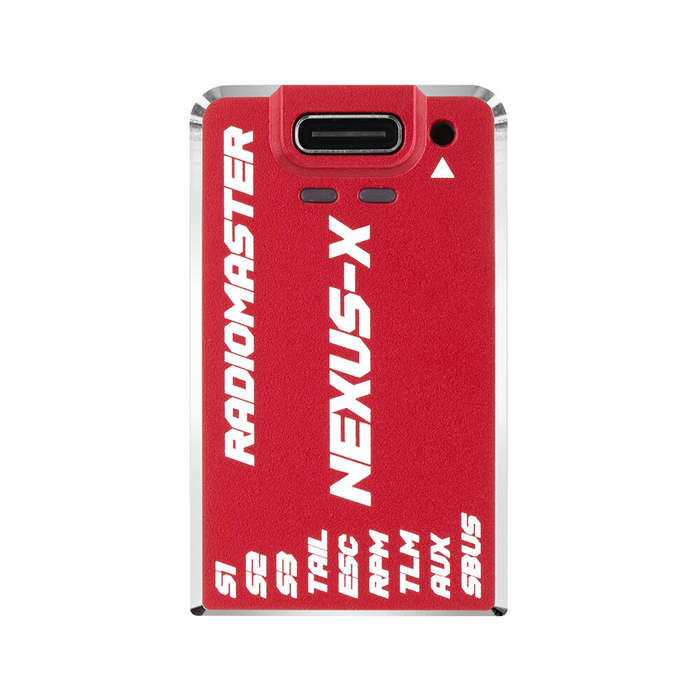

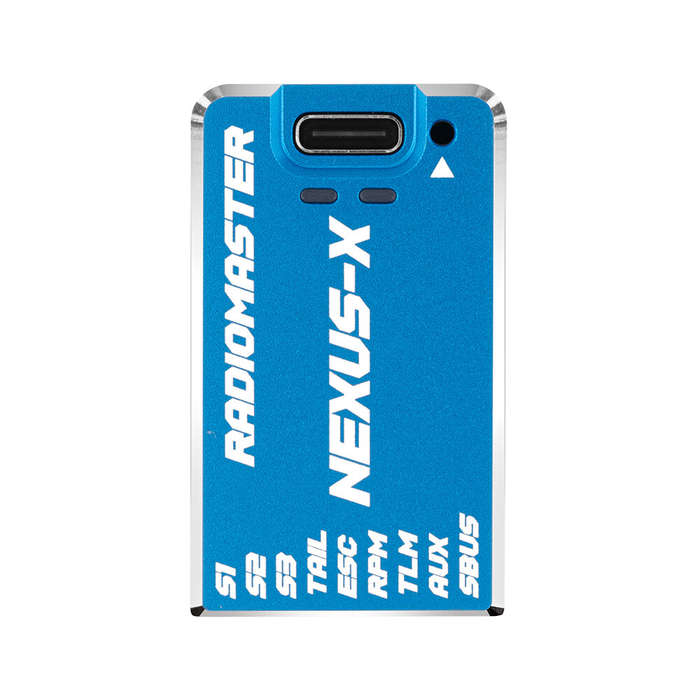

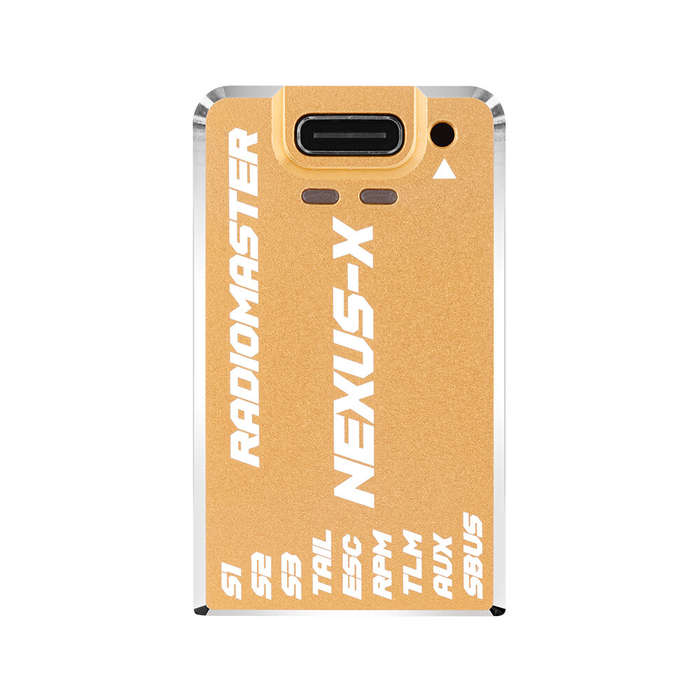

Product Name: Nexus-X Helicopter Flight Controller
Firmware: Rotorflight 2.2
MCU: STM32F722RET6
Gyro (IMU): ICM42688P
Flash Memory: 256MB (W25N02KVZEIR)
Built-In Barometer: SPL06-001
UART Ports: 5 (S.BUS[UART1], TELEM[UART2], PORT-A[UART4], PORT-B[UART6], PORT-C[UART3])
Servo Ports: S1, S2, S3, Tail (Supports up to 12V)
RPM Sensor: 1 (From ESC)
AUX Port: 1
External Voltage Input: 3.6-70V
Receiver Compatibility: CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUS, EXBUS, PPM, MSP
Power Supply Voltage (DC): 5-16V
Port Power Output (A-B-C): 5V - 1.5A
Telemetry Protocols: S.BUS, HoTT, S.Port, MSP, EdgeTX, ELRS
ESC-Compatible Protocols: PWM, Oneshot, Multishot, Dshot
Tail Servo Support: 760s/1520s Servo
Tail Motor Drive Support: Yes
Dimensions: 44.70 x 26.50 x 12.30mm
Weight: 20.6g
Feature:
- Optimized for Rotorf
