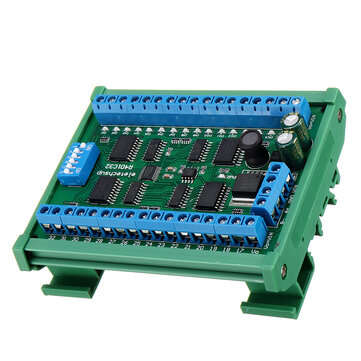

R4D1C32 12V 32 Channel DIN Rail RS485 Controller Modbus RTU Protocol Remot... (TYPE: WITHDINRAILBOX)

SELECTED OPTION:
TYPE: WITHDINRAILBOX

Specification: ? 1. Working voltage: DC 6.5-30V (9V 12V 24V) 2. Standby current All channels are closed) 5MA,All channels open 57MA. 3. ``Open`` ``Close``? ``Momentary`` ``Self-locking`` ``Interlock`` ``Delay`` 6 Commands 4. MODBUS RTU command 5. Under the ``Delay`` command ,the maximum delay is 255 seconds 6. MODBUS commands can be made serial HyperTerminal (serial assistant)? OR ``Modbus Poll`` Enter; 7. Under the MODBUS command mode, it can support up to 64 devices in parallel 8. The default baud rate is 9600BPS. The baud rate can be modified by instructions: 1200 2400 4800 9600 19200BPS 9.? Size: 100 * 72 * 20mm(Only PCB Board);120 * 88* 42mm(with Din Rail Box) 10. Weight: 65g(Only PCB Board);144g(with Din Rail Box) 11. Maximum load: The maximum drive current of each channel is 300MA
DIN rail Box :
Product model: UM72 Color: green Width: suitable for PCB board width UM72(72mm) Insulation grade: flame-retardant VO grade Backplane length: suitable for 100 mm PCB boards Net weight: 72g Installation: DIN35 and C45 rail
Package included:
1 x Controller Board
