Radiall (R125052002) RF / Coaxial Connector, SMA Coaxial, Straight Plug

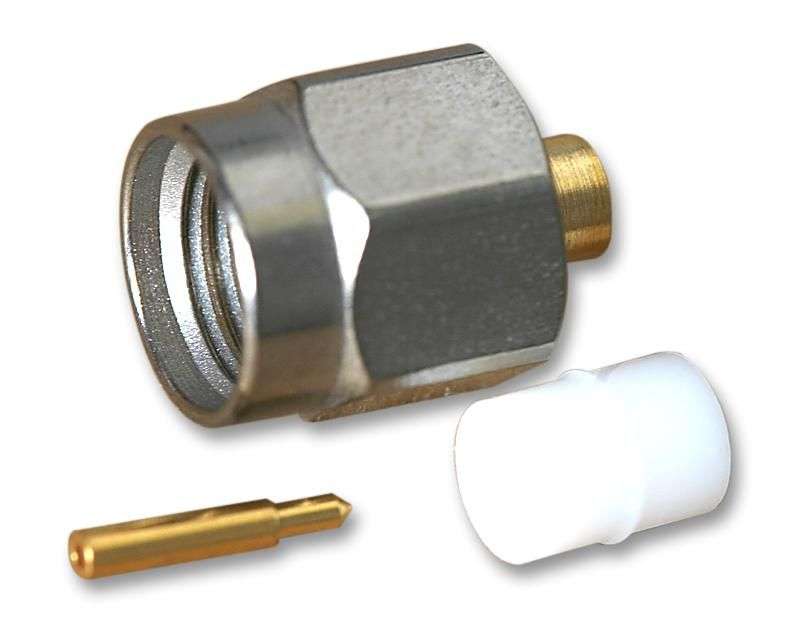

RF / Coaxial Connector, SMA Coaxial, Straight Plug, Solder, 50 ohm, RG405, BrassProduct OverviewThe R125052002 is a straight SMA Plug with gold over nickel plated brass centercontact, gold over nickel plated stainless steel body, for 0.085-inch cable.This SMA series plug has PTFE insulation, cable mounting and solder termination.The stainless steel SMA connector has been designed for applications wherereliability, durability, robustness and high frequency are very important.Radiall offers an extended frequency SMA range allowing coaxial system operationup to 27GHz. This series mates with the standard SMA series and maintains thesame mechanical characteristics (part numbers ending with 700, 701 or 702).Subminiature coaxial connectorScrew-on couplingHigh RF performanceWide hermetically sealed rangeMeets MIL-C-39012, EC 169-1, CECC 22110, CECC 22111 - 801 to 808 and BS 9210N006 standards-65 to 165°C Temperature ratingApplicationsCommunications & Networking, Test & Measurement, Aerospace, Defence, MilitaryProduct InformationConnector Type: SMA CoaxialConnector Body Style: Straight PlugCoaxial Termination: SolderImpedance: 50ohmCoaxial Cable Types: RG405Contact Material: BrassContact Plating: Gold Plated ContactsFrequency Max: 18GHzConnector Mounting: Cable MountProduct Range: -
