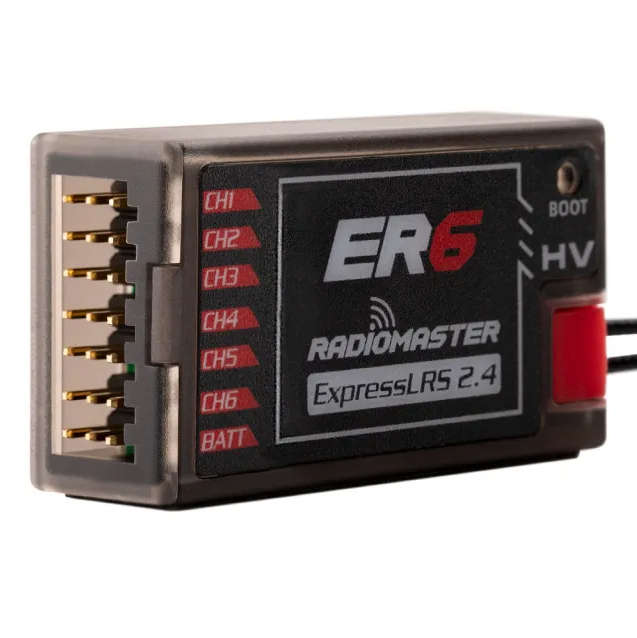

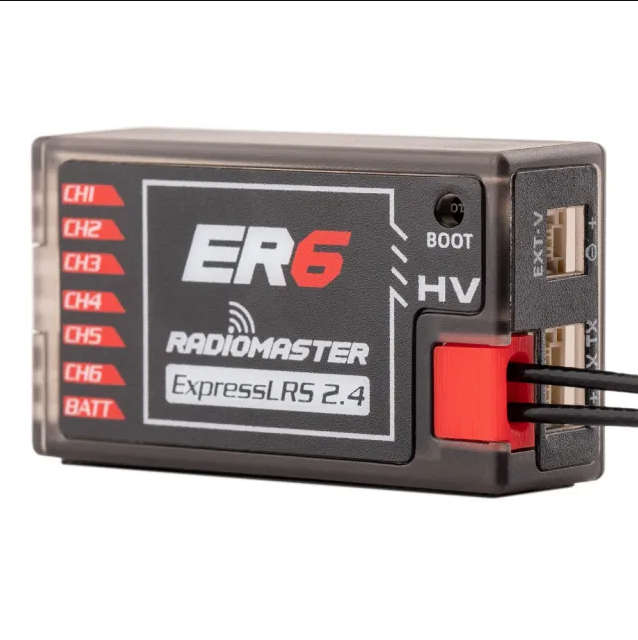

RadioMaster - ER6 2.4ghz PWM ExpressLRS 6 Channel receiver

The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.
The ER6 ELRS receiver has been specially designed for fixed-wing users. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. A 4-wire CRSF interface is provided to facilitate later expansion of telemetry sensors. The ER6 features a dual-antenna with telemetry power up to 100mw. The receiver shell adopts one-piece molding process with high structural strength.

Features
Based on the Revolutionary ExpressLRS System
High performance, high reliability, flexible configuration, fast response speed and ultra-long range
Support 6 PWM Channels
Optimized ground up PCB design
Automatically voltage telemetry of external battery voltage or built-in receiver voltage
Supports Wi-Fi updates and WEBUI configuration
High quality 2.54 mm connector
Standard 20 cm High Sensitivity Antenna

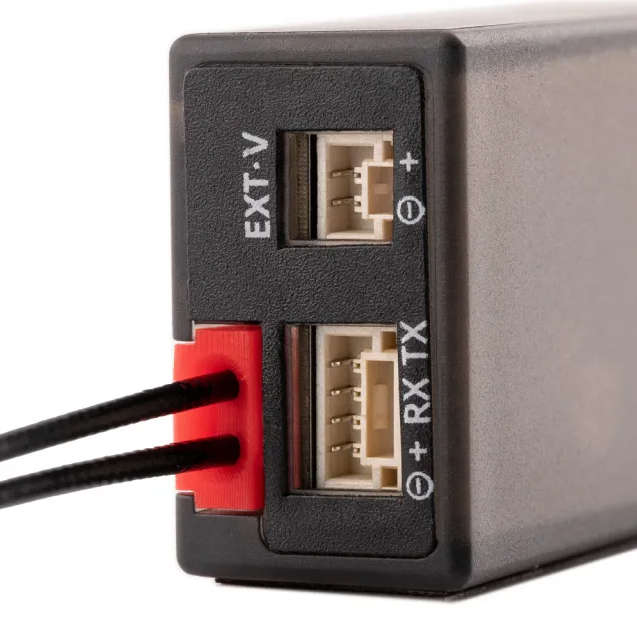

Reserve 4pin CRSF input port
Shell adopts one-piece molding process with high structural strength
For fixed-wing aircraft and more

Specification
Item: ER6 2.4GHz ELRS PWM Receiver
Power supply: DC 4.5 - 8.4V

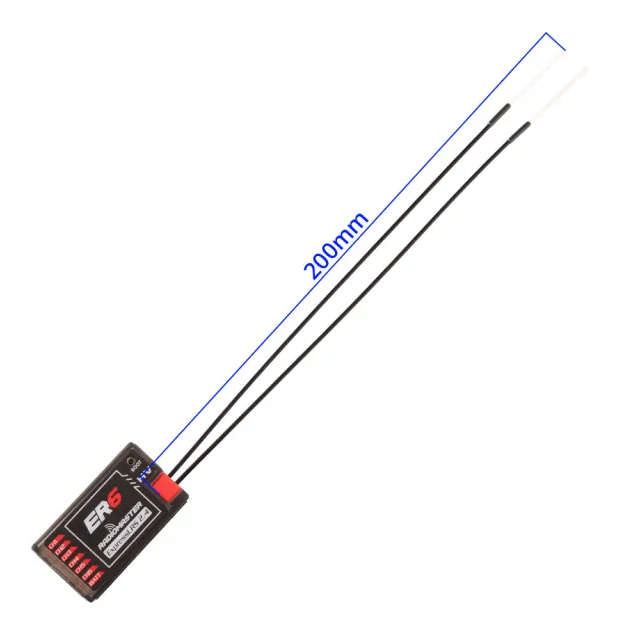

Antenna type: 20cm high sensitivity dual antenna
Wireless protocol: ExpressLRS 3.3.0 pre-installed
Output channel: 6CH PWM
Telemetry power: maximum 100mw (LUA Adjustable)
Telemetry Battery voltage detection range: DC 4.0 - 35V
Bus interface: CRSF
Weight: 14.5 grams
Dimensions: 43*25*15mm

Firmware:
Device Category: Radiomaster 2.4Ghz
Device: RadioMaster ER6 2400 PWM RX

Package Includes
1 * ER6 2.4GHz ELRS PWM Receiver
1 * Voltage telemetry wire (Type-B)
1 * CRSF wire
1 * ELRS- RX- SBUS wire
1 * User Card
