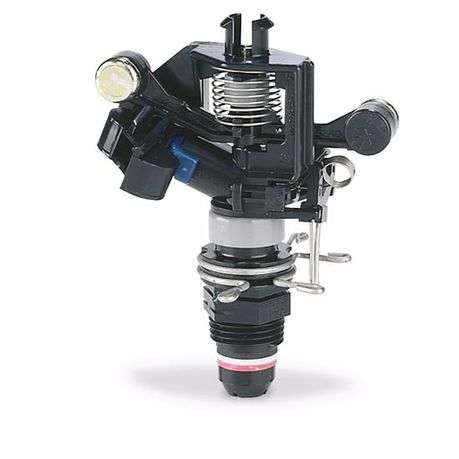

RAIN BIRD MAXI BIRD

Designed for a variety of uses where full circle sprinklers should not overthrow water into restricted areas. The body, arm, bearing sleeve and nipple are made of durable Delrin plastic.

Features:
- Proven impact drive with straight-through flow for superior performance in dirty water.
- Double-weighted arm for slower rotation and increased distance of throw.
- Adjustable arm spring for low-pressure and low-gallonage operation.
- Precision Jet tube (PJ) minimizes side splash.
- 5 Matched Precipitation Rate (MPR) nozzles and 2 low-angle (LA) nozzles.
- Interchangeable, color-coded bayonet mount nozzles.
- No tools required to change nozzles.
- FP trip permits full circle (360°) or part-circle operation (20° to 340°).
- Powerful reverse action.
- Three-year trade warranty.

Specifications:
- Precipitation Rate: 7 to 31 mm/h
- Radius: 6,7 to 13,7 m
- Radius with Radius Reduction Screw: 5,4 m
- Pressure: 1,7 to 4,1 Bars
- Flow Rate: 0,34 to 1,91 m3/h; 0,09 to 0,53 l/s
- ½" male threaded inlet
- Standard trajectory angle nozzles: 06-red; 07-black; 08-blue; 10-yellow; 12-beige
- Nozzle outlet trajectory is 23° for 06, 07, 08, 10, and 12 nozzles.
- Low angle (LA) nozzles: 07 LA-black; 10 LA-yellow
- LA nozzle outlet trajectory is 11°.
