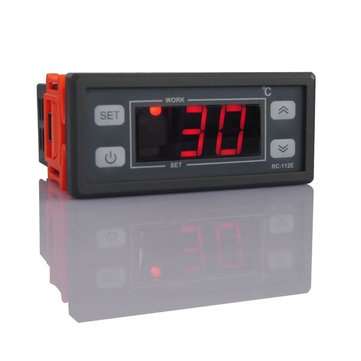

RC-112 220V/110V 10A Digital LCD Thermostat Regulator Temperature Controller (VOLTAGE: 220V)

SELECTED OPTION:
VOLTAGE: 220V

Features :

A mini temperature controller.
With large and clear LCD display for better readability.
Wide temperature measuring range.
Heating and cooling control.
Temperature calibration function.
Delay protection function.
All parameters can be set to default setting after short circuit.
Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, bolier, steamer, industrial equipments and other temperature-controlled systems.

Specifications :

Temperature measuring and controlling range : -40 - 99ﾣC
Relay capacity of Compressor options : 10A
Power options : 220VAC, 110VAC
Input : 1 NTC sensor; sensor wire : 2m(standard)
Accuracy : ±1ﾣC; Resolution : 1ﾣC
Consumption : a3W
Cut-out size : 71 x 29(mm)
Ambient requirements : temperature : -10 - 60ﾣC; humidity : 20 - 85% (No condensate)

Code	Function	Setting range	Default	Unit
HC	Mode option	C : refrigeration H : heating	C	/
D	Controlling-temp. differential	1 - 15	3	a
LS	Lower Temp.limit	-40 - settung Temp.	-40	a
HS	Upper Temp.limit	Setting Temp. - 99	99	a
CA	Temp. calibration	-5 - 5	0	a
PT	Compressor delay	0 - 15	3	Min

Package includes :

1 x RC-112 Temperature Controller ( 110V, 220V for optional~)
1 x 2M NTC sensor
1 x User manual



Details pictures :









, , , , , , ,
