RC-114M 220V/10A -30~300 Digital Temperature Controller Thermostat Regulator with Temperature Sen

Features: LED display. Best cost-effective. Traditional design. Specification:
Temperature measuring range: -30~300ﾣC Temperature controlling range: -30~300ﾣC Load capacity: a10A/220V/50HZ Power options: 220VAC/50HZ Input: 1 NTC sensor Sensor wire: 2m(standard) Accuracy: ±1ﾣC Resolution: 0.1ﾣC Consumption: a3W Cut-out size: 75 x 34.5 x 85mm Ambient requirements: temperature: -10~60ﾣC; humidity: 20~85% (No condensate)

Function Menu:

Code	Function	Setting Range	Default	Unit
HC	Mode	C:cool H:heat	C	/
D	Different	1-80	5	a
LS	Low Temp.	-30-Setting Temp.	-30	a
HS	High Temp.	Setting Temp. -300	300	a
CA	Calibration	-7.0~7.0	0.0	a
PT	Delay Time	0~7	1	Min

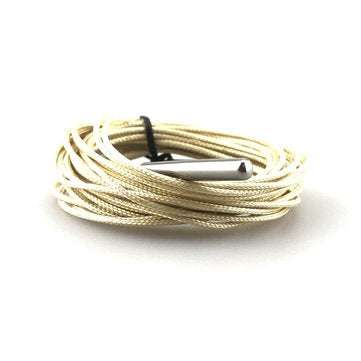

Package Included: 1 x Temperature Controller ( No including retail box ) 1 x 2m Temperature sensor 1 x Instruction Manual

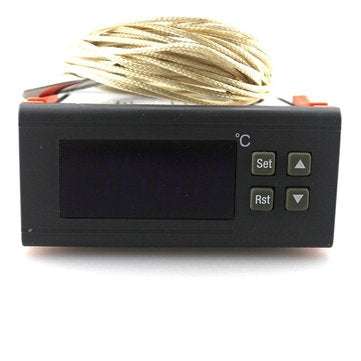

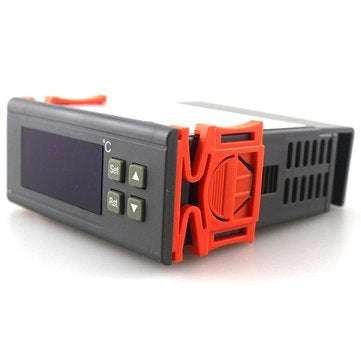

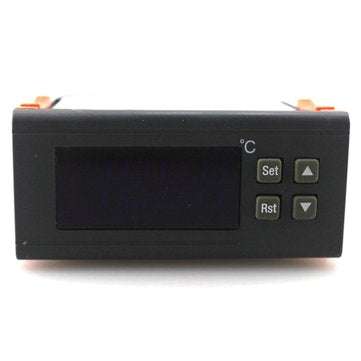

Detail Pictures:
