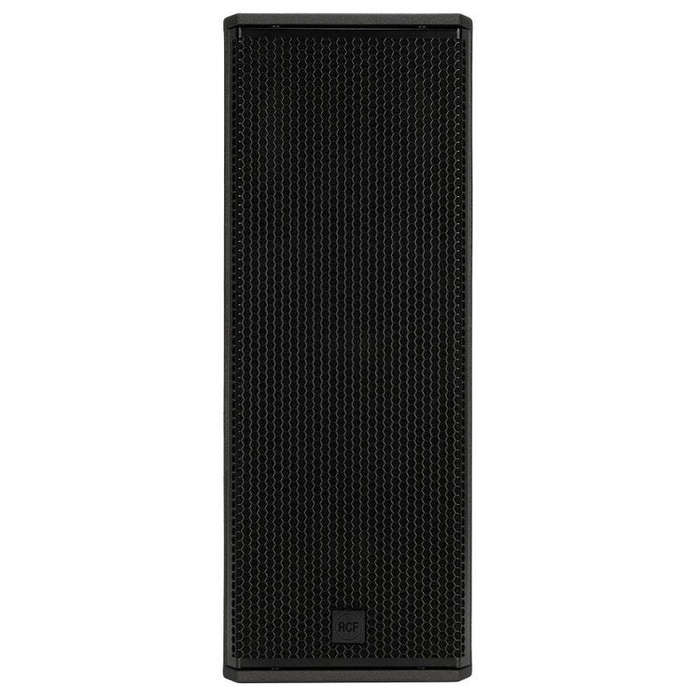

RCF KXL 4-A

ACTIVE TWO-WAY ARRAY SPEAKER

• 135 dB max SPL

• Rotatable 100° x 25° TRW waveguide

• LF 2 x 10'' neodymium woofer, 3.0" voice coil

• HF 4.0" titanium dome, neodymium comp. driver

• 2 x Class-D amplifiers, 3200 Watt total power

• DSP Processing with FiRPHASE and BMC

• RDNet Networked Management

• Advanced Rigging and powerCON TRUE1 TOP mains connectors

The KXL 4-A is a compact, flexible high-output 2-way active speaker engineered for professional users, combining precise directivity, high SPL capability, and advanced rigging for both vertical and horizontal array configurations. The low-frequency section features two 10" neodymium drivers in a bass-reflex design; the high-frequency section comprises a neodymium compression driver with a 4" titanium dome, coupled to a rotatable 100° x 25° True Resistive Waveguide. Transducers can be swapped (firmware update required). An integrated two-channel 3200 W Class D amplifier with proprietary DSP processing and remote management via RDNet enables optimal system performance. Its weatherproof, multifunctional enclosure supports versatile deployment for ground-stacked, pole-mounted, or flown applications.
