Name: RCF TTS 15-A
SKU: TTS 15-A
Price: 35899.00 ZAR
Availability: InStock

RCF TTS 15-A

New

2 available

Only 2 left – grab it before it’s gone!

R35,899.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Soundselect659

98.10 % Positive ratings

Buyer protection

How you're covered

Condition

New

Location

South Africa

Product code

TTS 15-A

Bob Shop ID

652479517

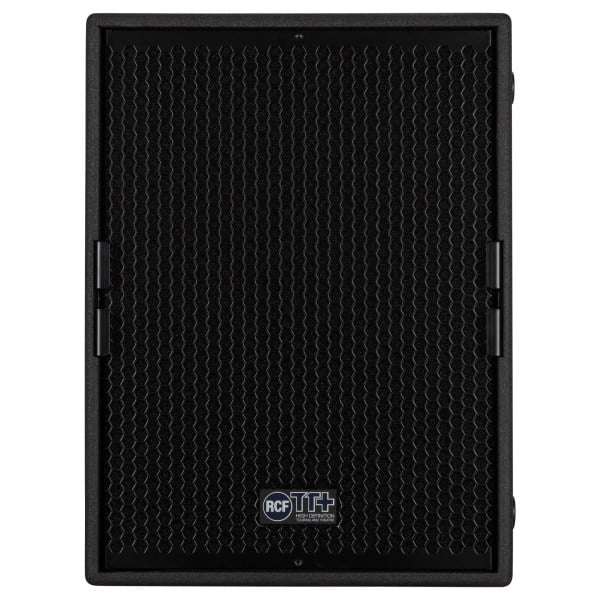

The black RCF TTS 15-A is a 15 2200W active subwoofer designed to provide low-frequency reinforcement for A/V system installers, audio engineers, and DJs in outdoor environments or houses of worship, concert venues, and live stage applications. Its Class-D amplifier delivers 2200W of power to the 15 woofer, which produces a frequency response of 40 to 400 Hz and is hyper-vented for heat dissipation.

32-bit DSP processing yields simple adjustment of input gain, delay, and crossover presets. RDNet control via EtherCon I/O allows comprehensive remote parameter control and system monitoring. XLR and powerCON inputs and outputs are employed for straightforward integration with standard PA components.

The TTS 15-A boasts a sturdy wood cabinet, built-in carry handles, and M20 pole sockets for tour readiness.

Low-Noise Electronics

The switch-mode power supply Class-D amplifier integrates a low-noise, 32-bit DSP circuit, controlled through the RCF RDNet network to handle the clipping limiters, RMS limits, polarity, amplitude, timing, and equalization. All settings, monitoring, and advanced features are available inside the integrated RDNet Networked Management software. The rear-panel encoder adjusts volume, delay, and presets.

Sturdy Cabinet

The cabinet is made of high-quality birch plywood with weatherproof treatments. The sub is stackable and lightweight for easy setup and tear down. The polyurea coating and rugged structure of the cabinet survive long-term use and transportation while the separate housing for the amplifier guarantees component efficiency and reliability. A pole receptacle on top and side allows the woofer to be deployed in various situations.

Hyper-Vented Woofer

In order to dissipate the heat generated by the powerful voice coil, RCF engineers have developed an internal ventilation system with low power compression. The Hyper Ventilation System is the result of a complex combination of ventilation ducts in the voice coil former, in the magnetic structure, and in the woofer's basket. Demodulation rings reduce the harmonic and intermodulation distortion due to voice coil displacement and, as input current varies, the system inductances are more linear. The cone is water-resistant.

Vented Ports

The airflow in the vented ports suffers the turbulence of the air due to the speed of air. The improved vented port is a proprietary solution that enhances aerodynamic behavior of the air, thereby gaining efficiency and reducing distortion.

RDNet Control

RDNet is a proprietary protocol that provides straightforward monitoring and intuitive control of the audio system down to every device and object. Each device has its own DSP, giving the possibility to address presets or parameters specific to single or groups of objects. A network user can change level, delay, EQ, and advanced subwoofer configurations.

Features

For Live Stage, Theater, and Clubs
15 Hyper-Vented Woofer
40 to 400 Hz Frequency Response
2200W of Class-D Amplification

Specs

Acoustical specifications

FREQUENCY RESPONSE:

40 Hz ÷ 400 Hz

MAX SPL @ 1M:

134 dB

Transducers

WOOFER:

15", 3.0" v.c

Input/Output section

INPUT SIGNAL:

bal/unbal

INPUT CONNECTORS:

XLR, RDNet Ethercon

OUTPUT CONNECTORS:

XLR, RDNet Ethercon

INPUT SENSITIVITY:

+4 dBu

Processor section

HI-PASS FREQUENCIES:

40 Hz, 50 Hz

LOW-PASS FREQUENCIES:

Variable from 60 Hz to 400 Hz

PROTECTIONS:

Thermal, RMS

LIMITER:

Fast Limiter

CONTROLS:

Gain, Eq, Prest Switch, Out Delay

RDNET:

Yes

Power section

TOTAL POWER:

2200 W Peak, 1100 W RMS

COOLING:

Convection

CONNECTIONS:

Powercon IN/OUT

Standard compliance
