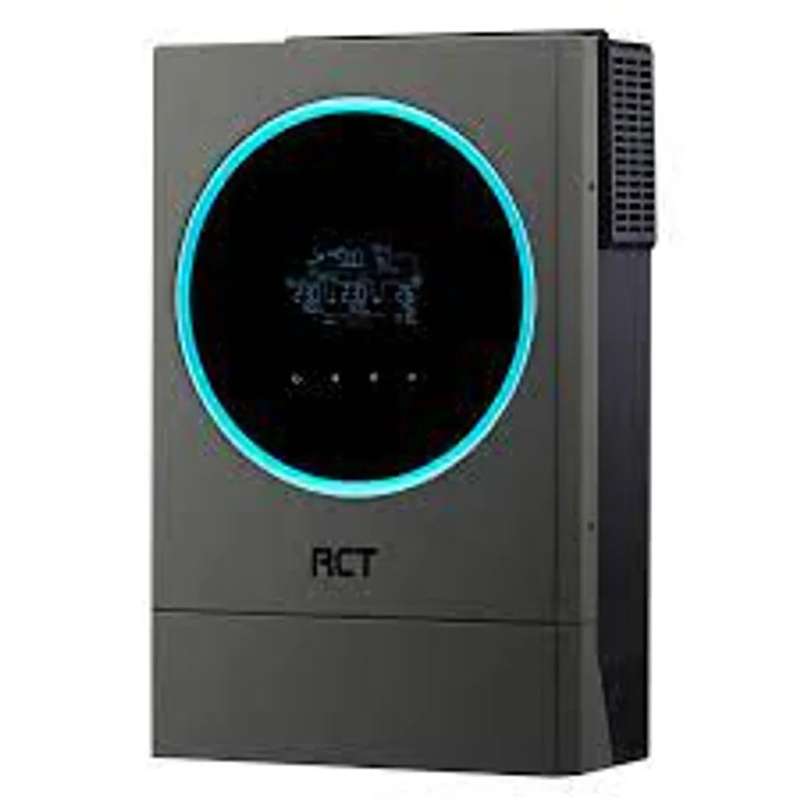

RCT Axpert 5.6K MK4 Twin 6kVA / 6kW Pure sunce Inverter 48V with Dual AC Output, WiFi, Up to 9 units parallel capability, 10ms transfer time, 6000W Maximum PV Array Power, 500 VDC Maximum PV Array open Circuit voltage, USB / RS232 / RS485 / WiFi / dry-contact, Touchable Button with large 4.3 colored LCD, Battery Independent Function
Overview:
Axpert MKS 4 TWIN 5KVA/6KVA
Dual outputs for smart load management
Axpert MKS 4 TWIN is occupied with two outputs. The second output can be scheduled on/off, setting cut-off voltage or SOC and discharging time via LCD setting. Axpert MKS 4 TWIN is equipped with MPPT solar charge controller to maximize and regulate DC power from the solar array for charging the battery bank.
Features:
Maximum PV input current 27
Dual outputs for smart load management
Customizable status LED ring with RGB lights
Touchable button with large 4.3 colored LCD
Wide DC input range
Built-in WiFi for mobile monitoring (App is available)
Reserved communication port for BMS
Battery independent function
Parallel operation with up to 9 units
Specifications:
MODEL Axpert MKS 4 TWIN 6K
Rated Power 6000VA/6000W
Parallel Capability Yes, up to 9 units
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
Frequency Range 55/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230 VAC ± 5%
Efficiency (Peak) 93%
Transfer Time 10 ms (For Personal Computers); 20 ms (For Home Appliances)
Waveform Pure Sine Wave
Overload capacity 5s@150% load; 10s@110%~150% load; 100ms@200% load
BATTERY
Battery Voltage 48 VDC
Floating Charge Voltage 54 VDC
Overcharge Protection 66 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type MPPT
Maximum PV Array Open Circuit Voltage 500 VDC
Maximum PV Array Power 6000 W
MPPT Range @ Operating Voltage 120 VDC~500 VDC
Maximum Solar Charge Current 120A
Maximum AC Charge Current 120A
Maximum PV Input Current 27A
PHYSICAL
Dimension, D X W X H (mm) 140 x 295 x 468
Net Weight (kgs) 12
Communication USB/RS232/RS485/WiFi/Dry-contact
OPERATING ENVIRONMENT
Operating Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
