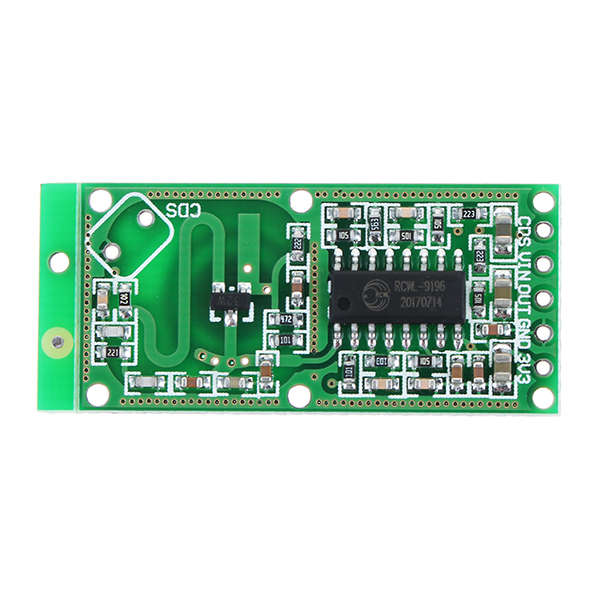

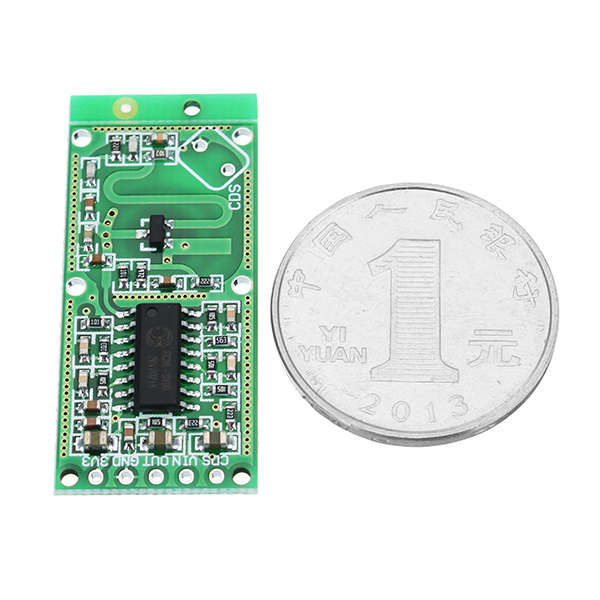

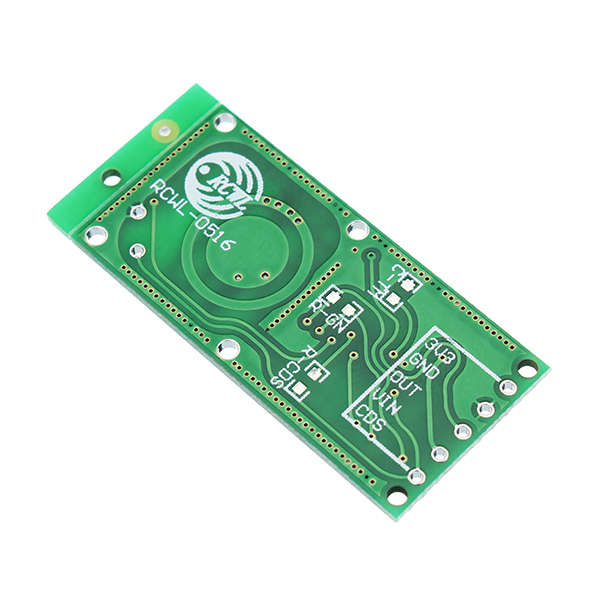

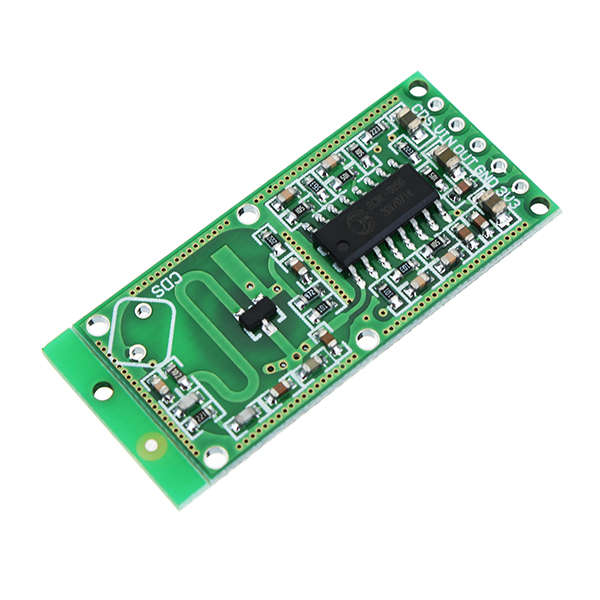

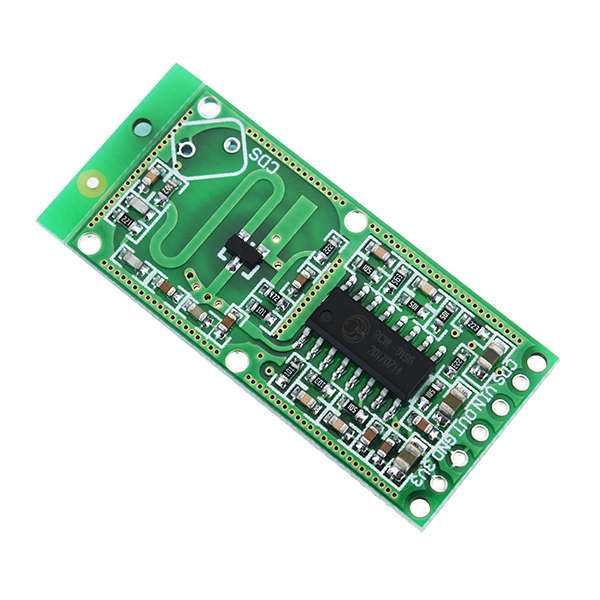

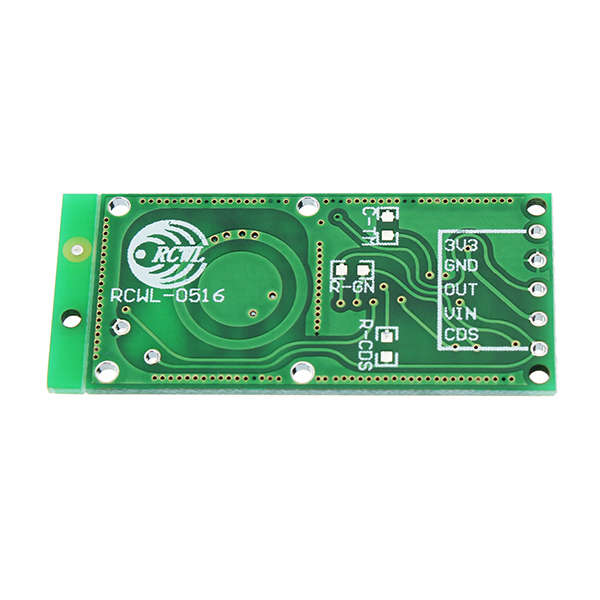

RCWL-0516 RCWL 0516 Microwave Radar Sensor Human Sensor Body Sensor Module Induction Switch Module

New

20 available

R336.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3921

92.46 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

651237366

Features:

1, Transmission signal processing control chip RCWL-9196
2, Wide operating voltage range: 4.0-28.0V
3, Compared with the traditional infrared feeling PIR, with the penetrating detection capability
4, Block time, distance adjustable
5, Output 3.3V power supply
6, Board size: 35.9mmx17.3mm

Application Design Note:

1, the sensing face in front of the gold without any shelter.
2, front and rear sensing surface space to set aside more than 1CM
3, the module carrier plane and install as flat line
4, a certain application of effective detection area
5, the component side of the module is positive sensing face, the opposite is negative sensing surface. Negative sensing surface sensing less effective
6, microwave modules can not be large-scale applications in the same area, otherwise there will be mutual interference. Between single individuals over distance greater than 1M

Package included:

1x Microwave Radar Sensor Module
