Specification:

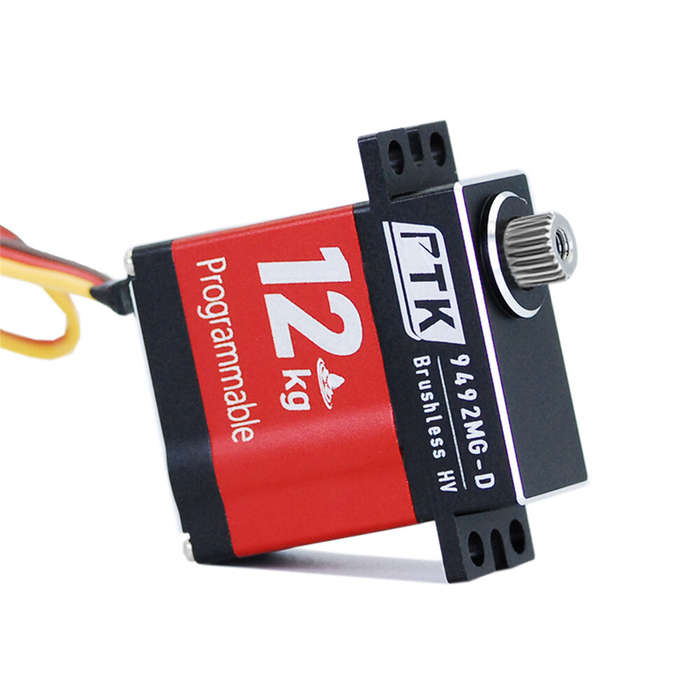

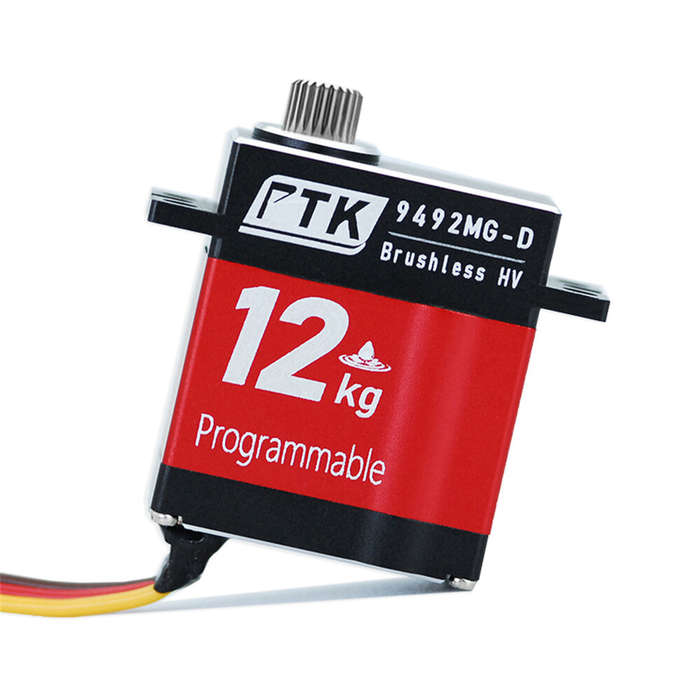

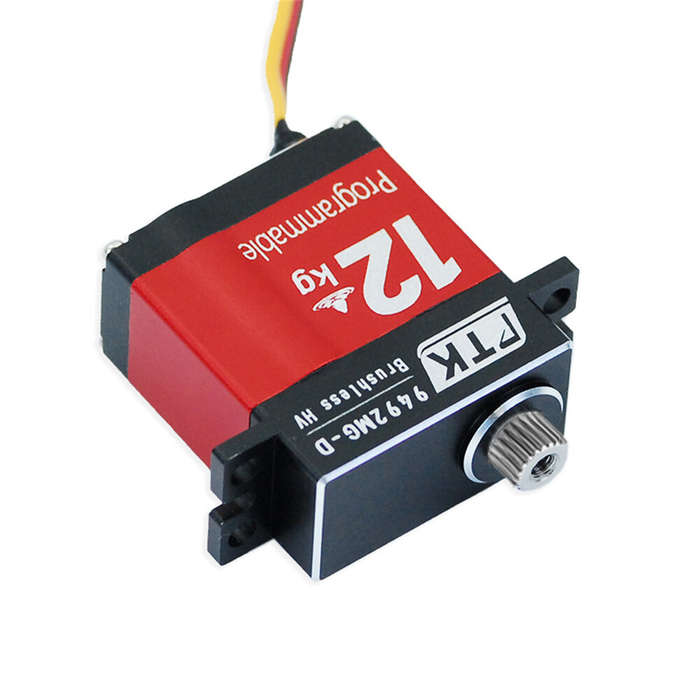

Model: PTK 9492 MG-D 12KG RC Servo
Gear Material: Stainless Steel
Case Material: Middle Aluminum
Operating Temperature: -15°C To +70°C
Operating Travel: 180° ± 10°
Refresh Rate: 333Hz
Net Weight: 21g
Pulse Width: 500 To 2500 Sec
Motor Type: Brushless Motor
Dead Band: 2 s
Neutral Position: 1520 s
Size: 23mm × 12mm × 26.8mm
Bearing: Double Ball Bearing
Operating Voltage: 4.8V To 8.4V
Wire: JR 250mm
Mechanical Limit Angle: No Limit
Programmable: Yes
Operating Speed @ 4.8V: 0.113 Sec/60°
Operating Speed @ 6.0V: 0.095 Sec/60°
Operating Speed @ 7.4V: 0.066 Sec/60°
Operating Speed @ 8.4V: 0.062 Sec/60°
Stall Torque @ 4.8V: 7.6 Kg-Cm
Stall Torque @ 6.0V: 9.5 Kg-Cm
Stall Torque @ 7.4V: 10 Kg-Cm
Stall Torque @ 8.4V: 12 Kg-Cm
Package included:
1x RC Servo
