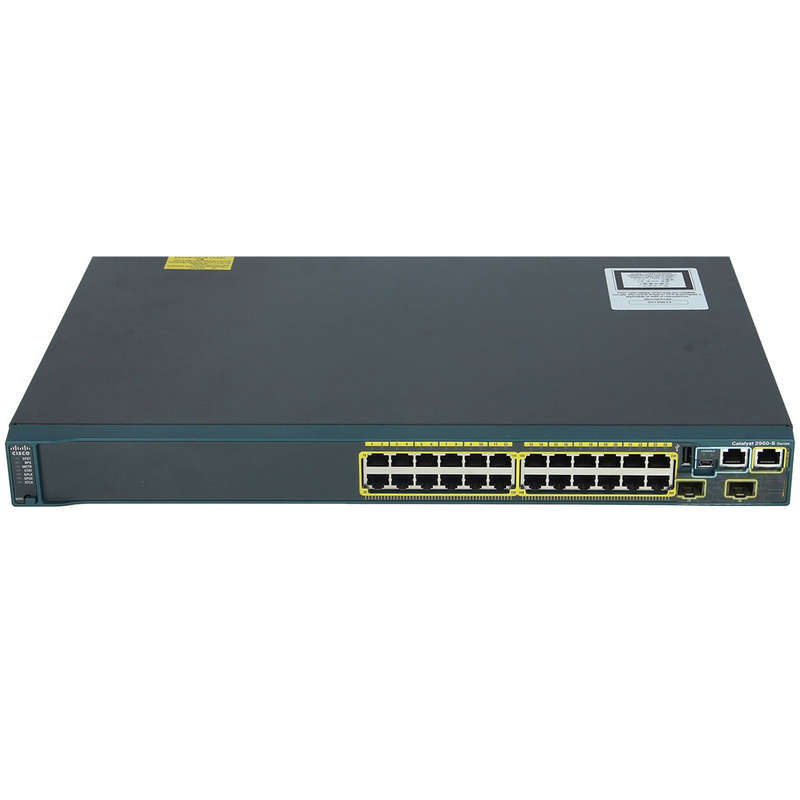

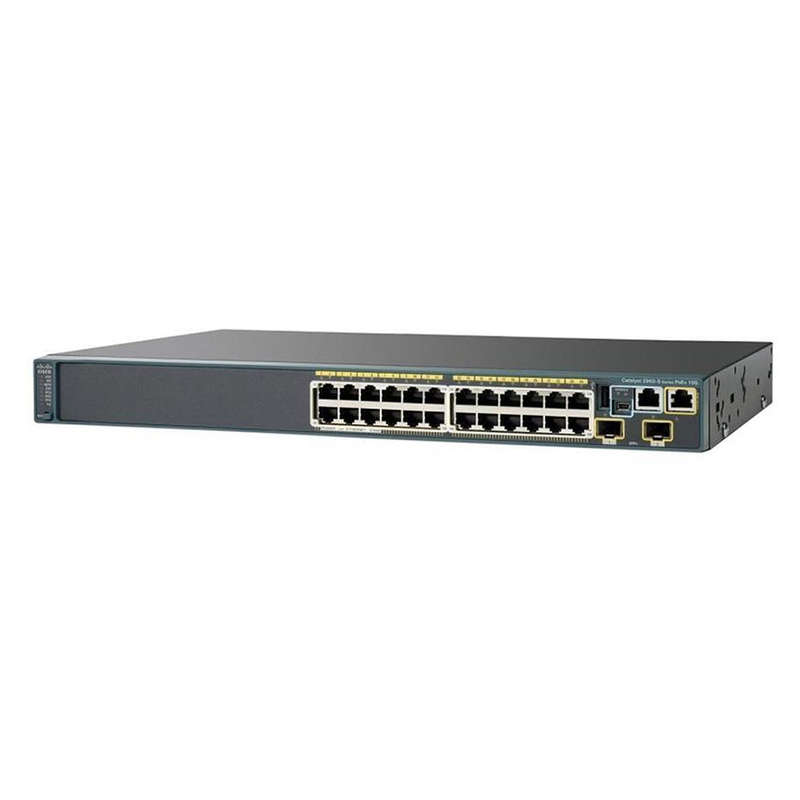

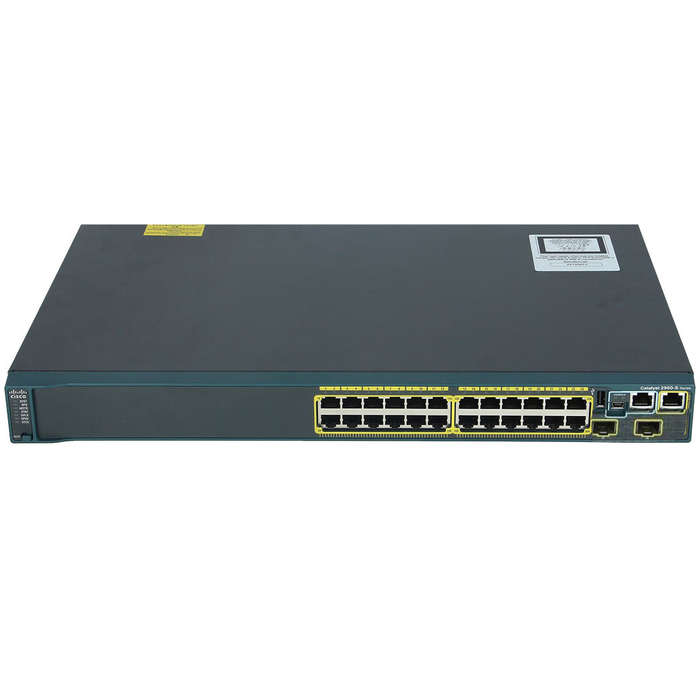

WS-C2960S-24PD-L |
General Information |
Device Type | Switch - 24 ports - Managed |
Enclosure Type | Rack-mountable - 1U |
Ports | 24x 10/100/1000 + 2 x 10G SFP+ |
Power Over Ethernet (PoE) | PoE (370Watt) |
Performance | Switching capacity: 176 Gbps ¦ Forwarding performance 65.5Mpps |
MAC Address Table Size | 16K entries |
Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH |
Encryption Algorithm | SSL |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
Features | Layer 2 switching, auto-sensing per device, dynamic IP address assignment , power over Ethernet (PoE), auto-negotiation, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), PoE+, Link Aggregation Control Protocol (LACP), Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at |
RAM | 128 MB |
Flash Memory | 64 MB Flash |
Status Indicators | Port status, link activity, port transmission speed, port duplex mode, power, system |
Expansion / Connectivity |
Interfaces | 48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE ¦ USB: 2 x 4 PIN USB Type A ¦ 1 x console - mini-USB Type B - management ¦ 1 x console - RJ-45 - management ¦ 1 x 10Base-T/100Base-TX - RJ-45 - management ¦ 4 x SFP (mini-GBIC) |
Expansion Slot(s) | 1 (total) / 1 (free) x Stacking Module |
Power |
Power Device | Power supply - internal |
Voltage Required | AC 120/230 V (50/60 Hz) |
Power Consumption Operational | 55 Watt |
Miscellaneous |
Width | 44.5 cm |
Depth | 38.6 cm |
Height | 4.5 cm |
Weight | 5.77 kg |
| |
WARRANTY: | |
6 Months | |
