Specification:

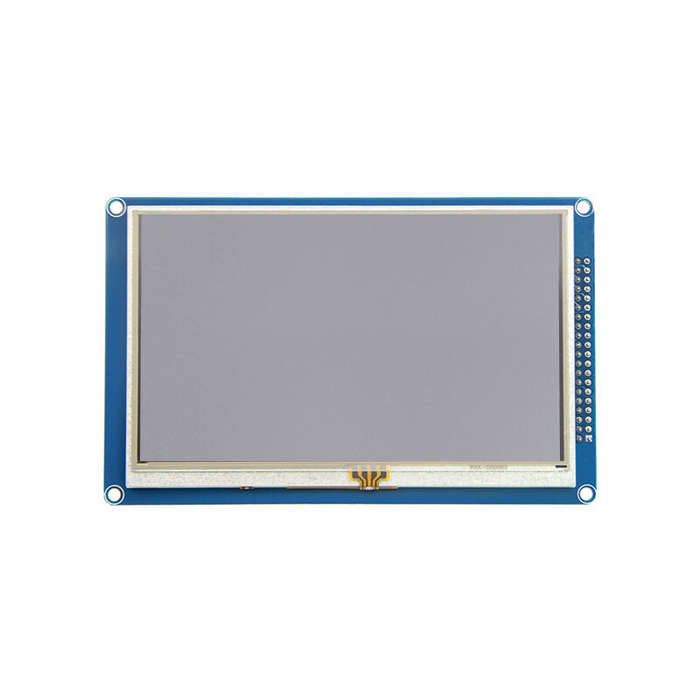

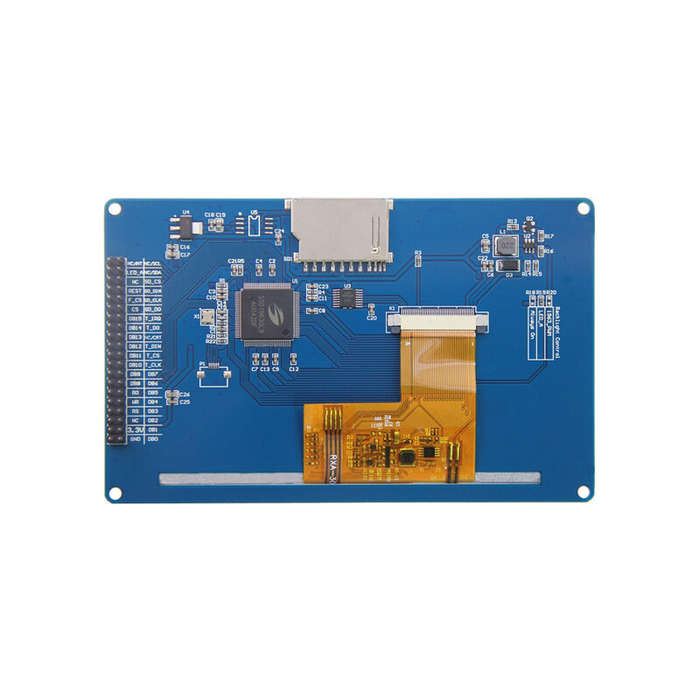

Model: M8013
Display Size: 5.0 inch
Resolution: 800x480 pixels
Color Display: RGB565 65K colors
Driver IC: SSD1963
Touch Screen Type: Resistive touch (XPT2046)
Effective display area (AA area): 108.00x64.80(mm)
Module PCB base plate size: 133.50x84.00(mm)
Operating temperature: -10~60
Storage temperature: -20~70
Input voltage: 3.3V
IO voltage: 3.3V
Features:
1. 5.0-inch high-definition color screen, supports 16BIT RGB 65K color display, rich display colors
2. Supports 800x480 resolution, the display effect is very clear
3. Supports 16-bit parallel bus switching, fast transmission speed
4. Compatible with capacitive touch screen and resistive touch screen
5. Supports SPI FLASH
6. Comes with SD card slot, supports SD card expansion
7. Supports three ba
