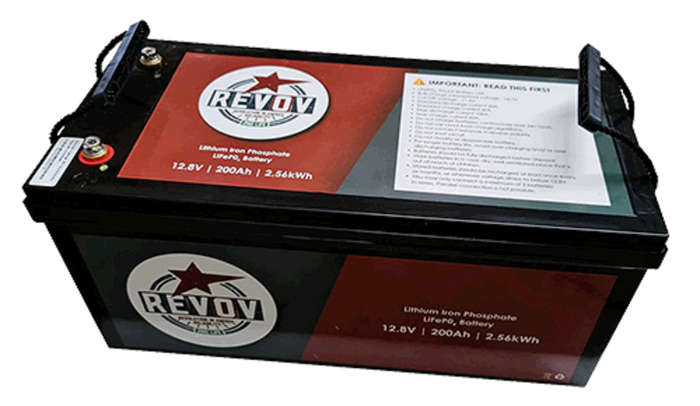

REVOV 200Ah 12.8V 12V LifePO4 Lithium-ion Battery - 2nd Life Cells / 2.56kWh WITH BLUETOOTH

The 12.8V 200 Ah battery is (LiFePO4) chemistry and has an integrated battery management system making it the perfect portable power solution.

Lithium Iron Phosphate battery technology has greater energy density and lifecycle, it is a stable chemistry that maintains a high thermal runaway, resulting in a long life at low costs .

Bluetooth APP:
XIAOXIANG

Android
https://play.google.com/store/apps/details?id=com.jiabaida.little_elephant&hl=en&gl=US

iOS:
https://apps.apple.com/us/app/xiaoxiang-bms/id1375405426

Axpert Voltages:
Bulk: 14.1v
Float: 13.7v
CutOff: 11.5v

MUST 1Kw Inverter:
Bulk: 14.1v
Float: 13.5v
CutOff: 11.5v

Failing to set the above, will VOID the warranty as the history is recorded in the BMS

Application
Camping Equipment companies
4x4 enthusiasts
24V Backup Systems

Specifications
Nominal Capacity: 200Ah
Nominal Energy: 2560Wh
Nominal Voltage: 12.8V
End of Discharge Voltage: 11.5V
Standard Charge Voltage: 14.1±0.2V
Float Charge Voltage: 13.7V
Standard Charge Current: 40A
Recommended Continuous Current: 70A ( Confirmed by Revov Technical Department )
Max Discharge Current: 100A ( Confirmed by Revov Technical Department )
BMS peak Current: 110A, 0.5Sec ( Confirmed by Revov Technical Department )
Internal Resistance: <20m
Size (Length x Width x Height): 500mm x 235mm x 220mm
Weight: 23kg
Ex-factory Capacity SOC: Approx. 50% SOC
Discharge Temperature: -20°C — 60°C
Charge Temperature (must be reduced at 0°C — 5°C): 0°C — 45°C
Recommended Storage Environment: 15 — 45°C @ 75% SOC
Cycle Storage: @ 50% 56C within 6 months

Electrical Characteristics & Test Condition
- Nominal Capacity: <200Ah
- Internal Impedance: <40m
- Short Circuit Protection under and over Voltage Protection: Auto Cutoff Load when Short Circuit

- MAX 2 x batteries in series for 24V
- MAX 4 x batteries in parallel in 12V system only
