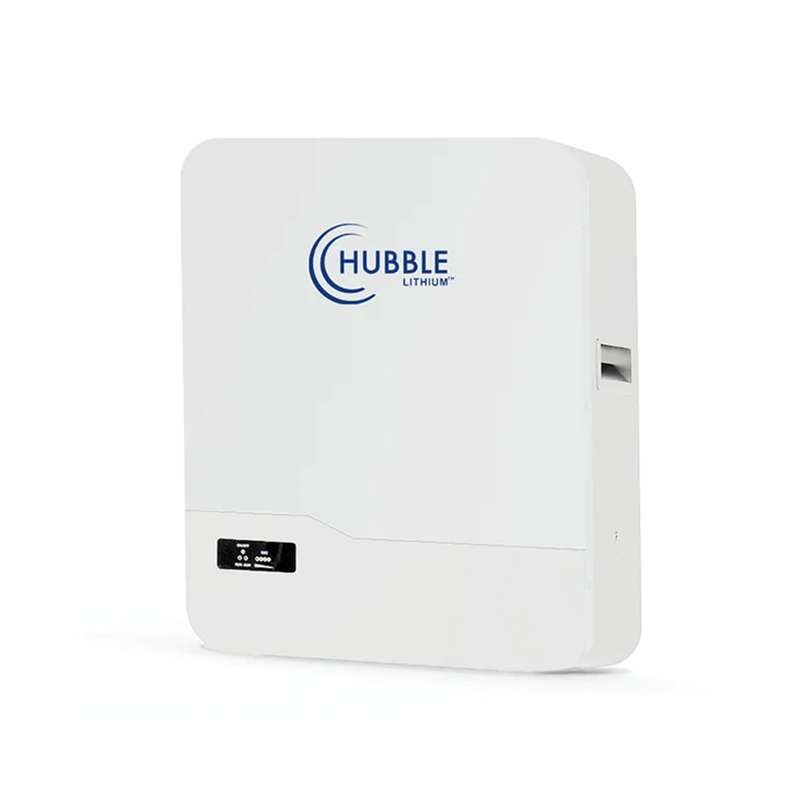

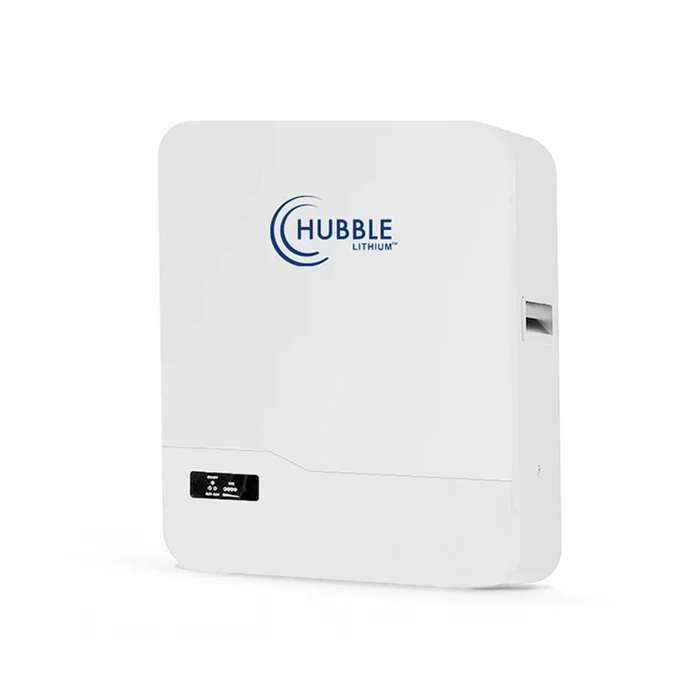

Hubble Lithium AM-5 5.12kWh 51.2V LifePO4 Battery - 10 Year UNLIMITED Cycles Warranty (upgraded v...

* Please note - delivery will take 1-2 days extra to any area outside of Gauteng

* Please note - an additional charge of R395 shipping applies owing to the weight/dimensions of the item

* Collection from our Johannesburg office will be at no additional charge

10 Year warranty terms: https://www.hubblelithium.co.za/warranties

Features

- Low self discharge
- High cycle and service Life
- 1C High performance lithium battery
- Easy wall mount or shelf rack installation
- Excellent high temperature performance
- Advanced BMS with current limiting function
- Compatible with most inverters and chargers
- High energy density and conversion efficiency
- Complete with integrated Battery Management System
- Hubble Cloudlink integration ready for cloud monitoring
- Heavy duty side handles for easy handling and mounting on the wall
- Built in protection for over-charge, over-discharge & over-temperature
- CAN Bus, fully integrates and communicates with leading Inverter brands

• ***INCLUDES Mounting Brackets**
• DC Cables are NOT included, link here to cable pack: https://www.geewiz.co.za/cabling/15976-25mm-flex-cable-set-of-positivenegative-15m-length-for-dc-batteries.html

Specifications

- Model: Hubble AM-5
- Rated Capacity (5HR): 100 Ah
- Nominal Voltage: 51.2 V
- Design Capacity: 5.12 KWH
- Equalized Charge Voltage: 55.2 V
- Max. Continuous Charging Current: 100 A
- Max. Continuous Discharging Current: 100 A
- C Rating: 1.0 C
- Weight: Approx. 51 Kg
- Monitoring: Optional Cloudlink
- Parallel: Parallel connection up to 8 packs with full communications
- Dimensions (WxDxH) mm 509.62mm x 173mm x 599.67mm
- Ports: CAN-bus, Battery Link Ports
- Cells New Li-ion Prismatic Cells
- Design Life +/- 15 Years
- Cycle Life: @ 1C Unlimited cycles within the Hubble Lithium 10 year warranty. Ts & Cs Apply.
- Certification: CE IEC UN38.3
- Outer Package Material: White bake lacquer steel case
- Operating Temperature :Charging: -10 to +50°C | Humidity: 15% to 75% | Storage: 10 to +50°C
- Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
