Reyee 5GHz WiFi 5 Gigabit 15dBi 120° integrated Sector | RG-EST450G

Reyee's RG-EST450G is a Dual Band, WiFi 5 sector antenna featuring a 15dBi antenna, 3x Gigabit Ethernet Ports, a maximium throughput of up to 1017Mbps over its 5GHZ (2x2 MIMO) radio and a 5km range when paired with the RG-EST350G and a 3km range when paired with the RG-EST330FP. The dedicated 2.4GHz management radio allows for easy setup via the Reyee mobile app.

It supports Ruijie's smart networking feature, which, with Ruijie's free cloud service, allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications:

Antenna Gain: 2.4GHz: 2dBi 5GHz: 15dBi
Beam-width: 120°
Data Rate: 2.4GHz: 150Mbps ; 5GHz: 867Mbps

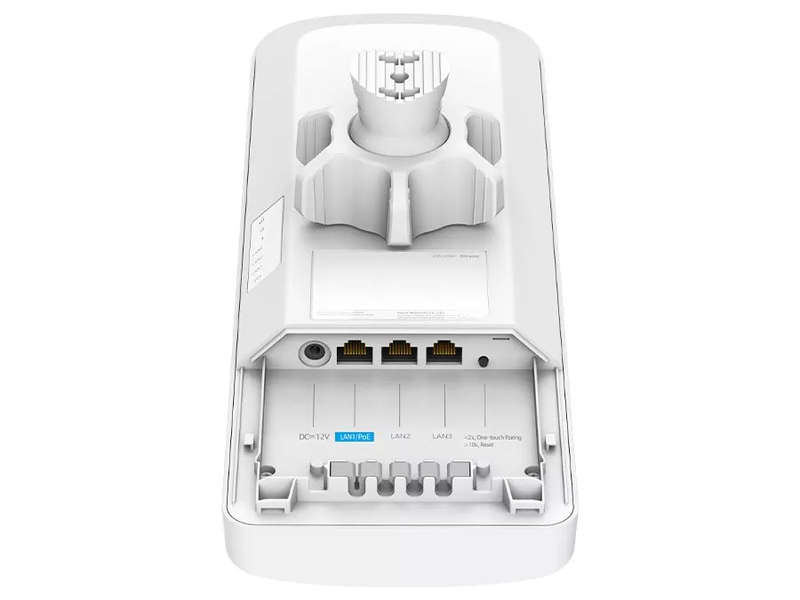

Ethernet Ports: 3x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 12W
Mounting: Wall or Pole Mount
Operating System: Reyee
Operating Temperature: -30°C ~ 65°C
PoE Input: 24V Passive PoE or 802.3af/at
PoE Output: None
Power Input: 12V DC ; 24V Passive PoE or 802.3af/at
Serial Interface: None
SFP Ports: None
SIM Slots: None
Supported Voltage Range: 12V/ 1.2A; 24V/ 0.6A
USB Ports: None

Dimensions: 355 x 124 x 48 mm
Weight: 830g
