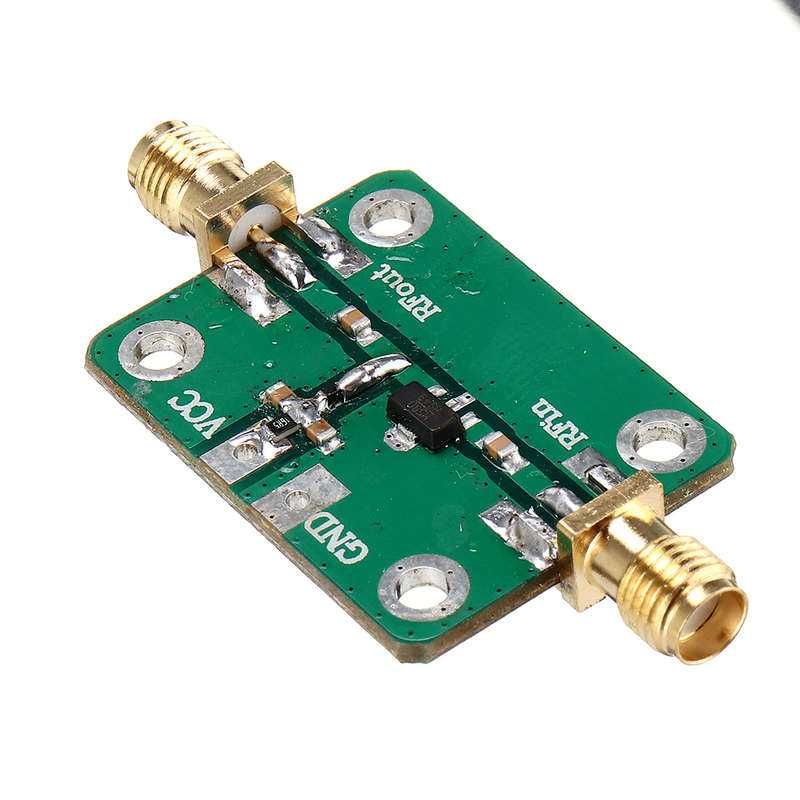

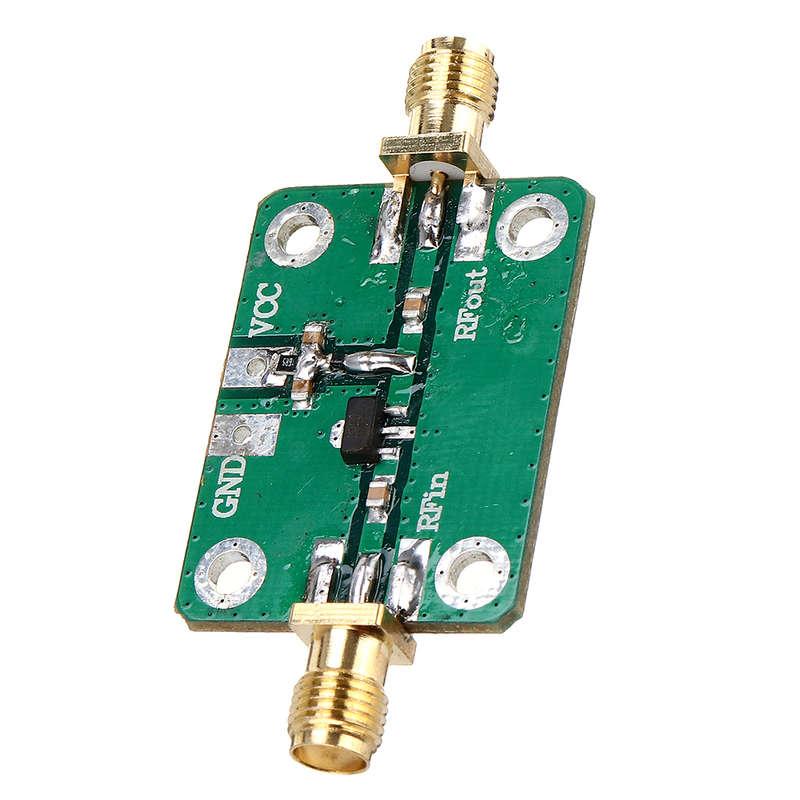

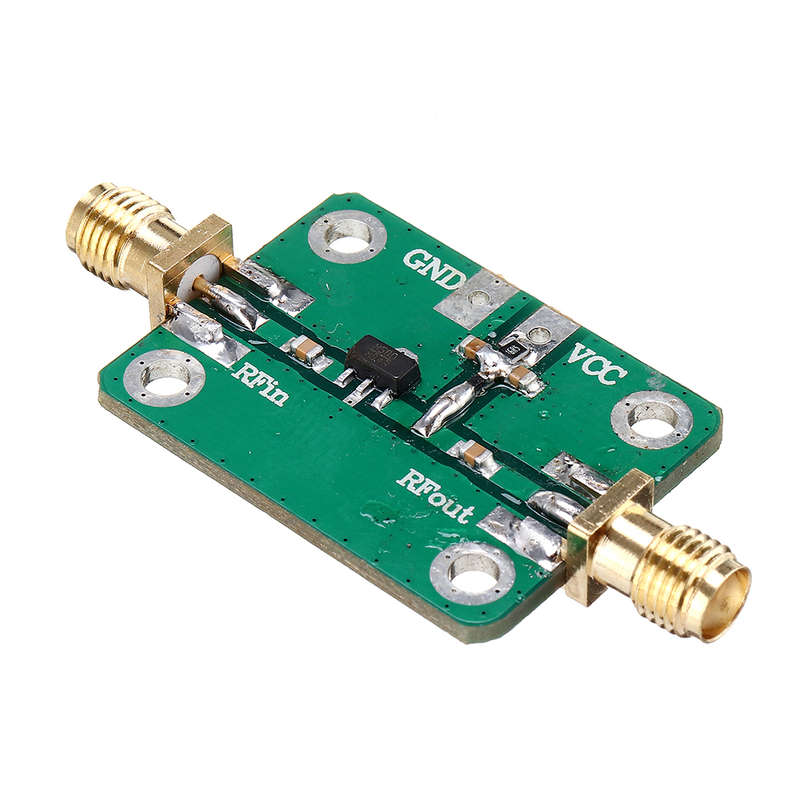

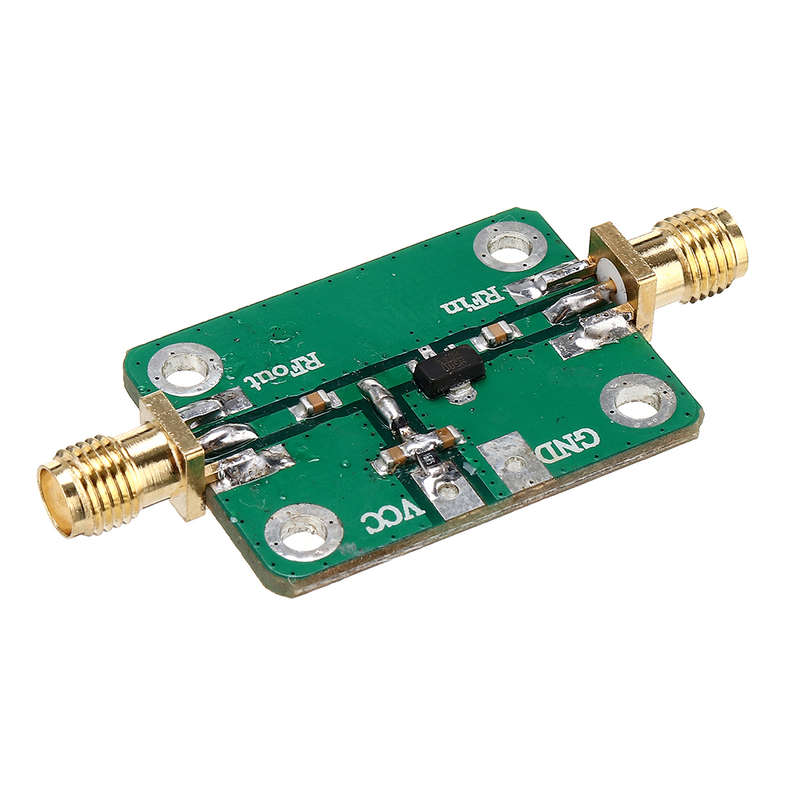

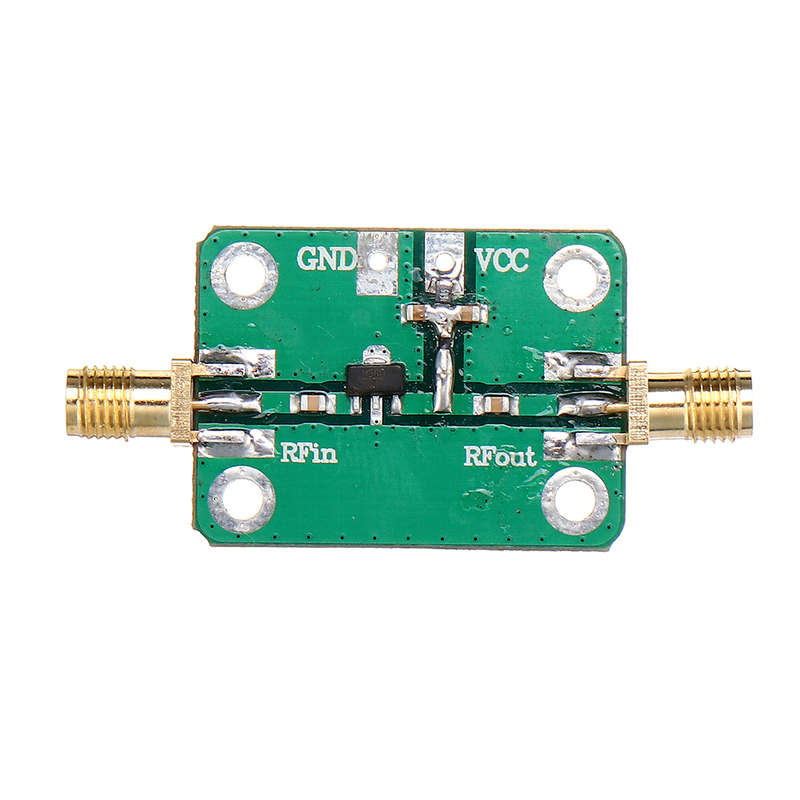

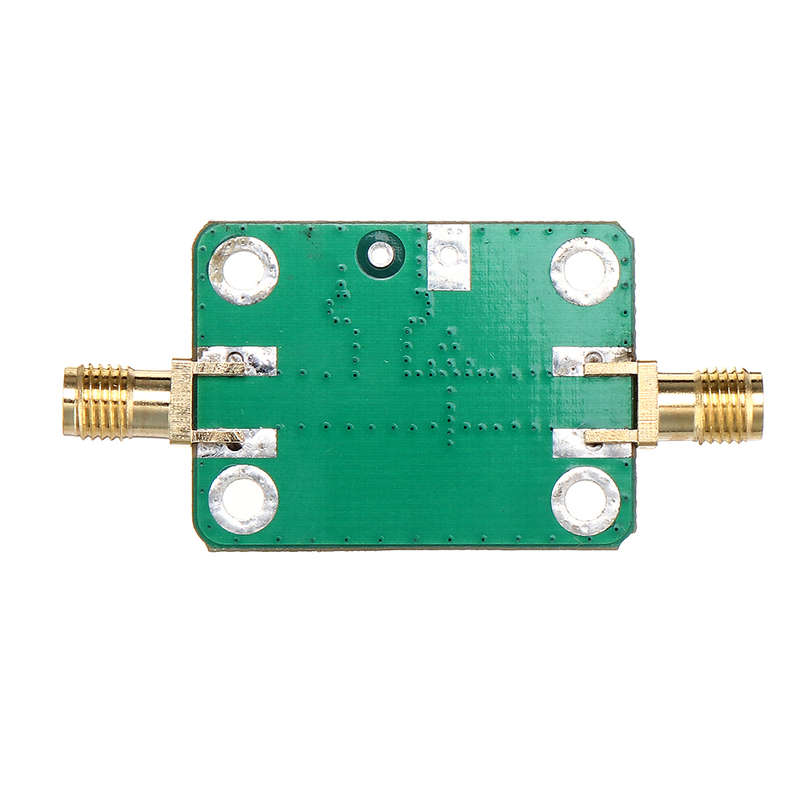

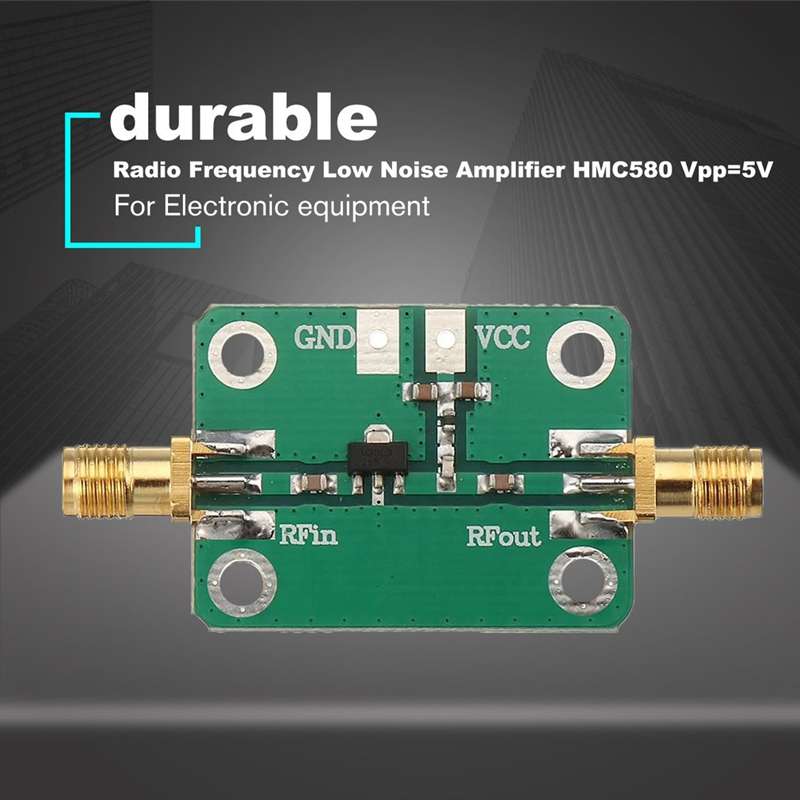

RF Radio Frequency Low Noise Amplifier Board HMC580 Vpp 5V for Short Wave FM Radio Remote Control Re

Description:

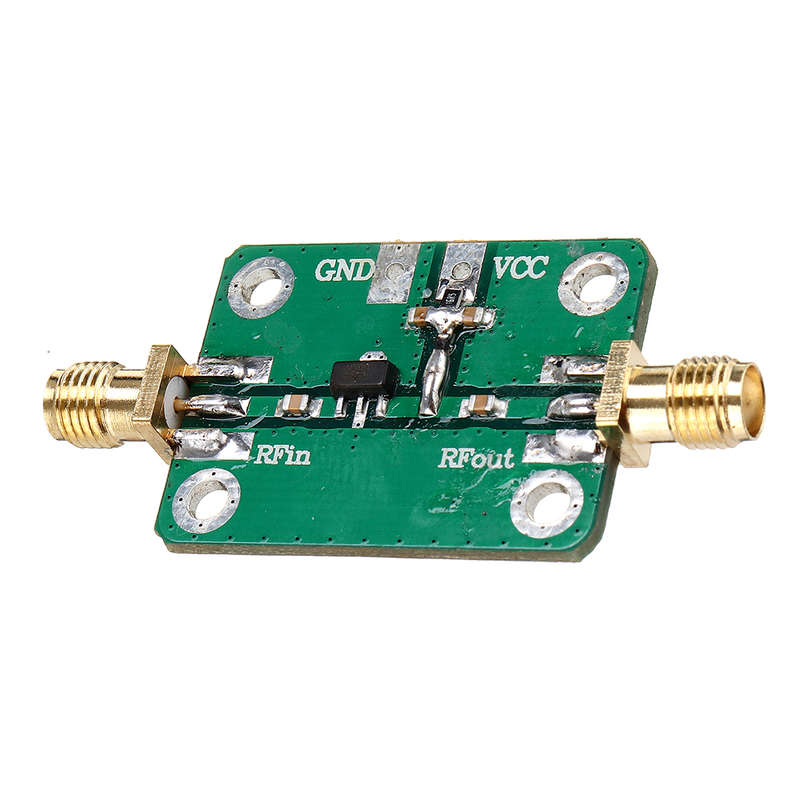

1. This is a RF Radio Frequency Low Noise Amplifier Board HMC580 Vpp=5V.
2. Compact size,easy to install.

Features:

1. The amplifier is designed with reference to the official data of HMC580.
2. With the advantages of wide frequency range, stable gain, high output power +22dBm@1dBP, and so on.
3. This product can be applied to various rf receive front-end and increases communication distance.
4. It`s low in properties can be a perfect match various circuits as perfect amplifier buffer amplifiers.
5. Used for Short wave, FM radio, remote control receiver, such as cable TV signal amplifier need low noise rf signal amplification.

Specifications:

Material: PC + metal
Color: Green
Working frequency: 1-1000MHz
Amplification gain: 20dB (typical value)
Noise coefficient: 2.8dB (typical value)
Amplifier gain: as shown in the following figure
F= 5MHz, gain=24dB
F= 30Mhz gain=23dB
F= 100MHz gain=23dB
F= 150Mhz gain=23dB
F= 420MHz gain=21dB
F= 750MHz gain=19dB
F=1000MHz gain=17dB
Maximum output power: +22dBm (170mW) @1dB compression point
Working current: 88mA (5V)
Power supply voltage: 3.3-5.5V (DC)
System impedance: 50 ohm

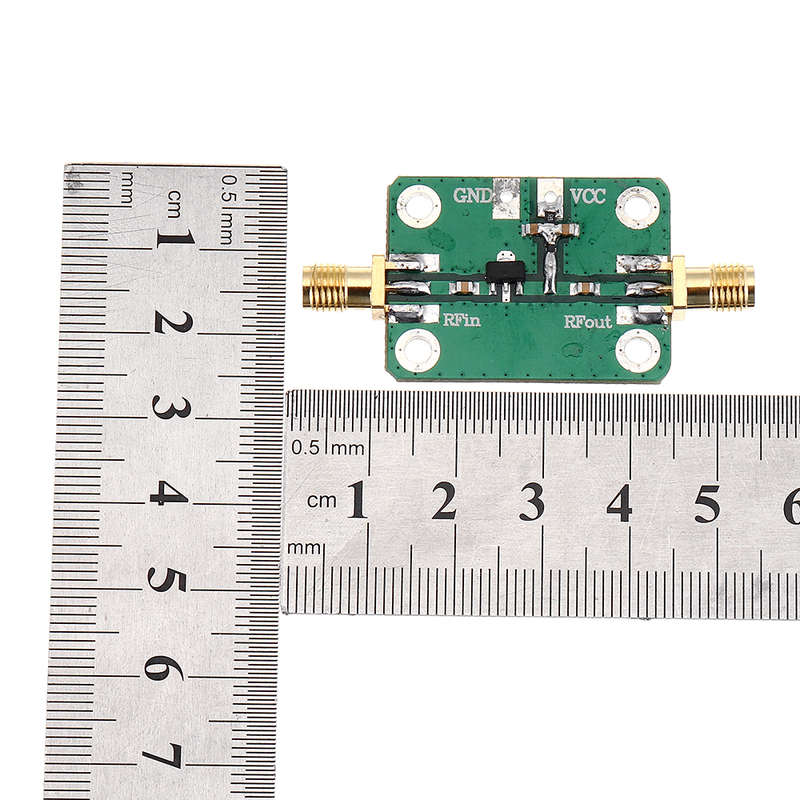

Size:35mm/1.37in x 20mm/0.78in

Package included:

1 x Amplifier Board
