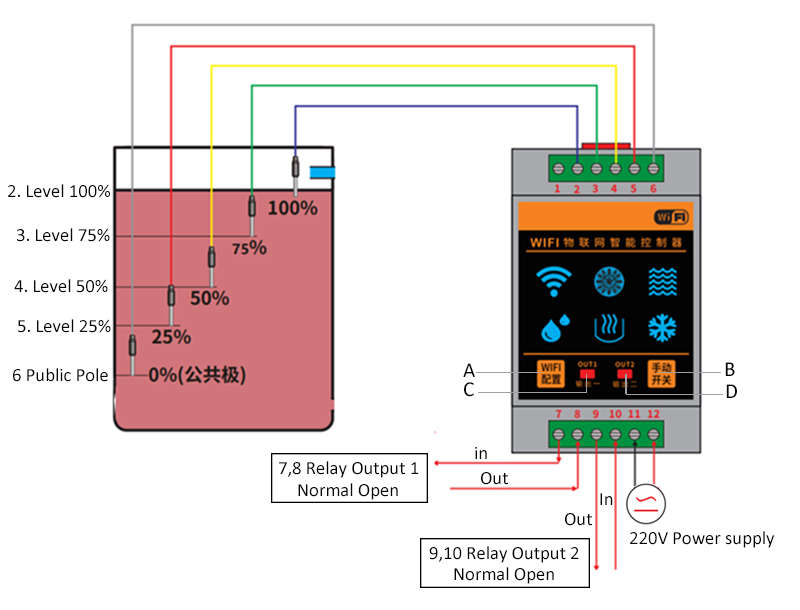

Specification: *Size of controller: 89mm x 55mm x 44mm *Power voltage: AC220V *Power consumption: less than 2W *Limited running time of relay output 1: 0 to 720 minutes settable via App. Each setting progresses is 5 minutes, 0, 5, 10, 15, .............710, 715, 720 *Time delay setting of relay output 1: 0 to 30 seconds settable via App. *Relay outputs: two relay outputsnormal open The contact current capacity is 10A for resistive load and 2A for inductive load. It can control 2000W resistive load or 500W motor /water pump. Larger loads require AC contactor expansion. *Working environment: -10a to +50a *WIFI 2.4GHZ b/g/n, not support 5G WIFI.

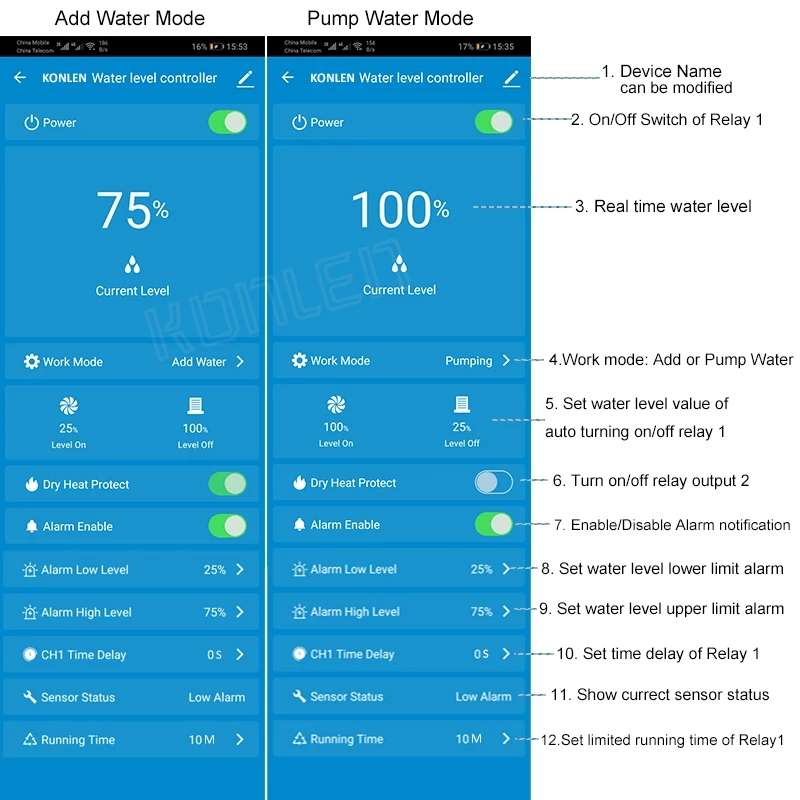

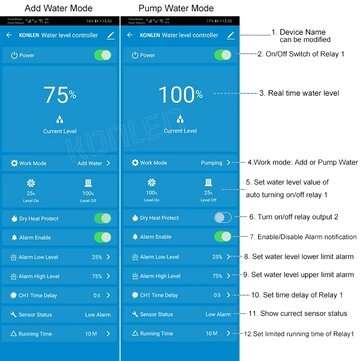

MainFeatures: 1.Real-TimeSupervision:APPcandisplaythecurrentwaterlevel,
2.Turnon/offequipment(relay1)remotelyviaApp.Userscanalsocontroliton/offbymanualswitchbuttonB.

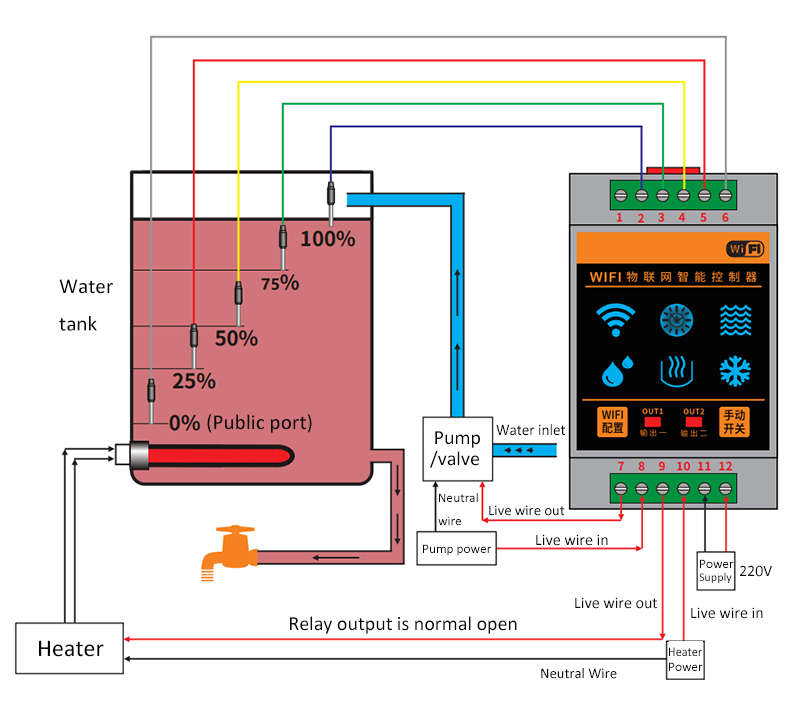

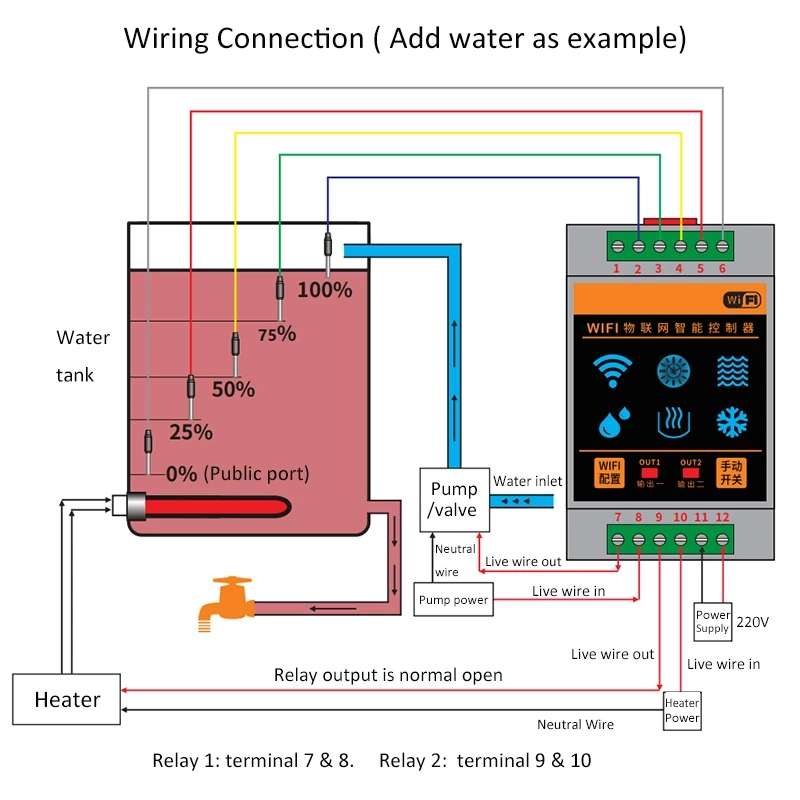

3.Tworelayoutputs:Relay1controlwaterlevel,Relay2fordryheatingprotection.

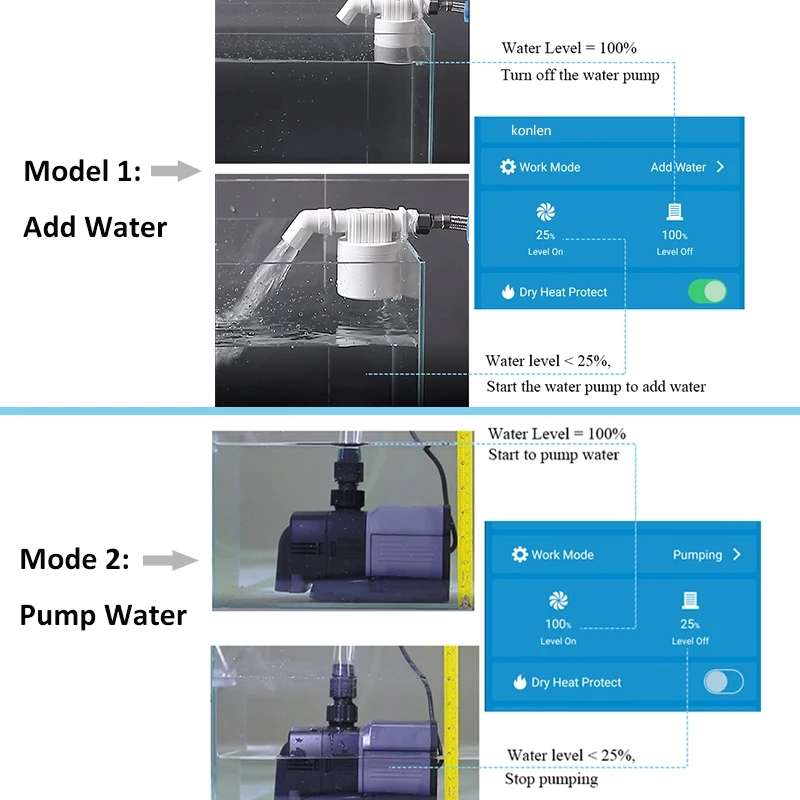

4.PresetAddwaterorPumpwaterworkingmode,canautoturnon/offrelay1whenitreachestothepresetwaterlevelvalue.
5.SetupperandLowerlimitvalueofwaterlevelalarmviaAPP,real-timepushalarmnotificationtousers`smartphone.
6.Cansetrelay1runningordelayworkingtime.

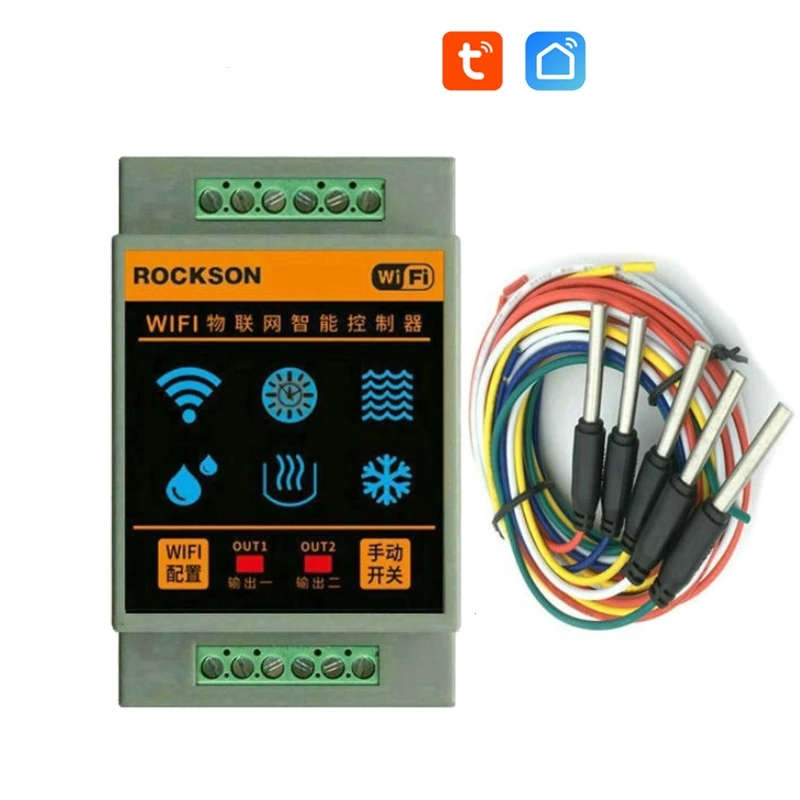

Package included: 1 x English manual instruction 1 x wifi water level controller 5 x water level sensors with different cable lenth.

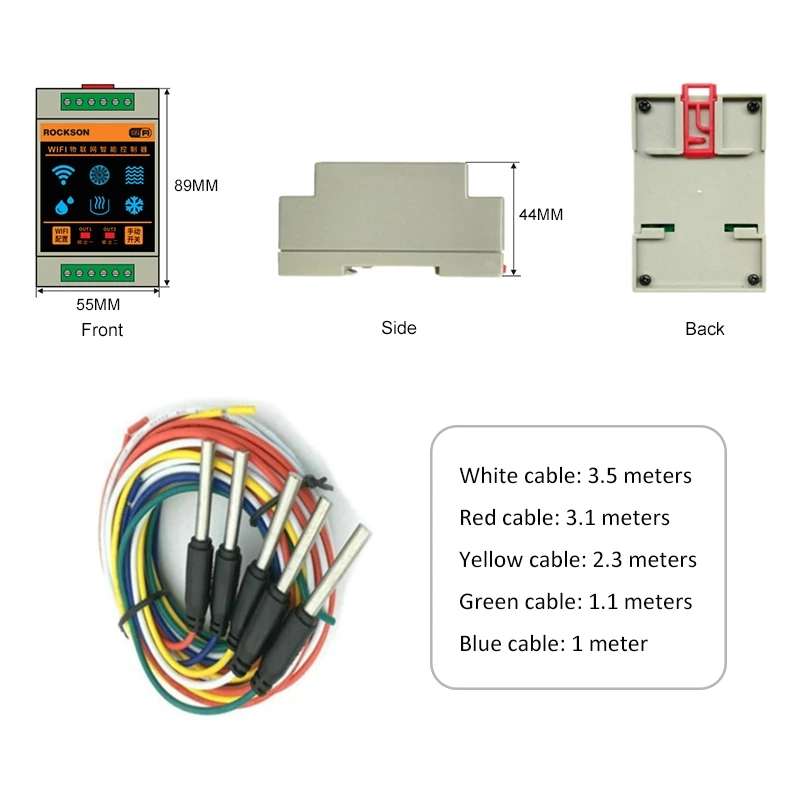

Remark: White cable: 3.5 meters Red cable: 3.1 meters Yellow cable: 2.3 meters Green cable: 1.1 meters Blue cable: 1 meter
