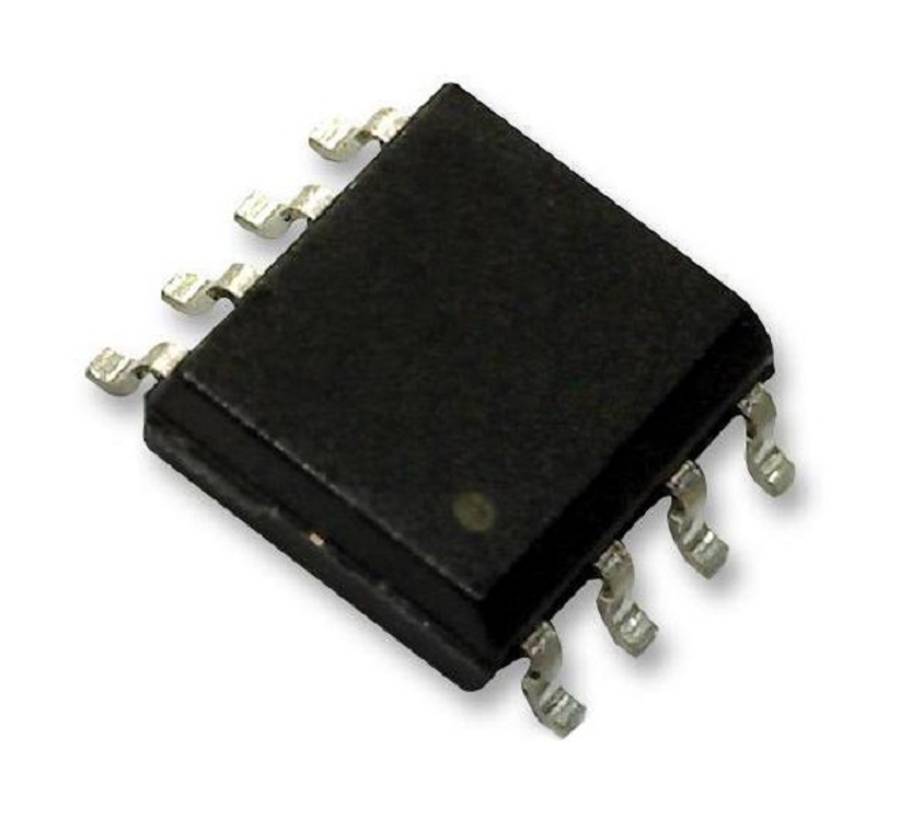

Rohm (BD6211F-E2) H-Bridge Driver, 3V to 5.5V supply, 1A/1 Output, SOP-8

Product OverviewThe BD6211F-E2 is a single channel DC brush motor driver in 8 pin SOP package.This highly efficient H-bridge driver is used for low power consumption designs.The MOS transistors in output stage allow PWM speed control. The integrated VREFvoltage control function allows direct replacement of discontinued motor driverICs.Maximum output current of 1AMaximum rated voltage of 7VSupply voltage range of 3V to 5.5VBuilt-in one channel configurationVREF voltage setting pin enables PWM duty controlCross conduction prevention circuitOvercurrent, overvoltage, thermal shutdown and undervoltage lockout protectionOutput on-resistance of 0.5ohm at IOUT=1.0A (vertically total)PWM input frequency range from 20KHz to 100KHzOperating temperature range from -40°C to 85°CApplicationsMotor Drive & Control, Consumer Electronics, Portable DevicesProduct InformationMotor Type: DC BrushNo. of Outputs: 1OutputsOutput Current: 1ADriver Case Style: SOPNo. of Pins: 8PinsSupply Voltage Min: 3VSupply Voltage Max: 5.5VOperating Temperature Min: -40°COperating Temperature Max: 85°C
