RS232 TO RS485

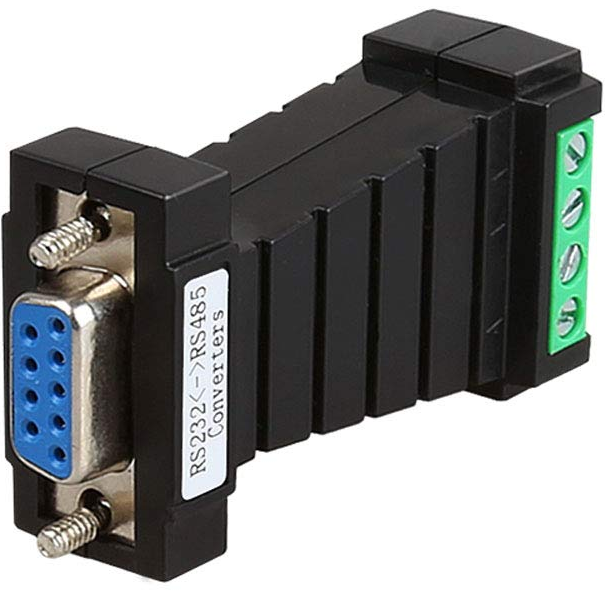

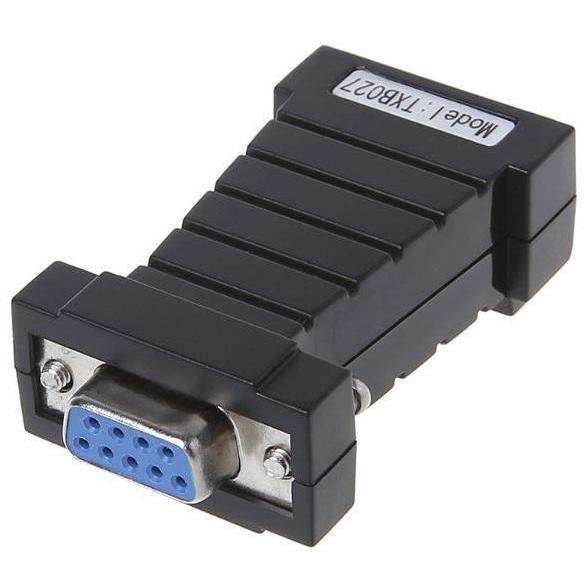

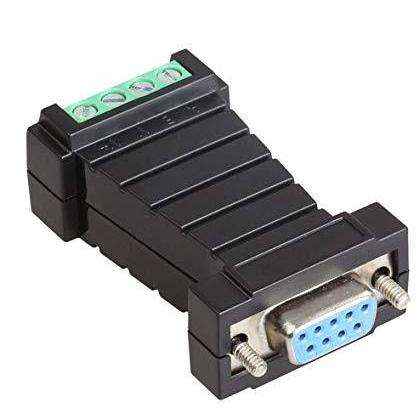

RS232 TO RS485 - TXB027

Model number_ TXB027

Chipset: ZT323+ZT485

Port number_ 1 x fe-male com port,1 x RS485 port

Standard: compatible with RS232 and RS485 standard

LED Indicator: NA

Baud rate_ 300bps - 115200bps

Dimension: 57 x 34 x 19mm

Power Input_ No need or DC9V

Power Consumption_  Max0.15W

Environment

Operating Temperature_ -10 -55

Relative Humidity: 10%-90% (non-condensing)

Storage Temperature_ -40 - 85

Relative Humidity_ 5%-90% (non-condensing)

https://www.micropointsa.co.za/assets/documents/txb027/datasheet/txb027.pdf
