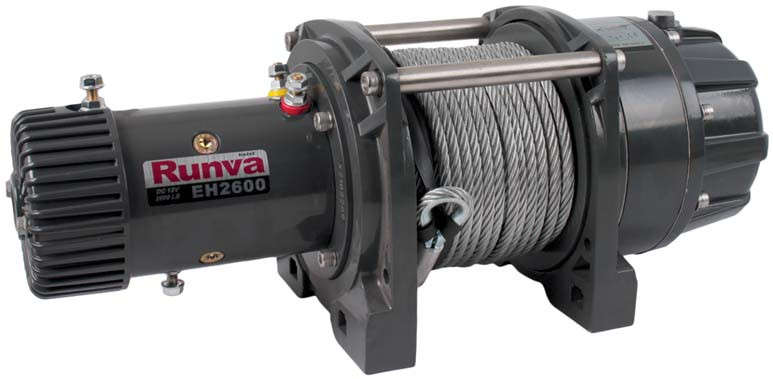

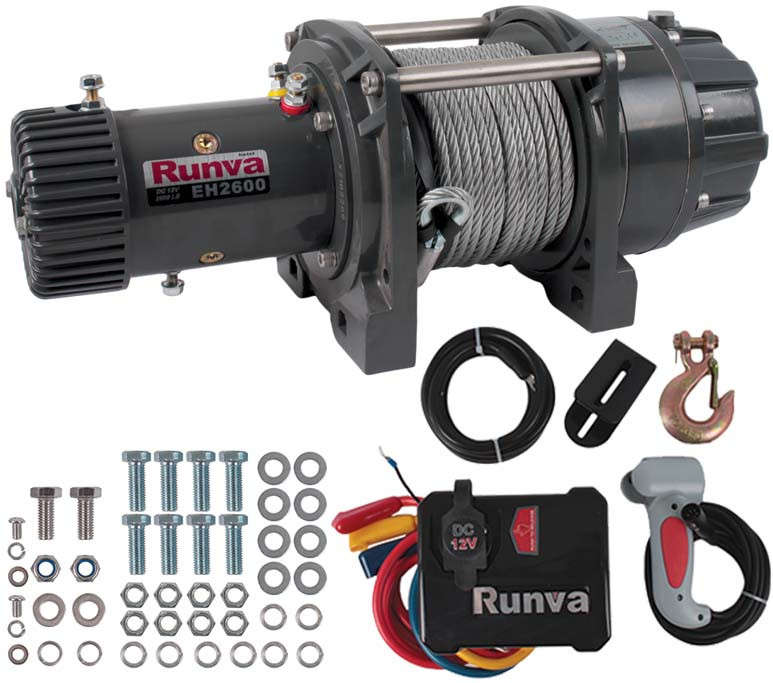

Runva 2600Lb (1180kg) 12 Volt Electric Hoist
Rated line pull: 2600 lbs (1180 kgs)
Motor: Permanent Magnet - 12V: Input:5.5kW/7.4hp / Output:2.9kW/3.9hp
Brake: Automatic screw cone/ratchet-paw
Gear reduction ratio: 370:1
Cable(DiaL): 6.0mm14.5m

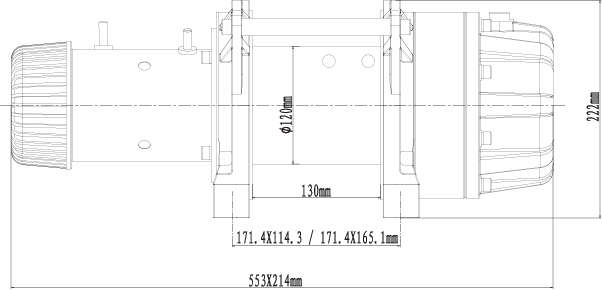

Drum size(DiaL): 120mm130mm

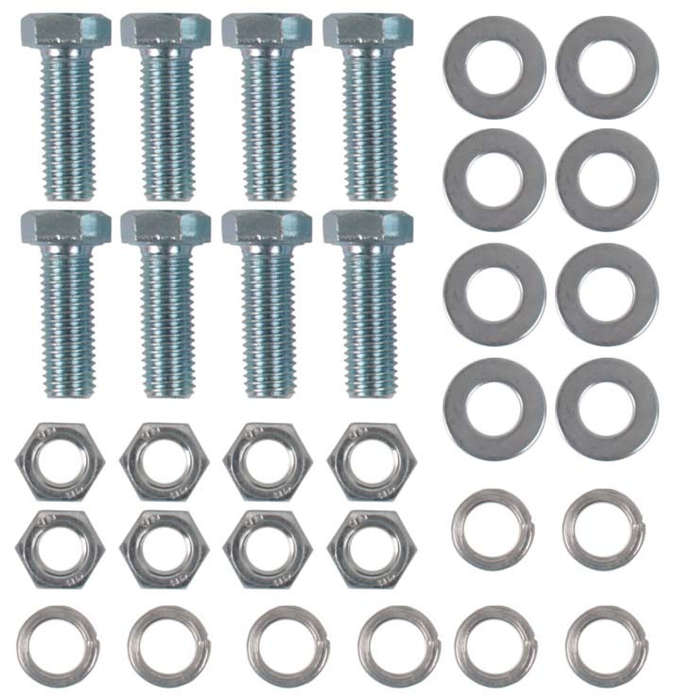

Mounting bolt pattern: 171.4mm114.3mm)
Net weight: 55.5kgs
12V DC PERFORMANCE SPECS (first layer) | |||
Line Pull | Line Speed | Motor | Pull by layer |
Lbs.(kgs) | Ft/min. (M/min.) | Current | layer/Lbs.(kgs) |
0 | 24.6(7.5) | 60amps | 1/2600 (1180) |
1000 (453) | 19.4(5.9) | 80amps | 2/2253(1022) |
2000 (907) | 14.8(4.5) | 100amps | 3/1988(901) |
2600 (1180) | 12.5(3.8) | 125amps |
