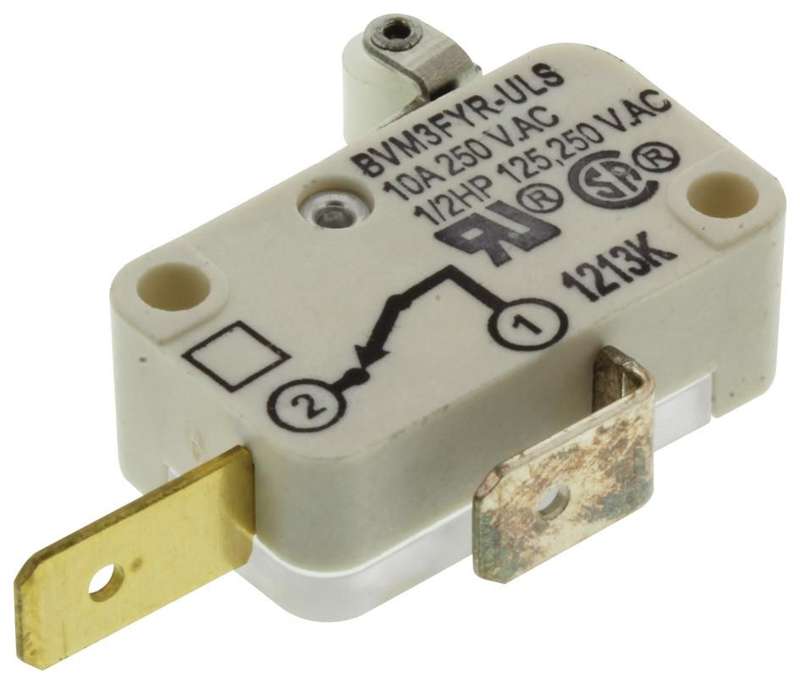

Saia Burgess (BVM3FYR) Microswitch, Miniature, Roller Lever, SPST-NC

Microswitch, Miniature, Roller Lever, SPST-NC, Quick Connect, Solder, 10 AProduct InformationMicroswitch Type: MiniatureMicroswitch Actuator: Roller LeverContact Configuration: SPST-NCSwitch Terminals: Quick Connect, SolderContact Current Max: 10AContact Voltage DC Nom: -Product Range: BVM3Contact Voltage AC Nom: 250VACOperating Force Max: 5NProduct OverviewThe BVM3FYR is a single-pole single-throw (SPST) Positive Action Switch with6.3mm Faston terminals, NC contact and a roller lever actuator. The BVM3 seriesminiature safety interlock switch for use in domestic and industrialapplications where there is a clean, dry environment. The mounting holes on theswitches comply with the required international standard for miniature switcheswhich makes them ideal replacements for snap-action switches in applicationsrequiring positive action switching. All models feature a contact gap of >3mm atfull travel.Glass fibre reinforced polyamide housingSide mountingIP40 Protection ratingUL approval-10 to +85°C Temperature rangeApplicationsIndustrial
