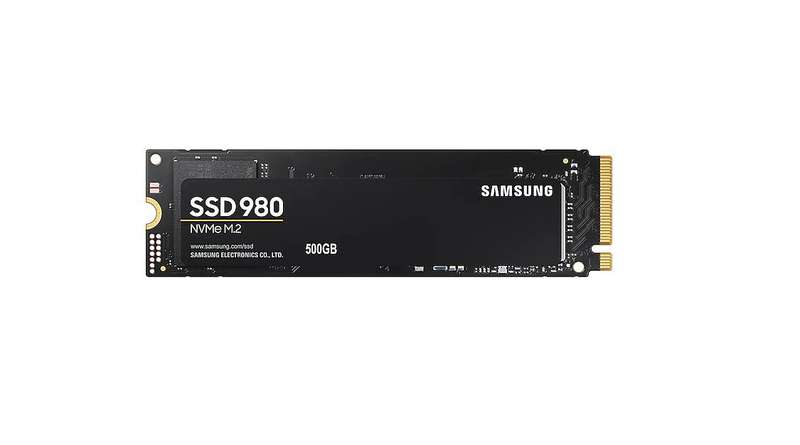

Samsung 980 500GB NVMe M.2 SSD
SAMSUNGMZ-V8V500BW
Upgrade to breathtaking NVMe speed
It's time to maximise your PC's potential with the 980. Whether you need a boost for gaming or a seamless workflow for heavy graphics, the 980 is the smart choice for outstanding SSD performance and it's all backed by an NVMe interface and PCIe 3.0 technology.
Packed with speed
Get right to it. The 980 harnesses nearly all the speed advantages of PCIe 3.0 through HMB technology and dramatic NVMe efficiency. The DRAM-less design delivers exceptional value, achieving breakneck sequential read/write speeds up to 3,500/3,000 MB/s*, over 6.2x the speed of SATA SSDs.
Specifications
General Feature
Application
Client PCs
Capacity
500GB
Form Factor
M.2 (2280)
Interface
PCIe Gen 3.0 x4, NVMe 1.4
Dimension (WxHxD)
80.15 x 22.15 x 2.38 (mm)
Weight
Max 8.0 g Weight
Storage Memory
Samsung V-NAND 3-bit MLC
Controller
Samsung Pablo Controller
Cache Memory
HMB(Host Memory Buffer)
Special Feature
TRIM Support
Supported
S.M.A.R.T Support
Supported
GC (Garbage Collection)
Auto Garbage Collection Algorithm
Encryption Support
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
WWN Support
Not supported
Device Sleep Mode Support
Yes
Performance
Sequential Read
Up to 3,100 MB/s
Sequential Write
Up to 2,600 MB/s
Random Read (4 KB, QD32)
Up to 400,000 IOPS
Random Write (4KB, QD32)
Up to 470,000 IOPS
Random Read (4 KB, QD1)
Up to 17,000 IOPS
Random Write (4 KB, QD1)
Up to 54,000 IOPS
Environment
Average Power Consumption (system level)
Average: 4.3 W*Maximum: 5.9 W (Burst mode)
Power consumption (Idle)
Max. 45 mW
Allowable Voltage
3.3 V ± 5 % Allowable voltage
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
Operating Temperature
0 - 70 ? Operating Temperature
Shock
1,500 G & 0.5 ms (Half sine)
What's in the box
1 x SSD
