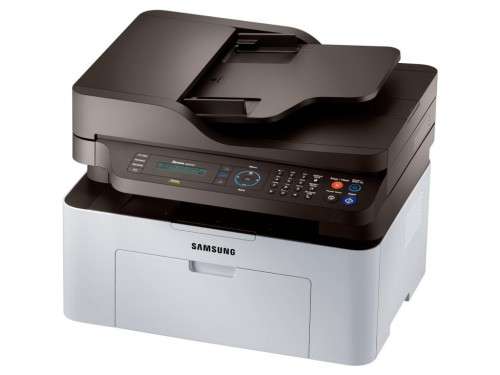

The Samsung Mono Multifunction Xpress M2070F printers combine ease of operation with high performance at an affordable price. It is ideal for today’s cost-conscious SOHO work anywhere, anytime business environment.
Functions
Functions
Print, copy, scan, fax
Printing specifications
Print speed black:
Normal: Up to 20 ppm
First page out (ready)
Black: As fast as 8.5 sec
First page out (ready)
Black: As fast as 8.5 sec
Duty cycle (monthly, A4)
Up to 10,000 pages
Duty cycle (monthly, A4)
Up to 10,000 pages
Print technology
Laser
Print quality black (best)
Up to 1,200 x 1,200 dpi
Print Resolution Technologies
ReCP
Print languages
SPL
Display
2-line LCD (16 characters per line)
Processor speed
600 MHz
Automatic paper sensor
No
Replacement cartridges
Standard Toner Cartridge (~ 1,000 yield) MLT-D111S
High yield Toner Cartridge (~ 1,800 yield) MLT-D111L
Connectivity
Mobile printing capability
No
Network capabilities
None
Wireless capability
No
Connectivity, standard
Hi-Speed USB 2.0
Minimum system requirements
Windows`ae XP (SP3) (32-bit)or newer, 933 MHz processer or higher, 128 MB RAM, 1.5 GB HD space, CD-ROM or Internet, USB or Network connection
OSX 10.5 or newer
Internet
USB or Network connection
1 GB HD space
1 GB RAM
Compatible operating systems
Windows`ae: XP (32/64 bit), 2003 Server (32/64 bit), Vista (32/64 bit), 2008 server (32/64 bit), 7 (32/64 bit), 2008 Server R2, 10 (32/64 bit), 2012 Server, 2016 Server
MAC OS 10.5 - 10.11
Linux: Red Hat Enterprise Linux (5, 6, 7), Fedora (13, 14, 15, 16, 17, 18, 19, 20, 21, 22), openSUSE (11.3, 11.4, 12.1, 12.2, 12.3, 13.1, 13.2), Ubuntu (10.04, 10.10, 11.04, 11.10, 12.04, 12.10, 13.04, 13.10, 14.04, 14.10, 15.04), SUSE Linux Enterprise Desktop (11, 12), Debian (6, 7, 8), Mint (13, 14, 15, 16, 17)
Unix: Sun Solaris 9, 10, 11 (x86, SPARC), HP-UX 11.0, 11i v1, 11i v2, 11i v3 (PA-RISC, Itanium), IBM AIX 5.1, 5.2, 5.3, 5.4, 6.1, 7.1 (PowerPC)
Memory specifications
Memory
128 MB
Maximum memory
128 MB
Paper handling
Paper handling input, standard
150-sheet input tray
40-sheet Automatic Document Feeder
Paper handling output, standard
100-sheet output bin
Maximum output capacity (sheets)
Up to 100 sheets
Duplex printing
Manual (driver support provided)
Media sizes supported
A4, A5, B5 (ISO), B5 (JIS), Oficio, Envelope (DL, C5)
Media sizes supported
Letter, Legal, Executive, Folio, Oficio, Envelope (No.10, Monarch)
Media sizes, custom
3 x 5 to 8.5 x 14 in
Media sizes, custom
76 x 127 to 216 x 356 mm
Media types
Plain, Thick, Thin, Cotton, Color, Preprinted, Recycled, Lables, CardStock, Bond, Archive, Envelope
Media weight, supported
60 to 163 g/m`b2
Media weight, supported
16 to 43 lb
Media weights, supported ADF
60 to 105 g/m`b2
Media weights, supported ADF
16 to 28 lb
Scanner specifications
Scanner type
Flatbed, ADF
Scan file format
PDF, JPG, TIFF
Scan resolution, optical
Up to 1,200 dpi (flatbed); Up to 600 dpi (ADF)
Scan size, maximum
216 x 297 mm
Scan size, maximum
8.5 x 11.7 in
Scan size (ADF), maximum
216 x 356 mm
Scan size (ADF), maximum
8.5 x 14 in
Scan size (ADF), minimum
145 x 145 mm
Scan size (ADF), minimum
5.7 x 5.7 in
Scan speed (normal, A4)
Up to 17 ipm (black)
Up to 6 ipm (color)
Automatic document feeder capacity
Standard, 40 sheets
Digital sending standard features
Scan to WSD
WSD Scan
PC Scan
Scan input modes
Front-panel copy, fax, Samsung Scan software
user application via TWAIN or WIA
Copier specifications
Copy speed (normal)
Black: Up to 20 cpm
Copy resolution (black text)
Up to 600 x 600 dpi
Copy reduce / enlarge settings
25 to 400%
Copies, maximum
Up to 999 copies
Fax specifications
Faxing
Yes
Fax transmission speed
33.6 kbps
Power and operating requirements
Power
110-volt input voltage: 110 to 127 VAC, 50/60Hz and 220-volt input voltage: 220 to 240 VAC, 50/60Hz
Power consumption
310 watts (Printing), 2.1 watts (Power Save), 30 watts (Ready)
Energy efficiency
ENERGY STAR`ae qualified
Operating temperature range
10 to 30`b0C
Operating temperature range
50 to 86`b0F
Recommended operating humidity range
20 to 70% RH (non-condensing)
Acoustic power emissions (ready)
3.9 B (A)
Acoustic pressure emissions bystander (active, printing)
50 dB (A)
Dimensions and weight
Minimum dimensions (W x D x H)
406 x 359.6 x 308.7 mm
Maximum dimensions (W x D x H)
406 x 421.5 x 308.7 mm
Weight
8.55 kg
Package dimensions (W x D x H)
447 x 482 x 421 mm
Package weight
11.22 kg
What`s included
What`s in the box
Power cord(s)
Black Toner Cartridge (~500 pages)
User Guide
Fax cable (AP only)
warranty card
CD
Cable included
No, please purchase USB cable separately
Software included
Samsung Common Installer, Total Uninstaller, SPL print driver, TWAIN/WIA driver, PC Fax Utility, Easy Printer Manager, Easy Document Creator, Scan OCR program, Printer Diagnostics, Printer Center, View User`s Guide, Lite SM
